Foldable inflatable boats
F38-C
Foldable inflatable boat | C-Series (PVC)
FIB-C Series (PVC)
The FIB-C Series (PVC) is the most versatile foldable boat range.
Thanks to its solid aluminium floor and rigid keel, the FIB-C Series (PVC) offers a great sturdiness with up to 1,15 tons payload capacity.
Colors

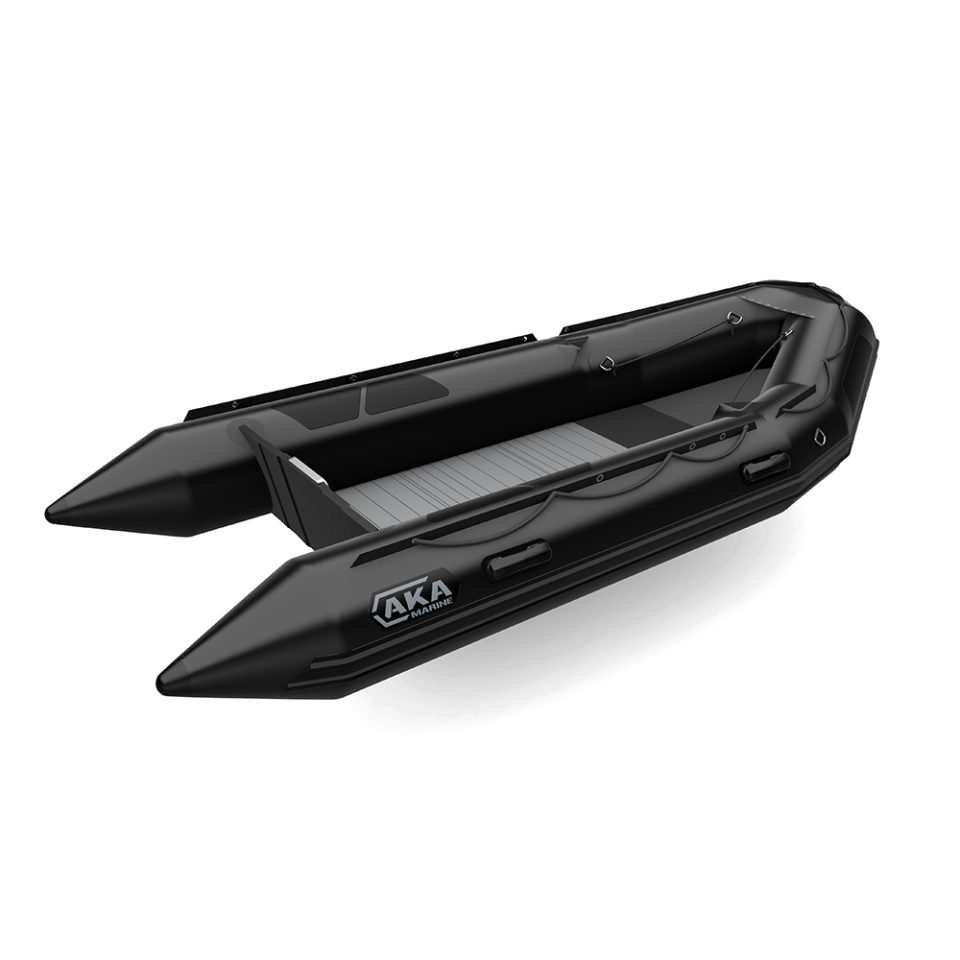

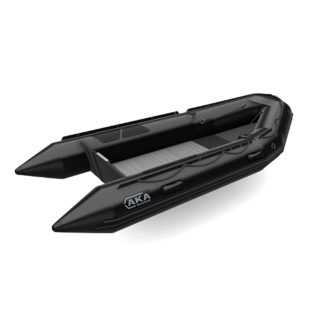

Plastomer 2*1100 dtx Black

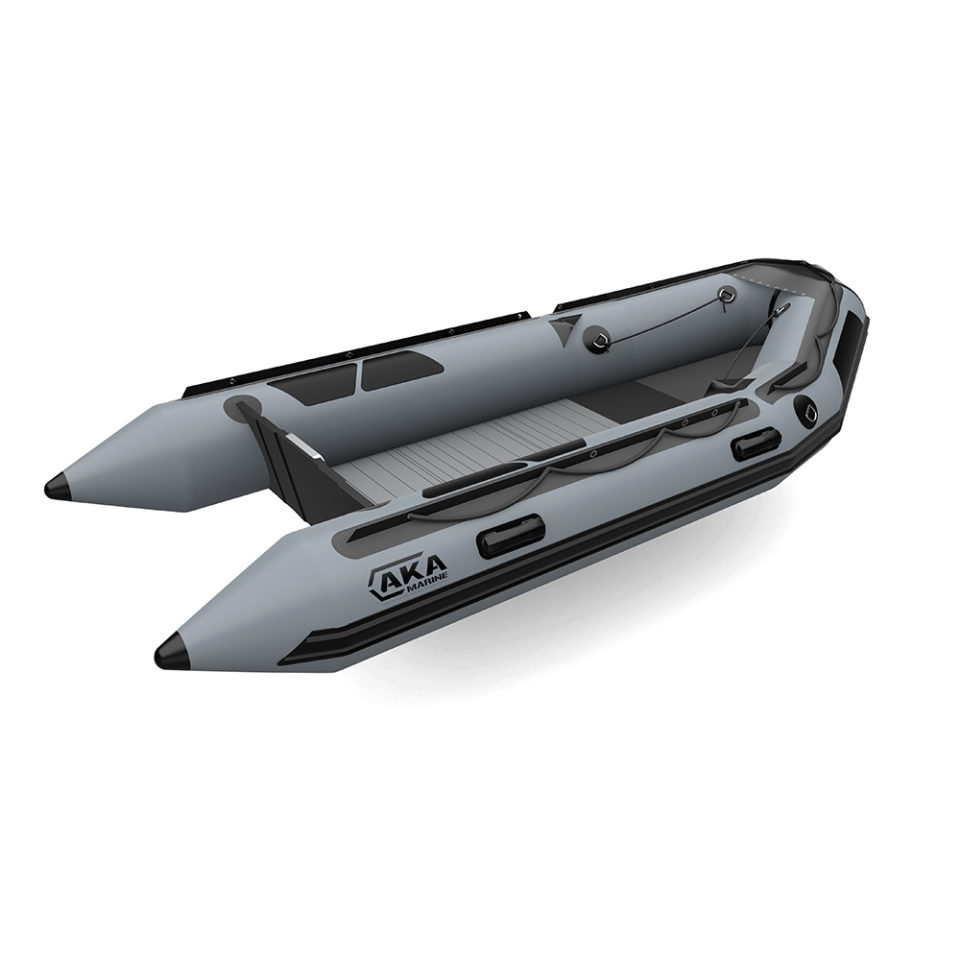

Plastomer 2*1100 dtx Medium grey

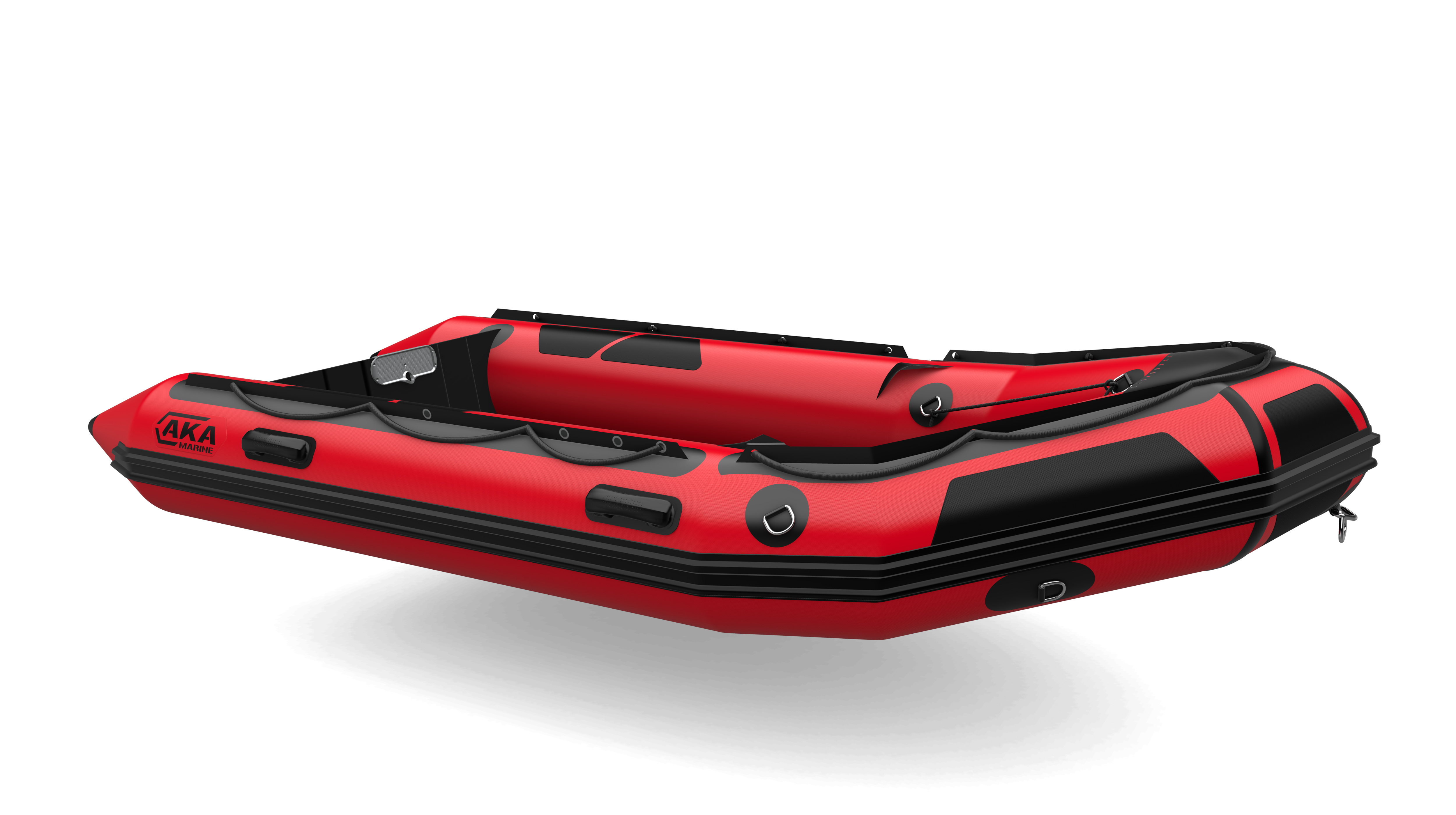

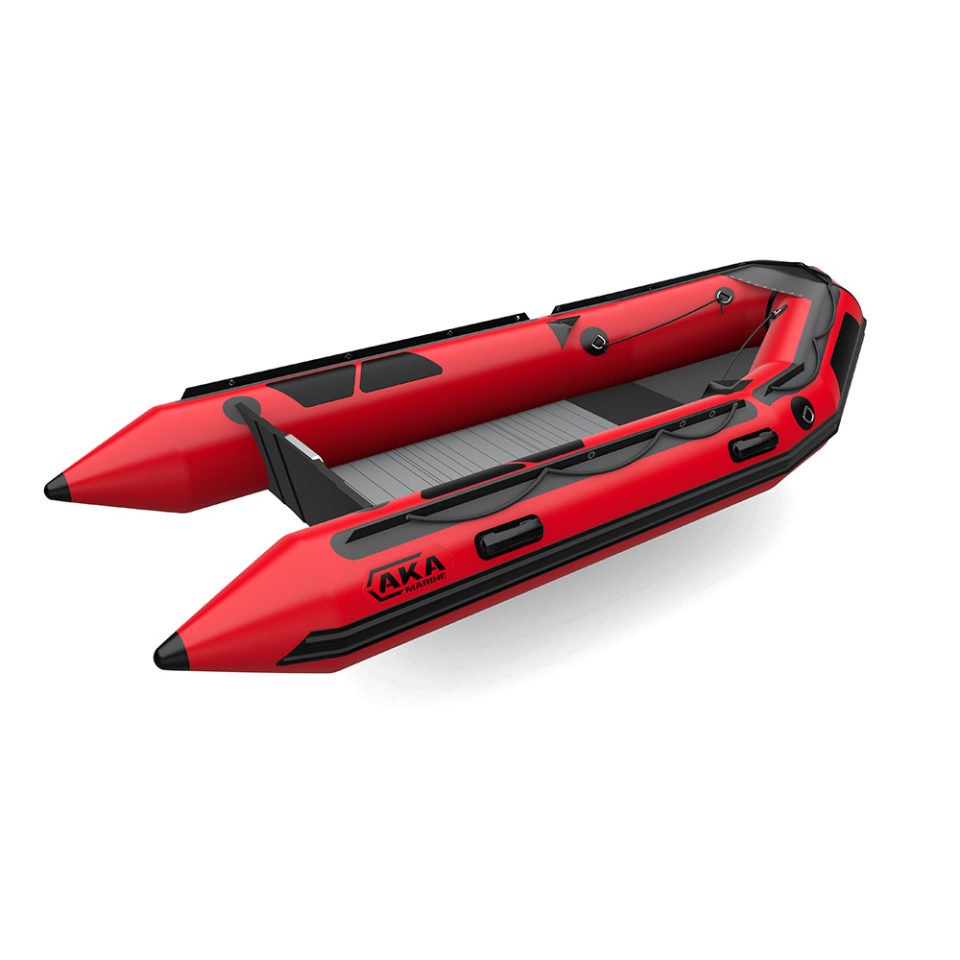

Plastomer 2*1100 dtx Red
Key features
- Foldable work boat
- Solid aluminum floor and rigid keel for maximum sturdiness
- Heavy Duty bow fender design
- Optimized keel and tube protection
- Tubes are in PVC (Thermo welding technology)
- Large tube diameter offers great payload capacity

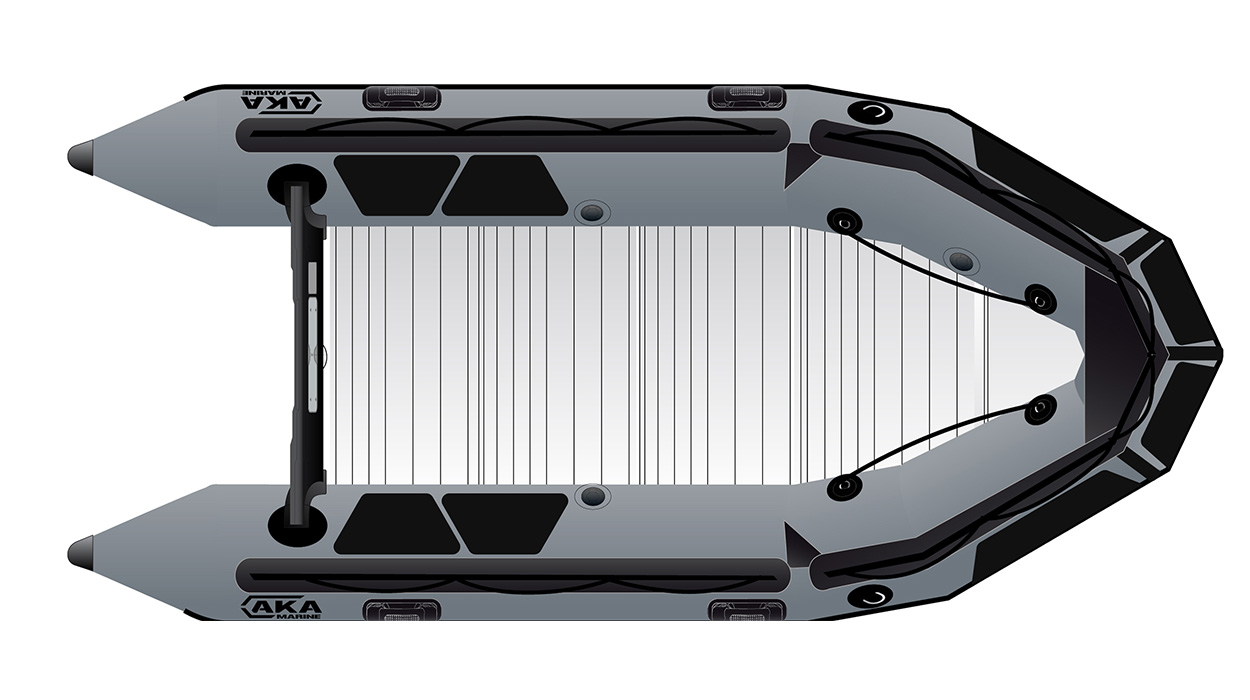

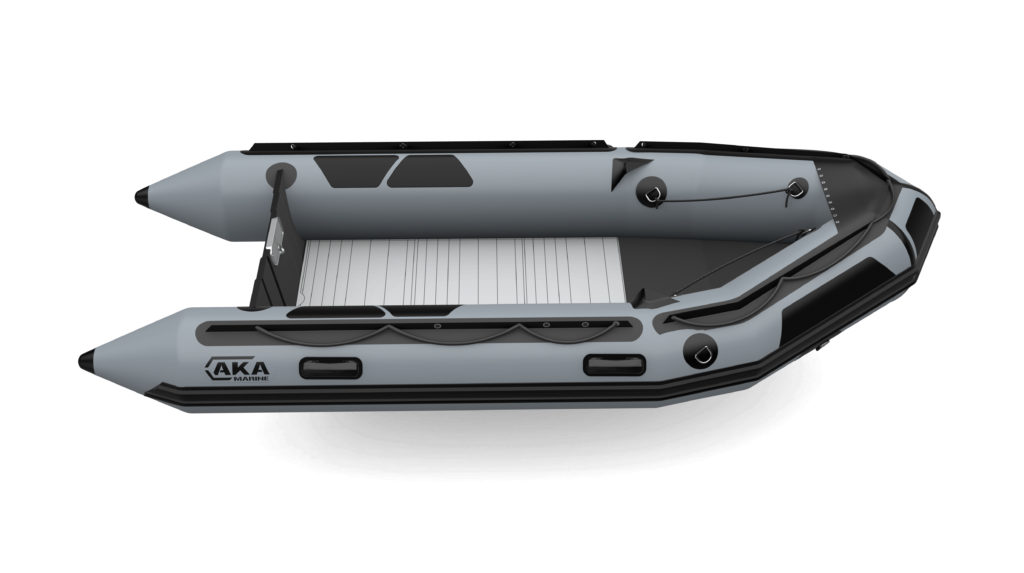

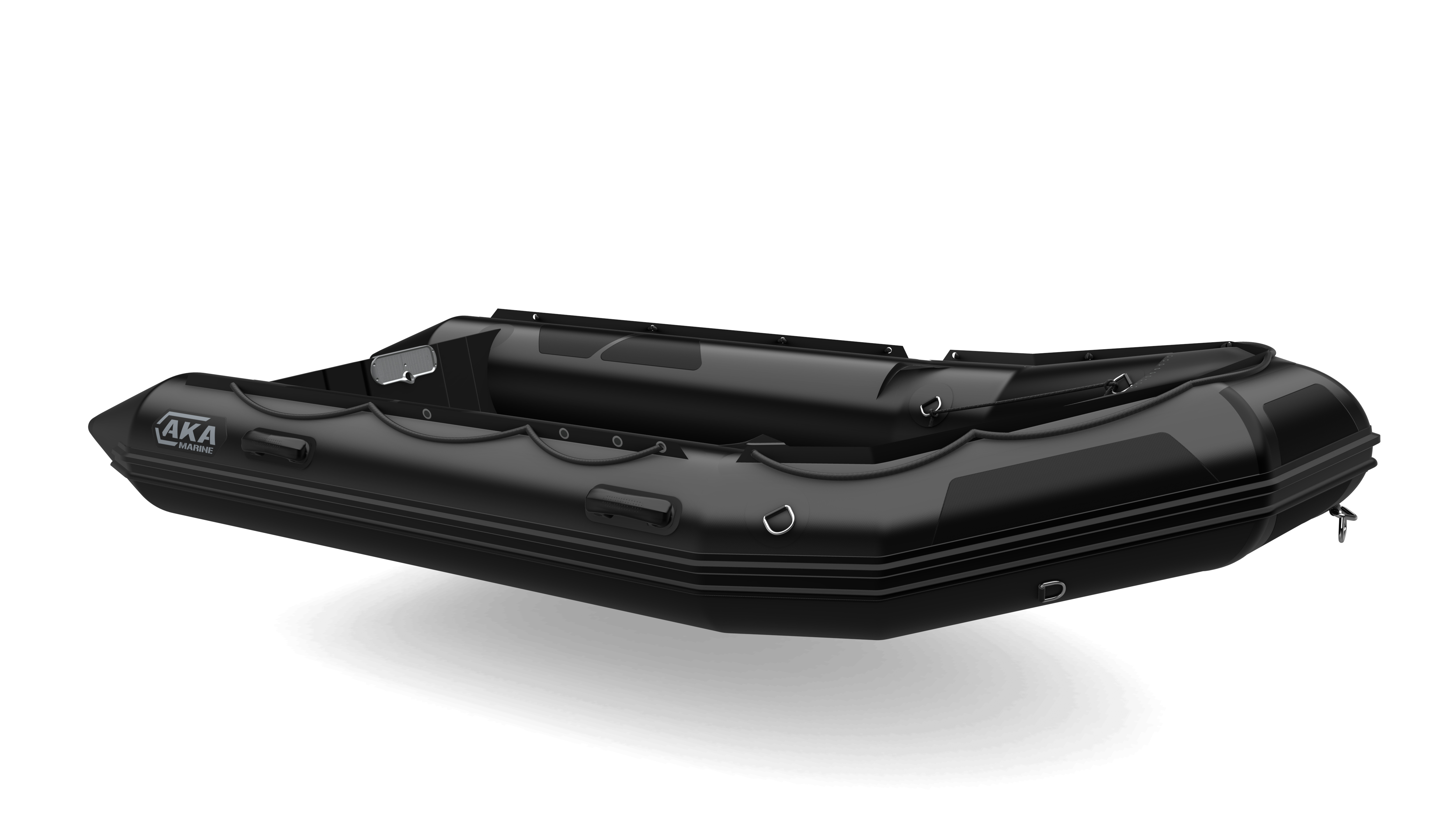

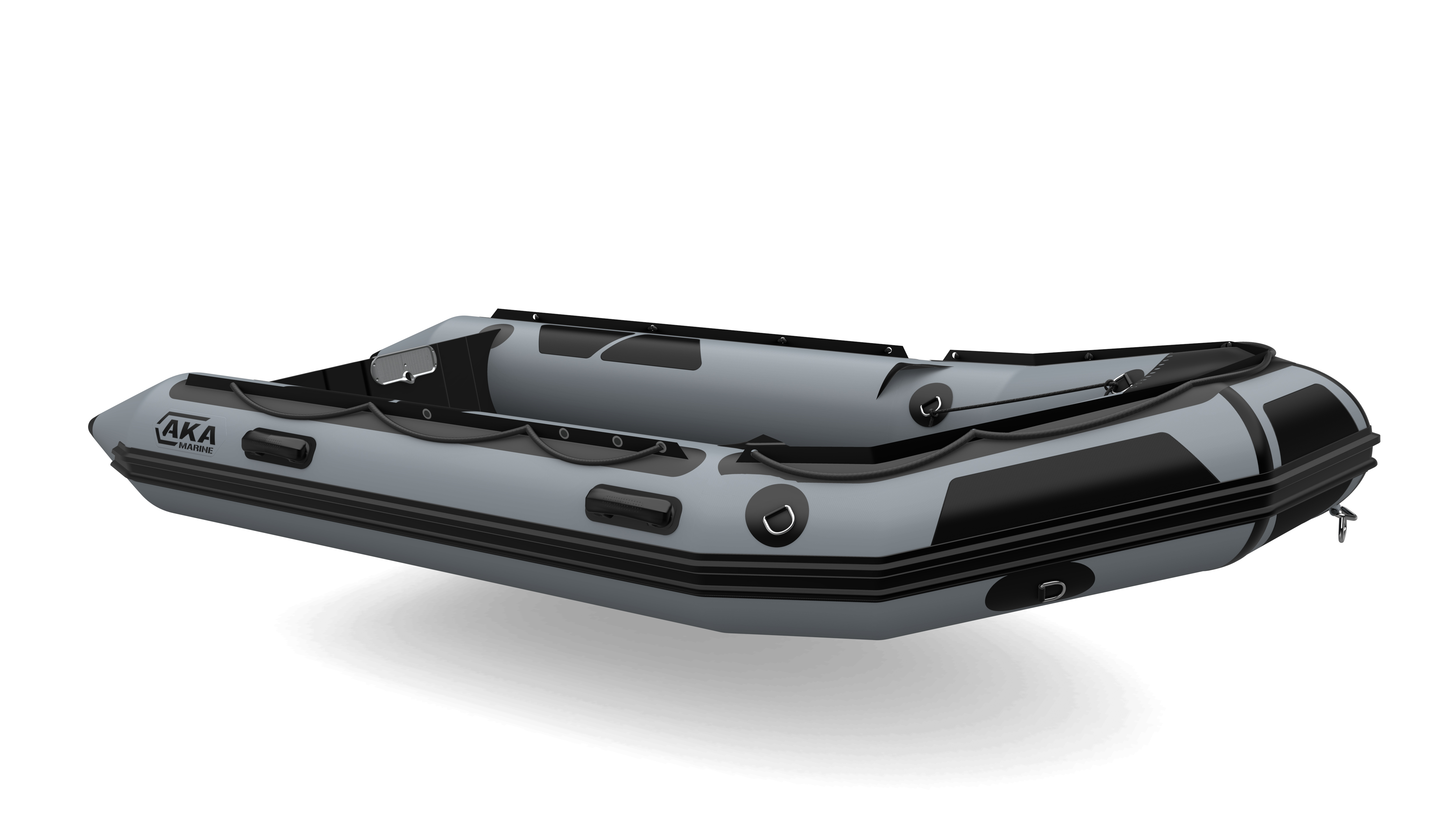

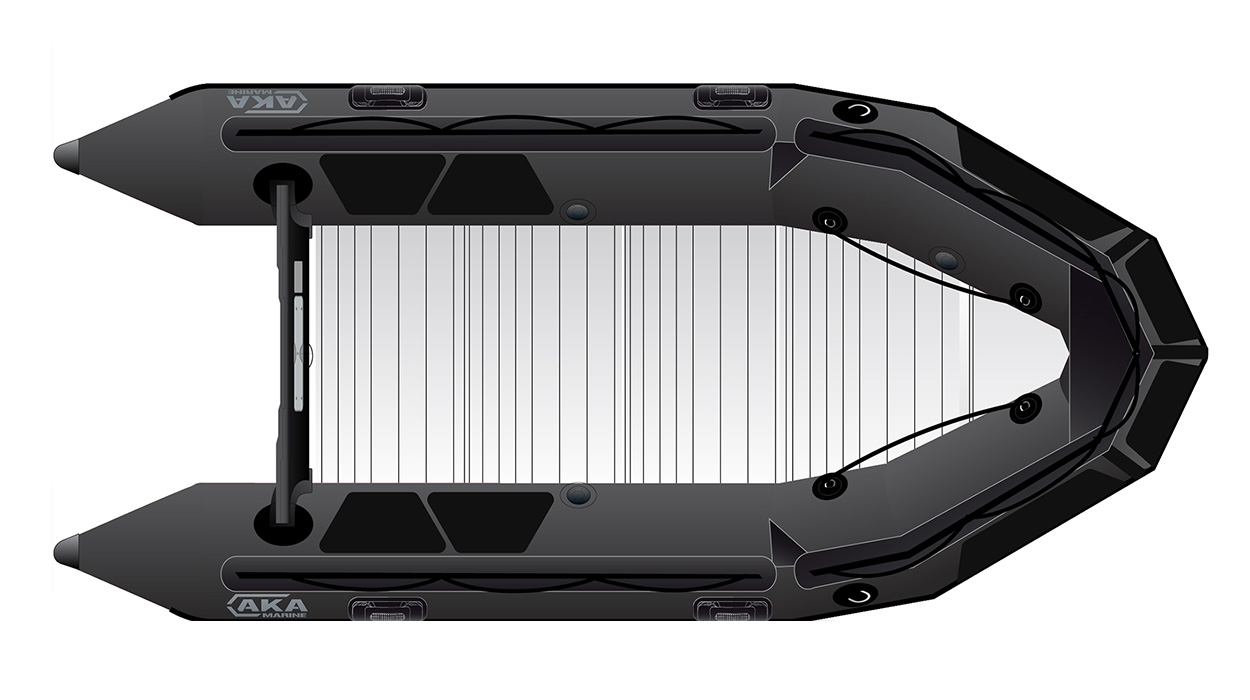

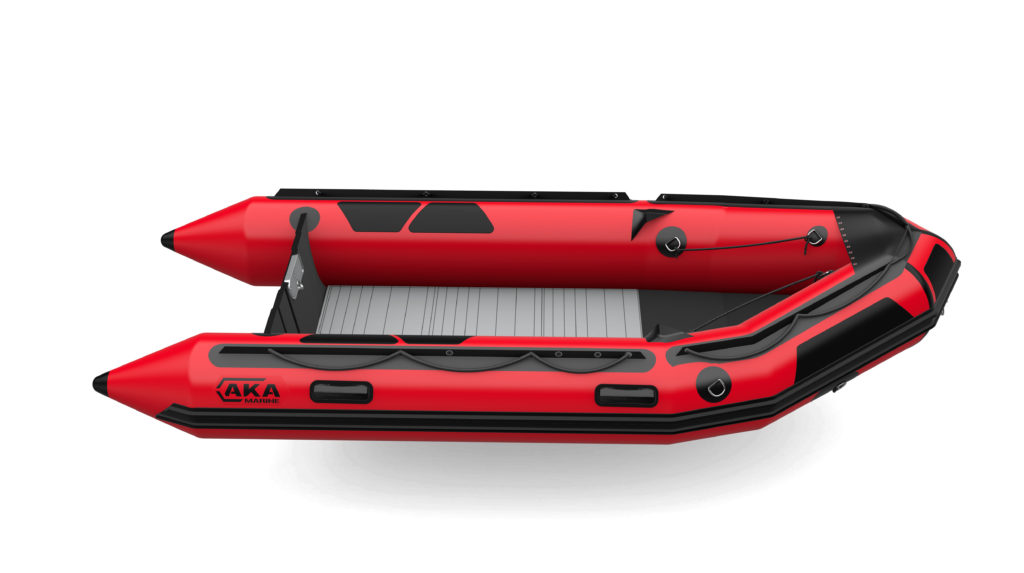

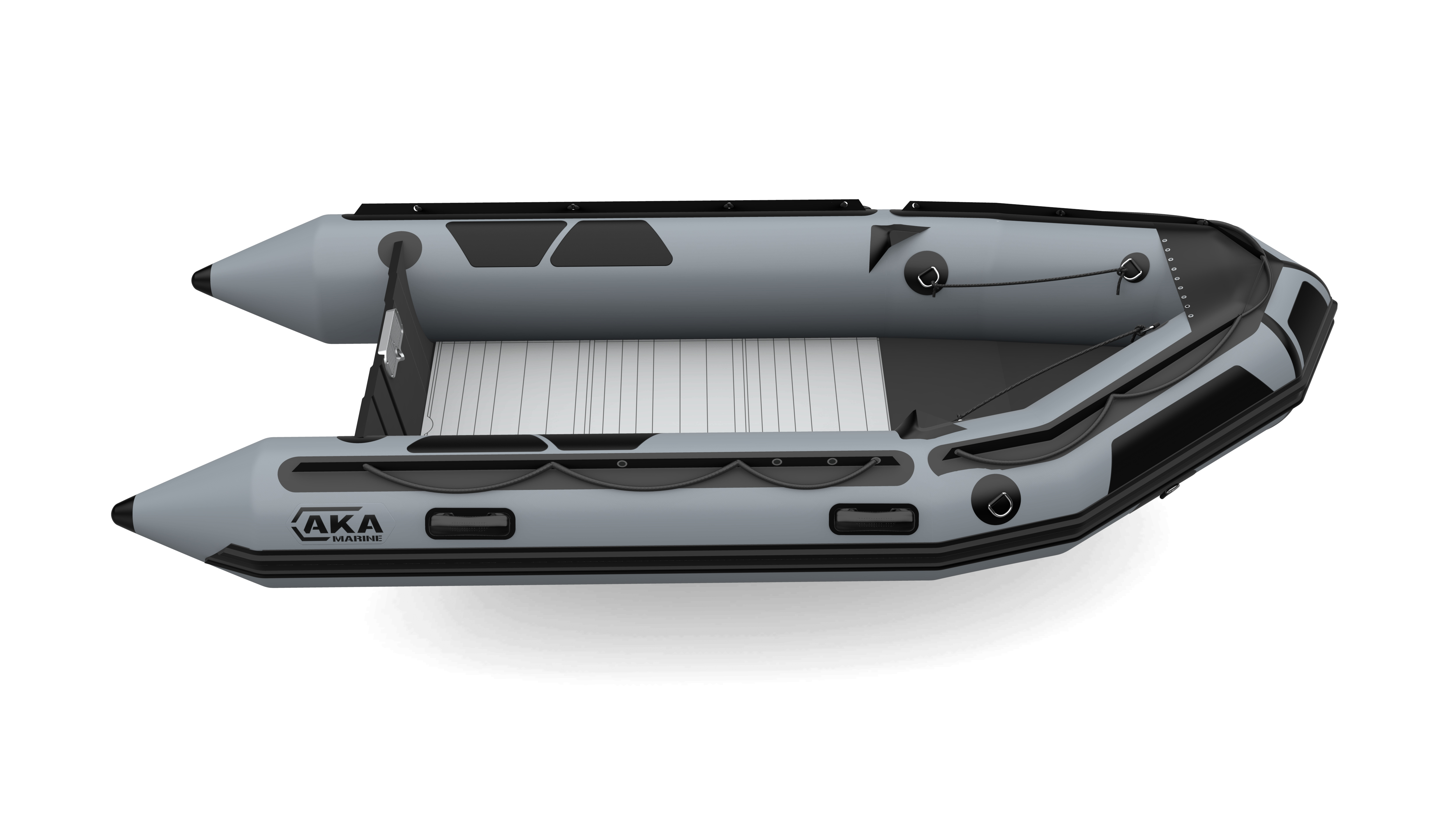

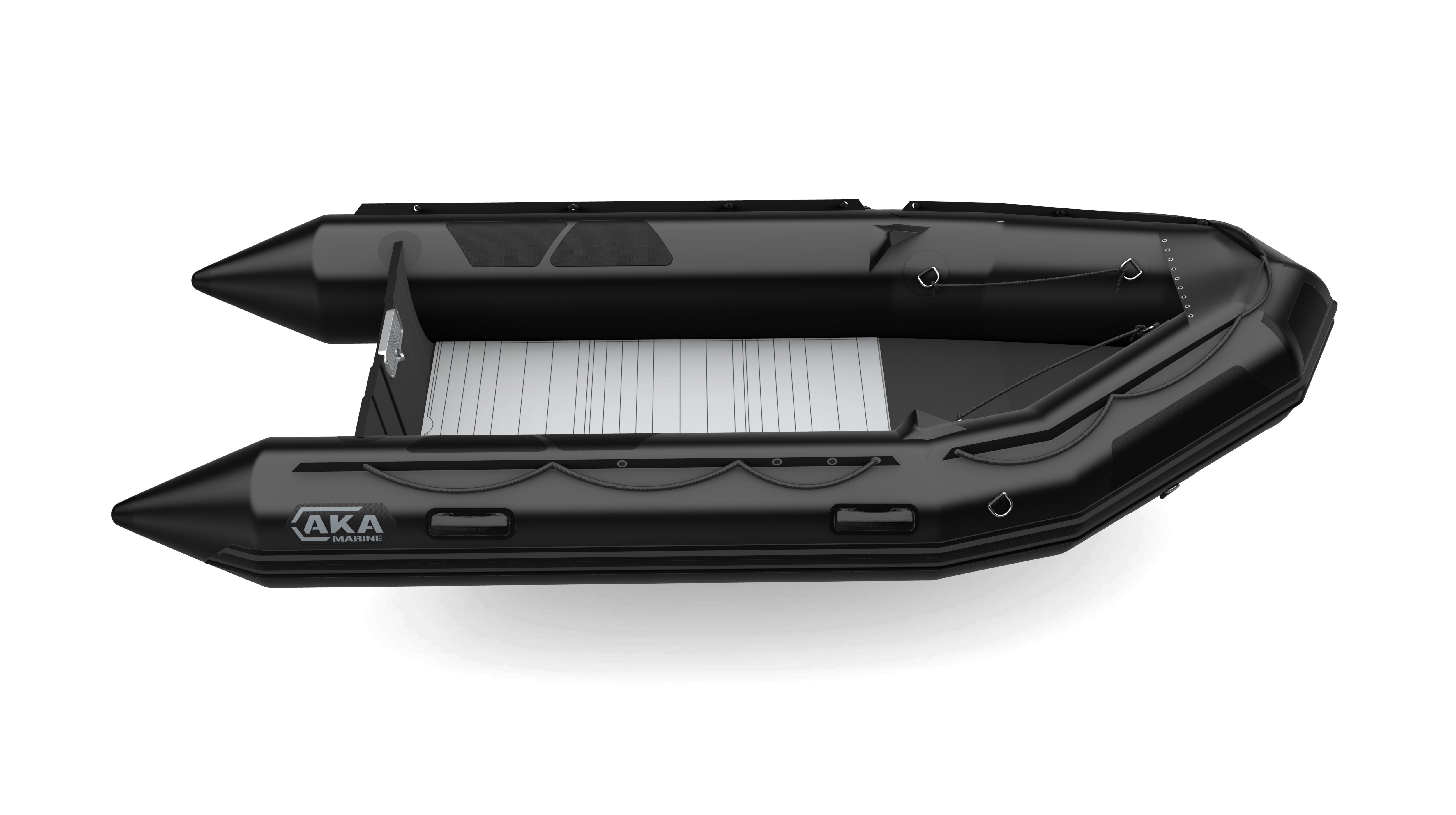

Pictures
Recommended for
Technical specifications
Dimensions
(meters - feets/inches)
Overall length
3,8 - 12'6''
Inside length
2,5 - 8'2''
Overall width
1,75 - 5'9''
Inside width
0,84 - 2'9''
Buoyancy tube diameter
0,455 - 1'6''
Outboard data
Shaft
Short
Average recommended power (Hp)
25
Average recommended power (kW)
19
Max. power allowed (Hp)
40
Max. power allowed (kW)
30
Max. weight of outboard (kg - lbs)
98 - 216
Capacity
Passengers (ISO Cat. C)
6
Maximum payload (kg - lbs) Cat C
750 - 1654
Total weight (kg - lbs)
98 - 216
Airtight compartments
3
Folded boat storage dimensions
(meters - feets/inches)
Length of bag n°1
1,15 - 3'9''
Width of bag n°1
0,55 - 1'10''
Height of bag n°1
0,3 - 0'12''
Length of bag n°2
0,98 - 3'3''
Width of bag n°2
0,55 - 1'10''
Height of bag n°2
0,15 - 0'6''
Design category
European directive N° 2013/53/ EU
C
Features
Buoyancy tube
- Plastomer 2×1100 dtx fabric (Thermo welding technology)
- Lacing cuff and safety grab lines
- Heavy Duty, anti-chafing, bow fender system
- Leafield inflation valves
- Leafield pressure relief valves
- Large profile rubbing strake
- 4 carry handles
- Bow carry handle
- Large diameter tow rings
- Bow lifting rings
- Paddle retainers
- Reinforced cone ends
Hull
- Rigid keel
- Aluminum floor boards, inc. built-in rails
- Full length keel protection
- Stern lifting points
- Aluminum engine support plate
- 2 Self-bailer
Standard equipment
- 2 paddles
- Foot pump & pressure gauge
- Repair kit
- Owner’s manual
Optional Accessories
- Bench remote steering console
- Adjustable bench
- Jockey console
- Diving cylinders holder
- Flexible fuel tank (35 L / 70 L)
