Foldable inflatable boats
F43H-C
Foldable inflatable boat | C-Series (CSM-CR)
FIB-C Series (CSM-CR)
The FIB-C Series (CSM-CR) is the most versatile foldable boat range.
Thanks to its solid aluminium floor and inflatable keel, the FIB-C Series (CSM-CR) offers a great sturdiness with up to 1,15 tons payload capacity.
Colors

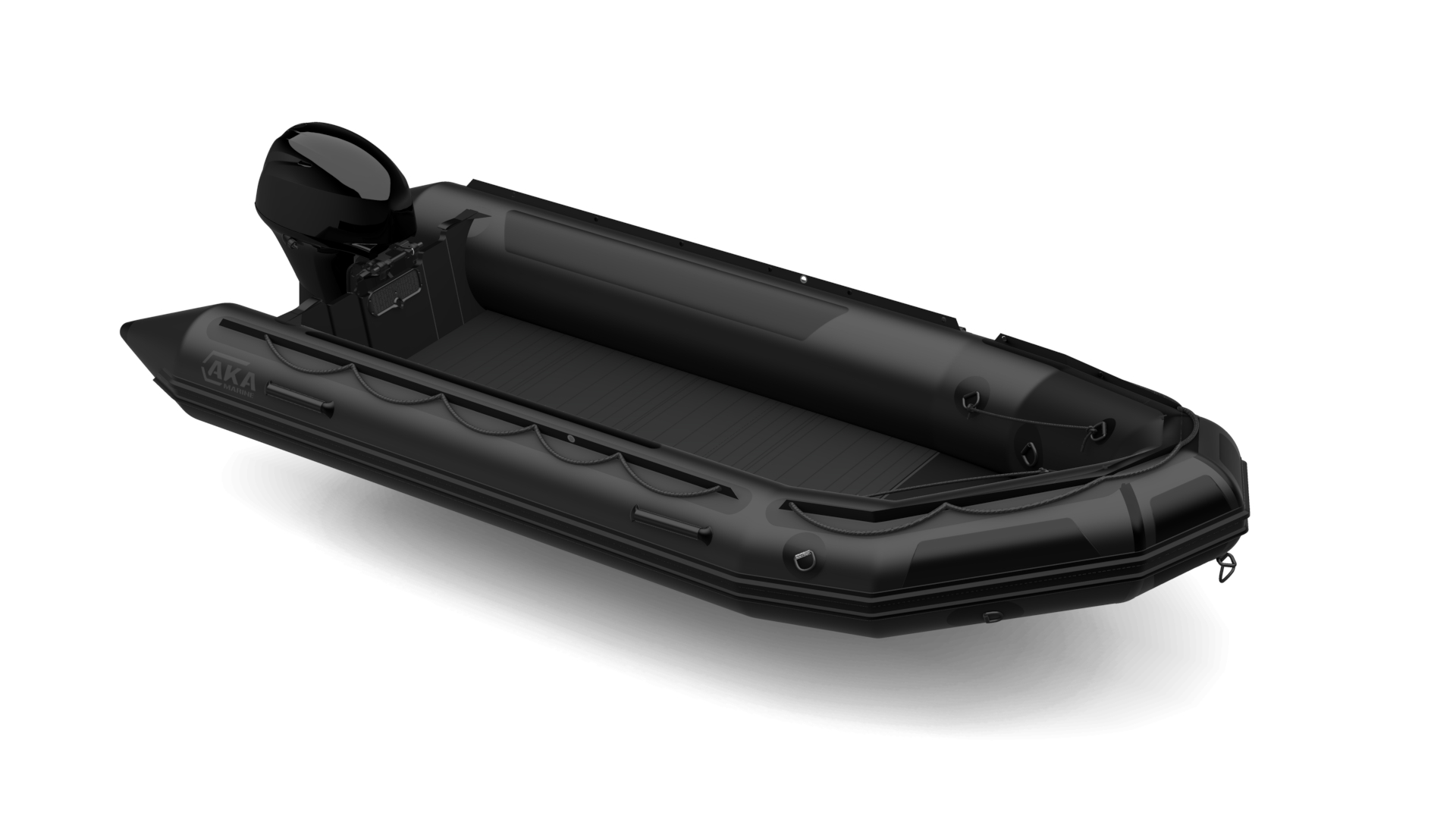

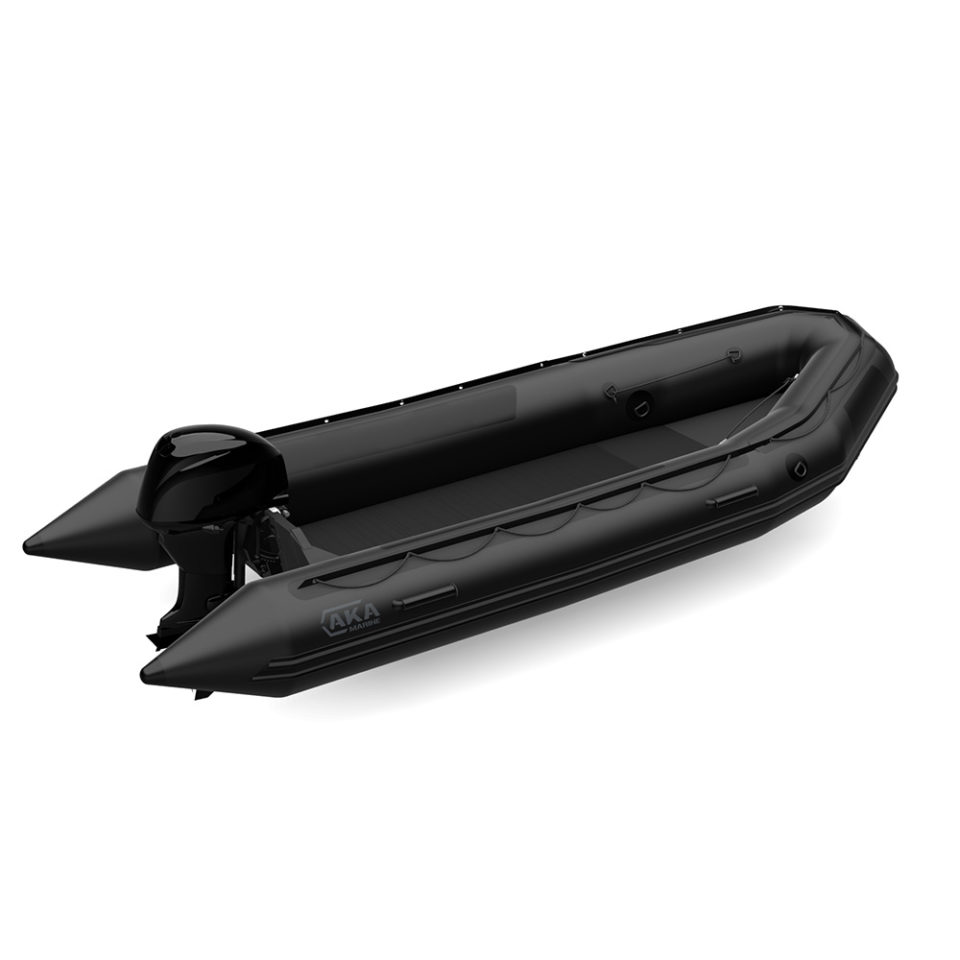

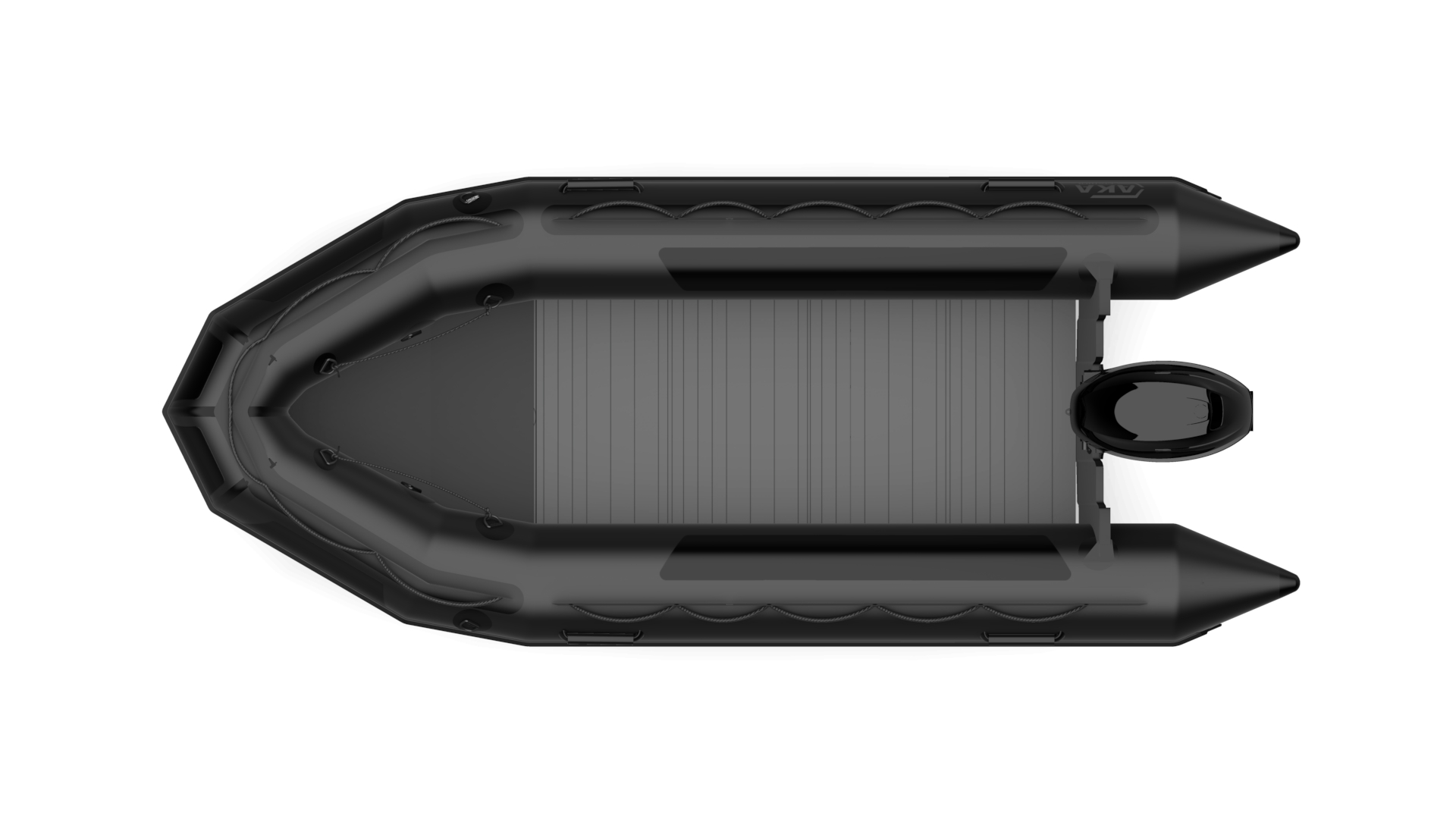

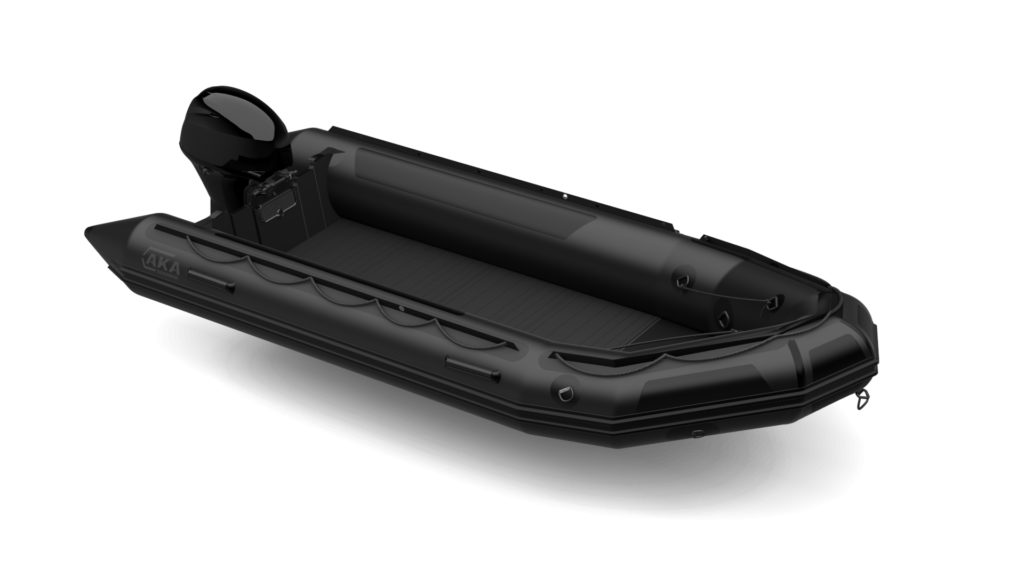

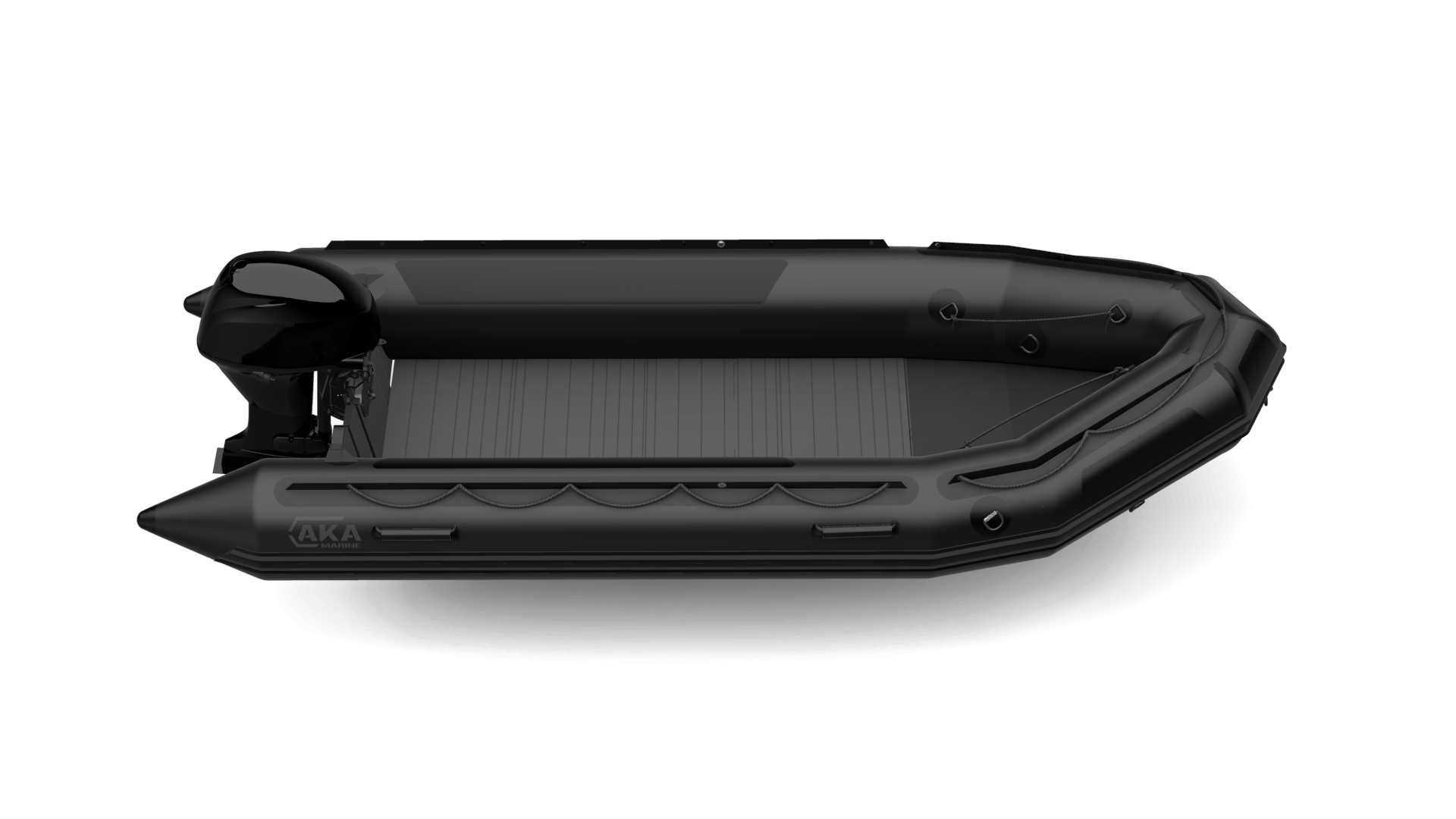

CSM-CR 1100 dtx Black

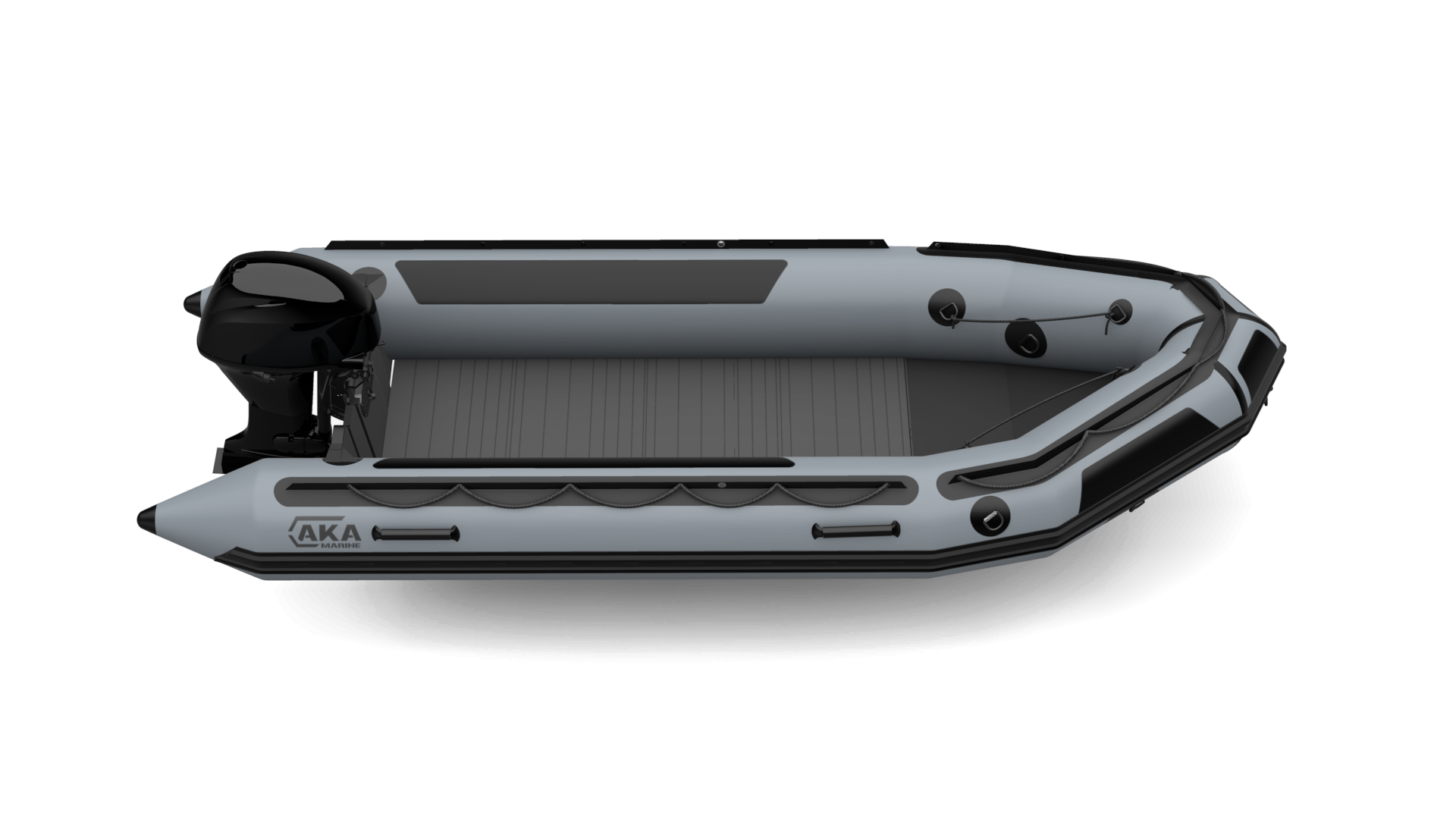

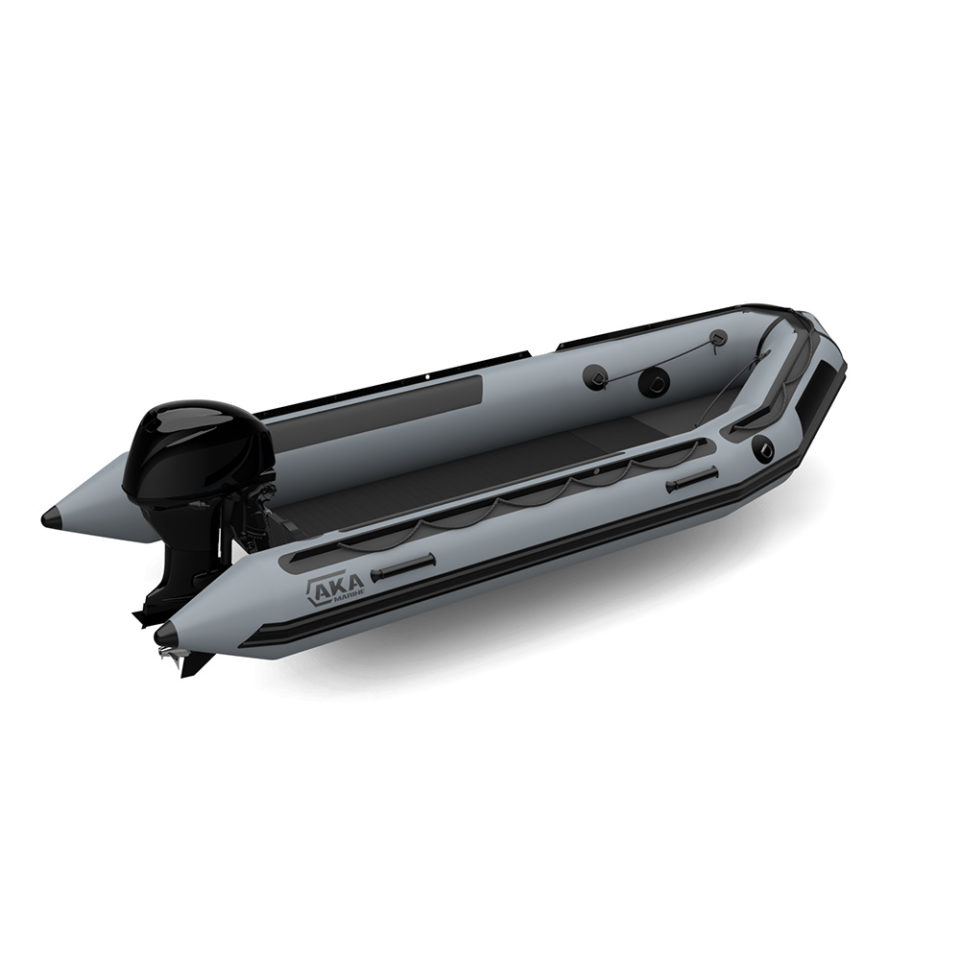

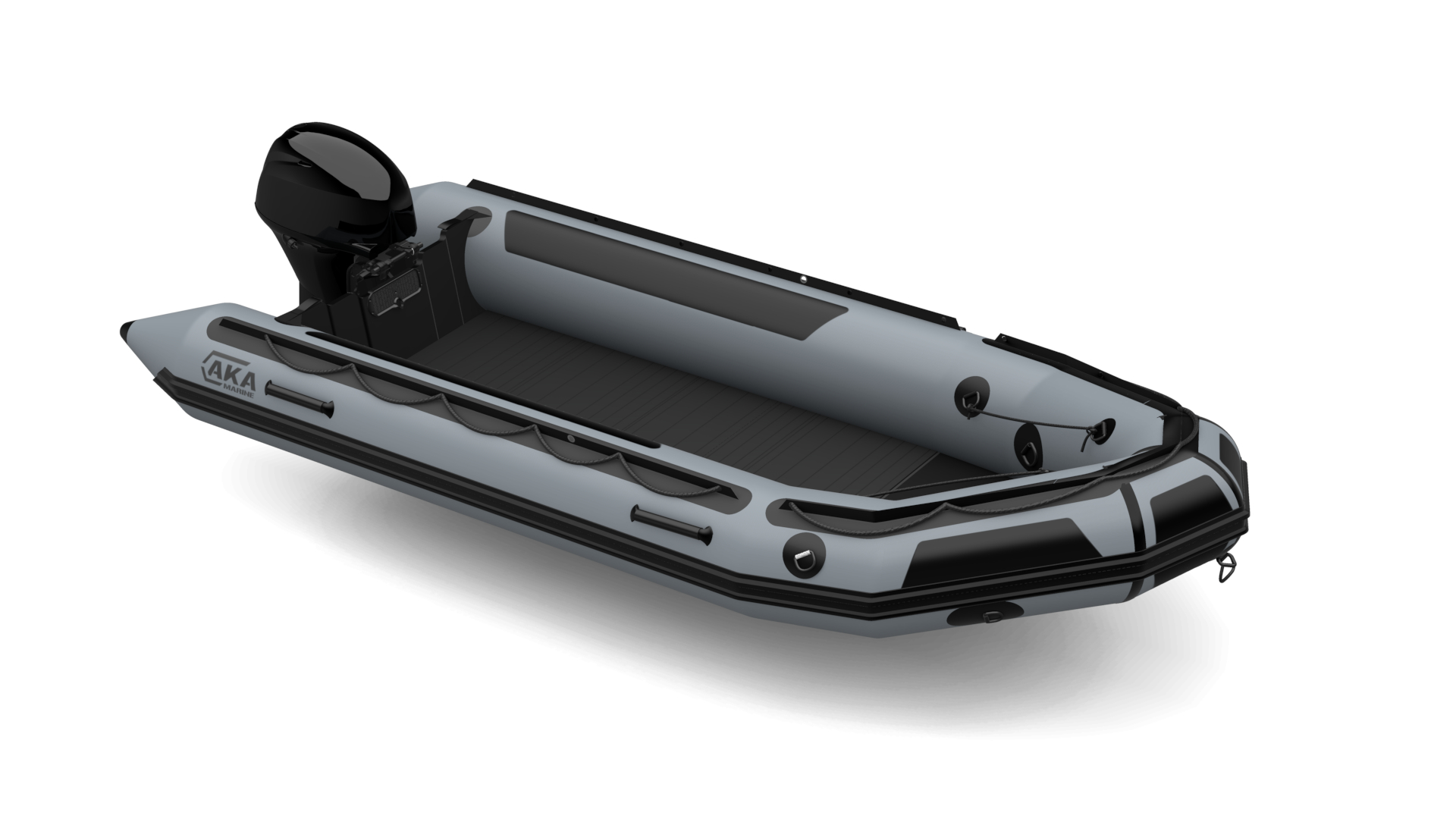

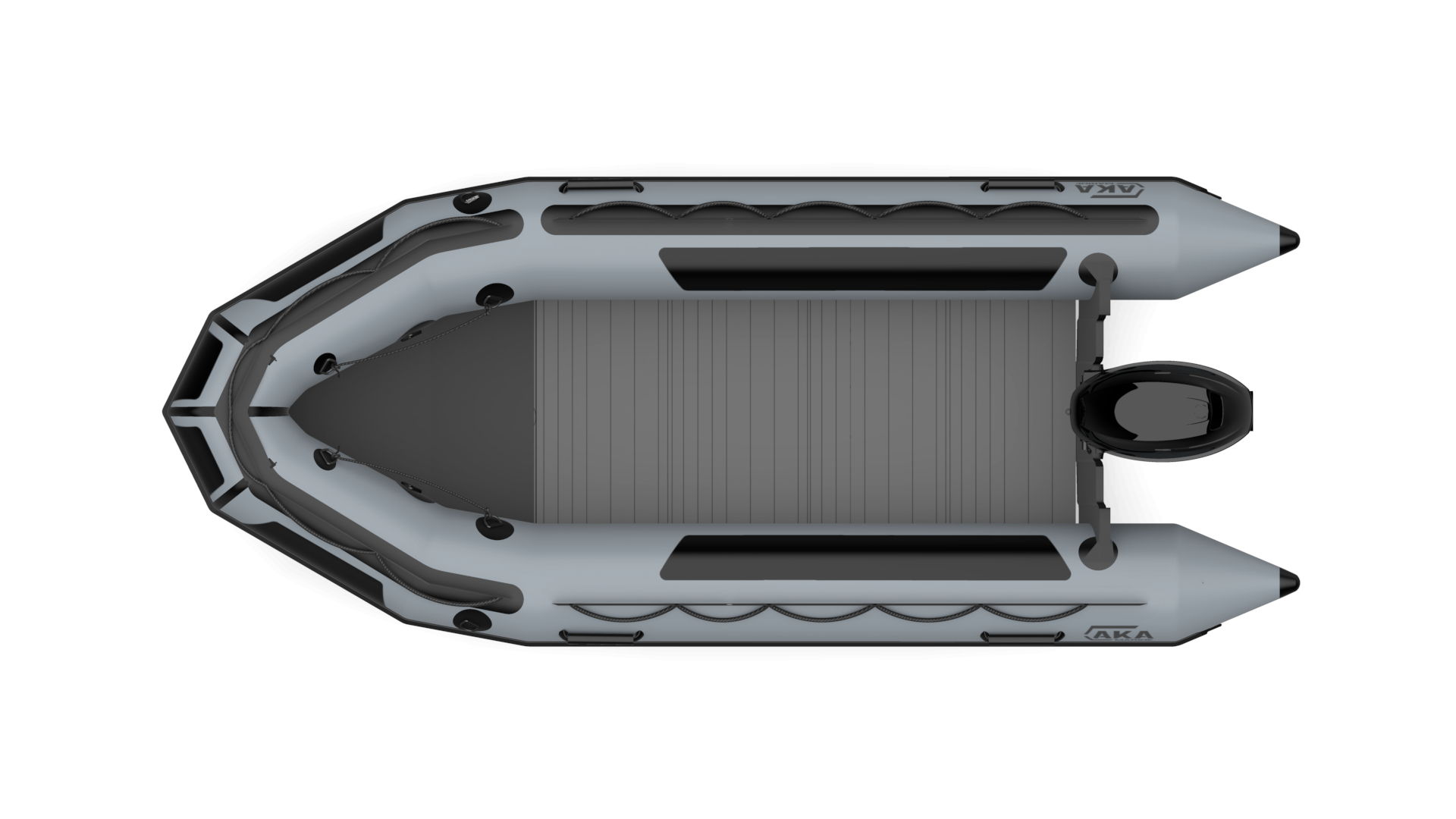

CSM-CR 1100 dtx Medium grey

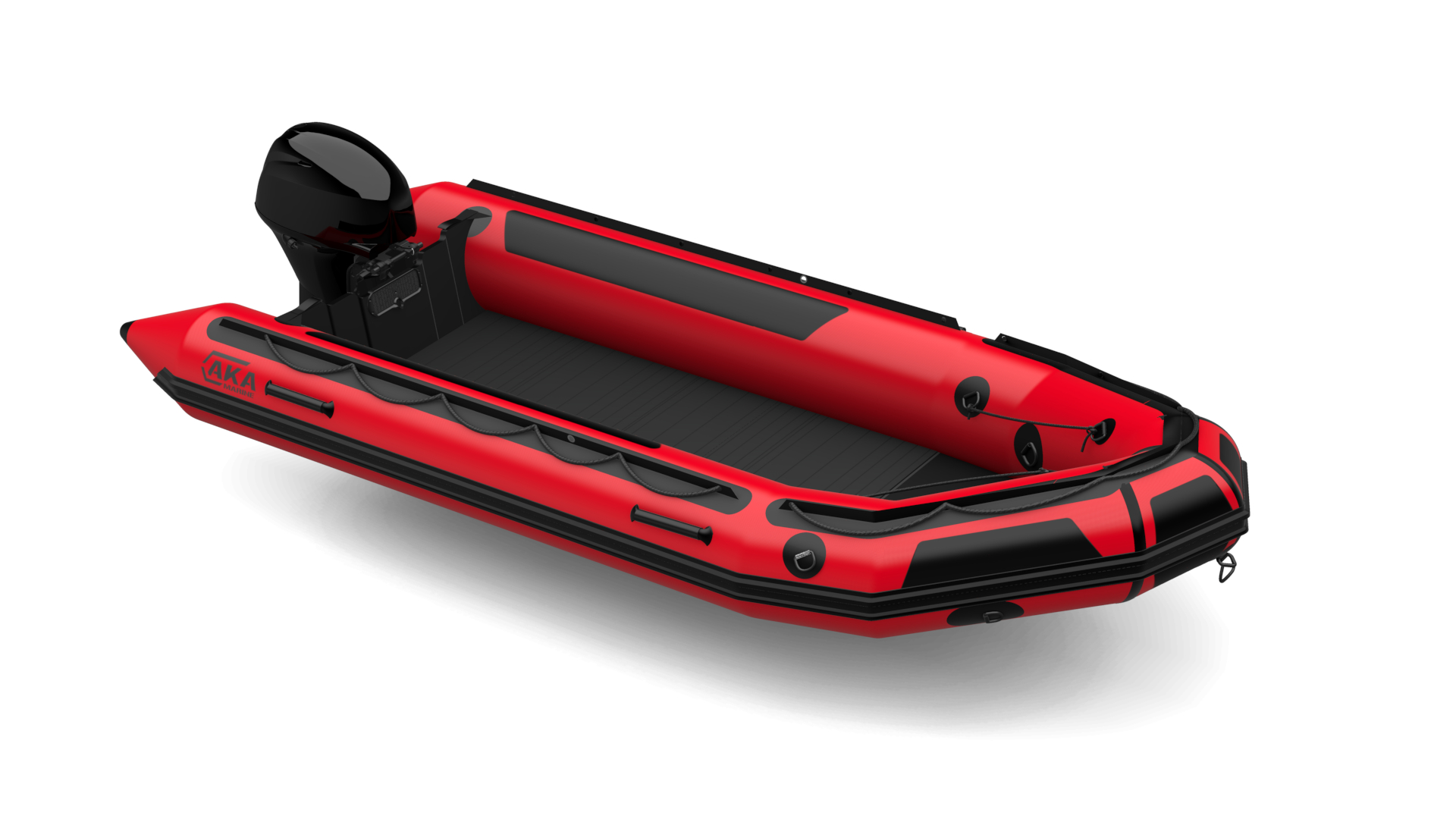

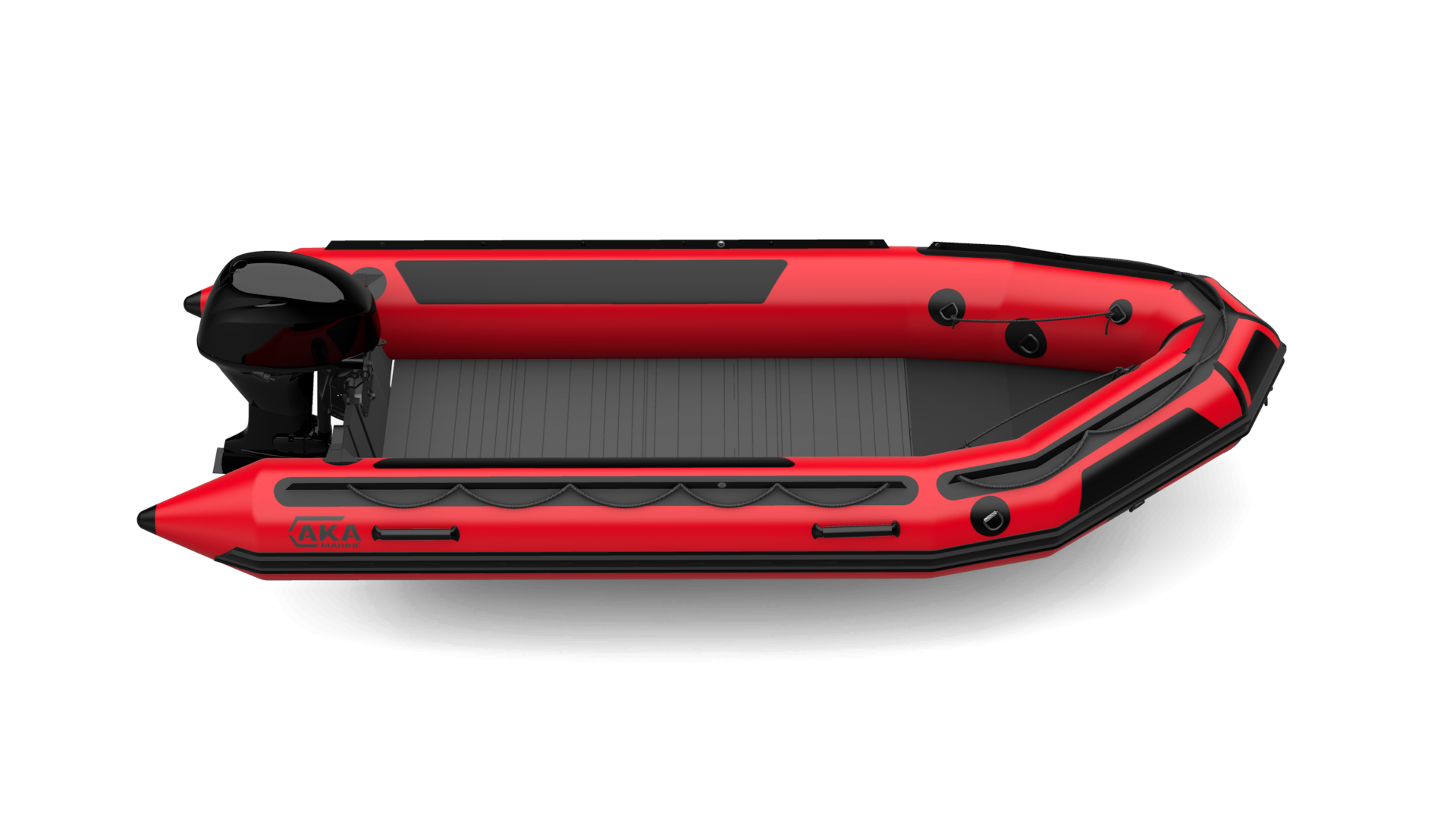

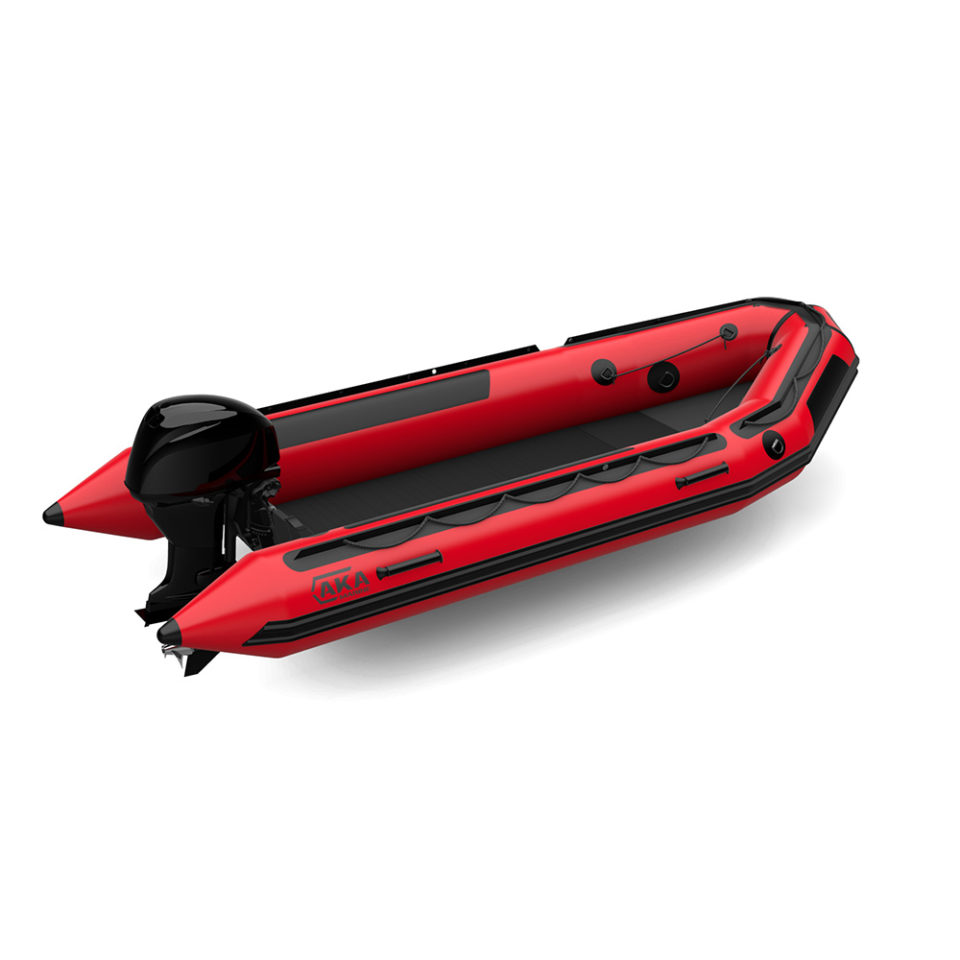

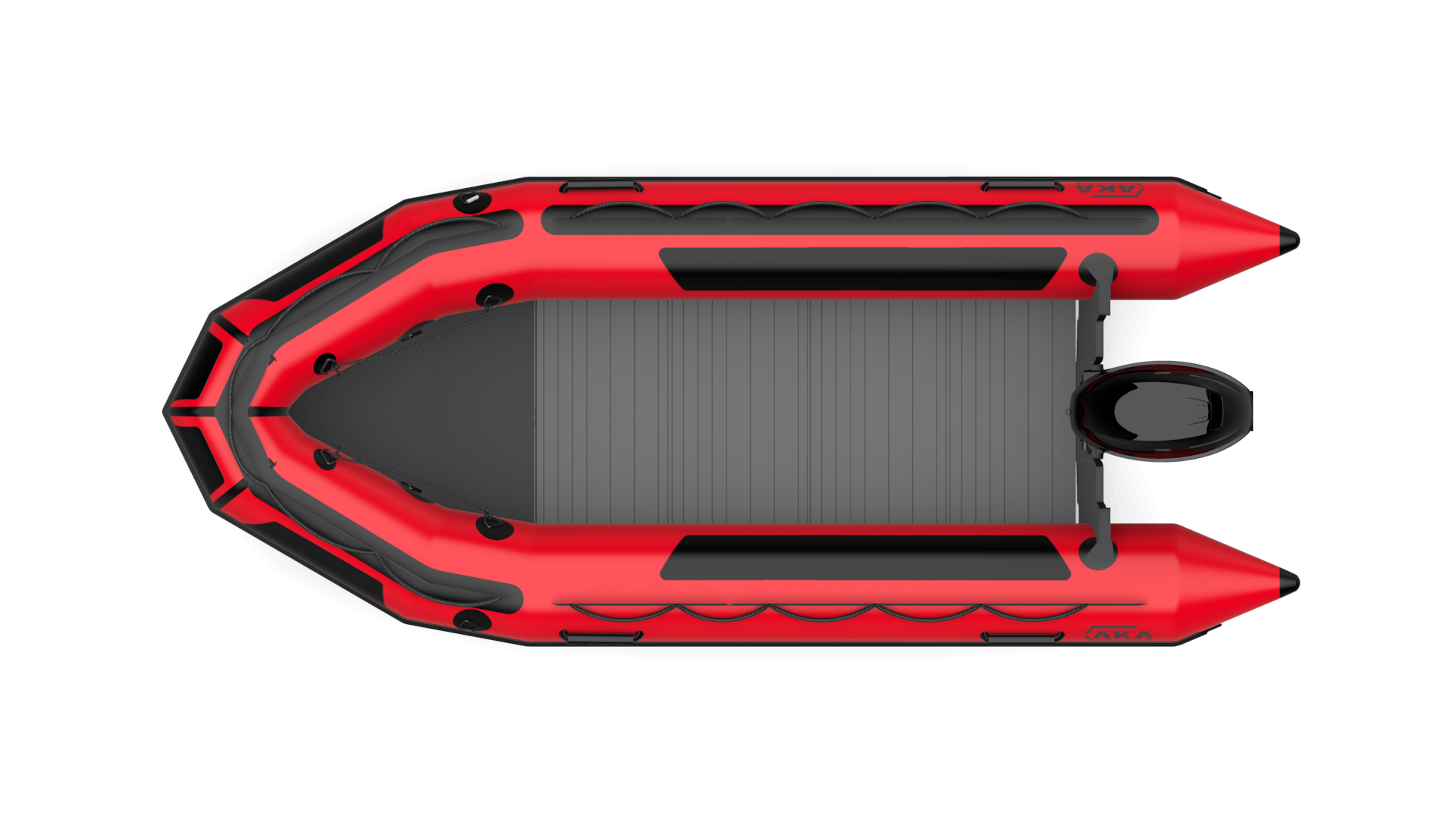

CSM-CR 1100 dtx Red
Key features
- High capacity, foldable, heavy duty work boat
- Solid, anti-skid, aluminum floor for maximum sturdiness
- Heavy Duty bow fender design
- Optimized keel protection
- Tubes are in CSM-CR (Chlorosulfonated Polyethylene – Neoprene)
- Large tube diameter offers great payload capacity
- Lifting capacity
Pictures
Recommended for
Technical specifications
Dimensions
(meters - feets/inches)
Overall length
4,30 - 14,1''
Inside length
3,09 - 10'2''
Overall width
1,88 - 6'2''
Inside width
0,92 - 3'
Buoyancy tube diameter
0,48 - 1'7''
Outboard data
Shaft
Long
Average recommended power (Hp)
30
Average recommended power (kW)
23
Max. power allowed (Hp)
50
Max. power allowed (kW)
38
Max. weight of outboard (kg - lbs)
110 - 243
Capacity
Passengers (ISO Cat C)
8
Maximum payload (kg - lbs) Cat C
950 - 2094
Total weight (kg - lbs)
116 - 256
Airtight compartments
3+1
Folded boat storage dimensions
Shipping dimensions
0,8m3
Floor boards bag dimensions (cm)
114x75x20
Floor boards bag dimensions (feet/inches)
3'9''x2'6''x8''
Tube bag dimensions (cm)
132x73x38
Tube bag dimensions (feet/inches)
4'4''x2'5''x1'3''
Design category
European directive N° 2013/53/ EU
C
Features
Buoyancy tube
- CSM-CR 1100 dtx fabric (Chlorosulfonated Polyethylene – Neoprene)
- Lacing cuff and safety grab lines
- Extra fabric seating pads
- Heavy Duty, anti-chafing, bow fender system
- Leafield inflation valves
- Leafield pressure relief valves
- Large profile rubbing strake
- 4 carry handles
- Bow carry handle
- Large diameter tow rings
- Bow lifting rings
- Paddle retainers
- Reinforced cone ends
Hull
- Inflatable keel with full length bottom strake
- Aluminum floor boards, inc. built-in rails and stringers
- Transom lifting points
- Transom towing points
- Aluminum engine support plate
- 2 High capacity bailers (elephant trunk type)
Standard equipment
- 2 paddles
- Foot pump & pressure gauge
- Repair kit
- Owner’s manual
Optional Accessories
- High debit electric pump
- Flexible fuel tank (35 L / 70 L)
