Foldable inflatable boats

F47-C

Foldable inflatable boat | C-Series (PVC)

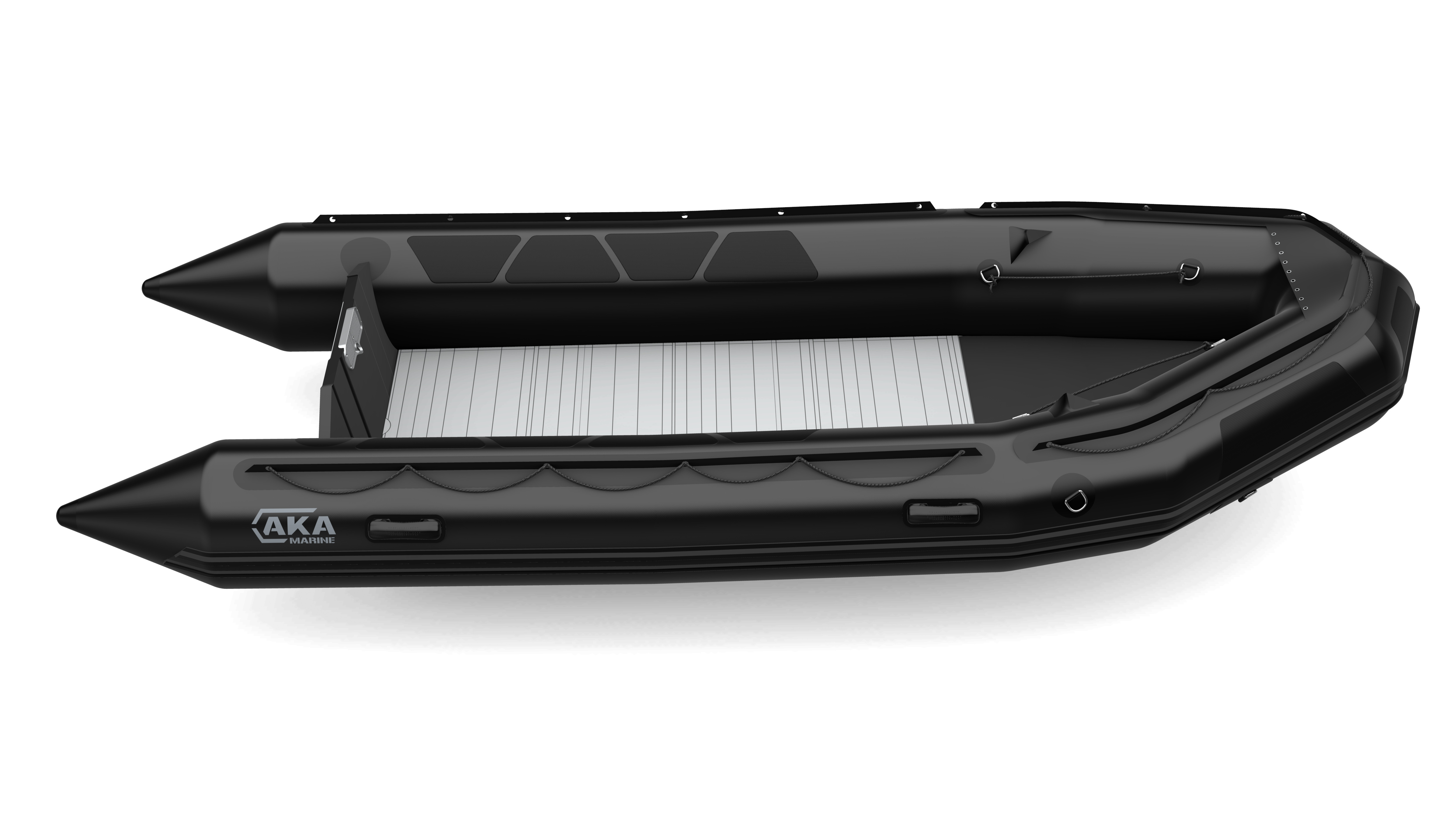

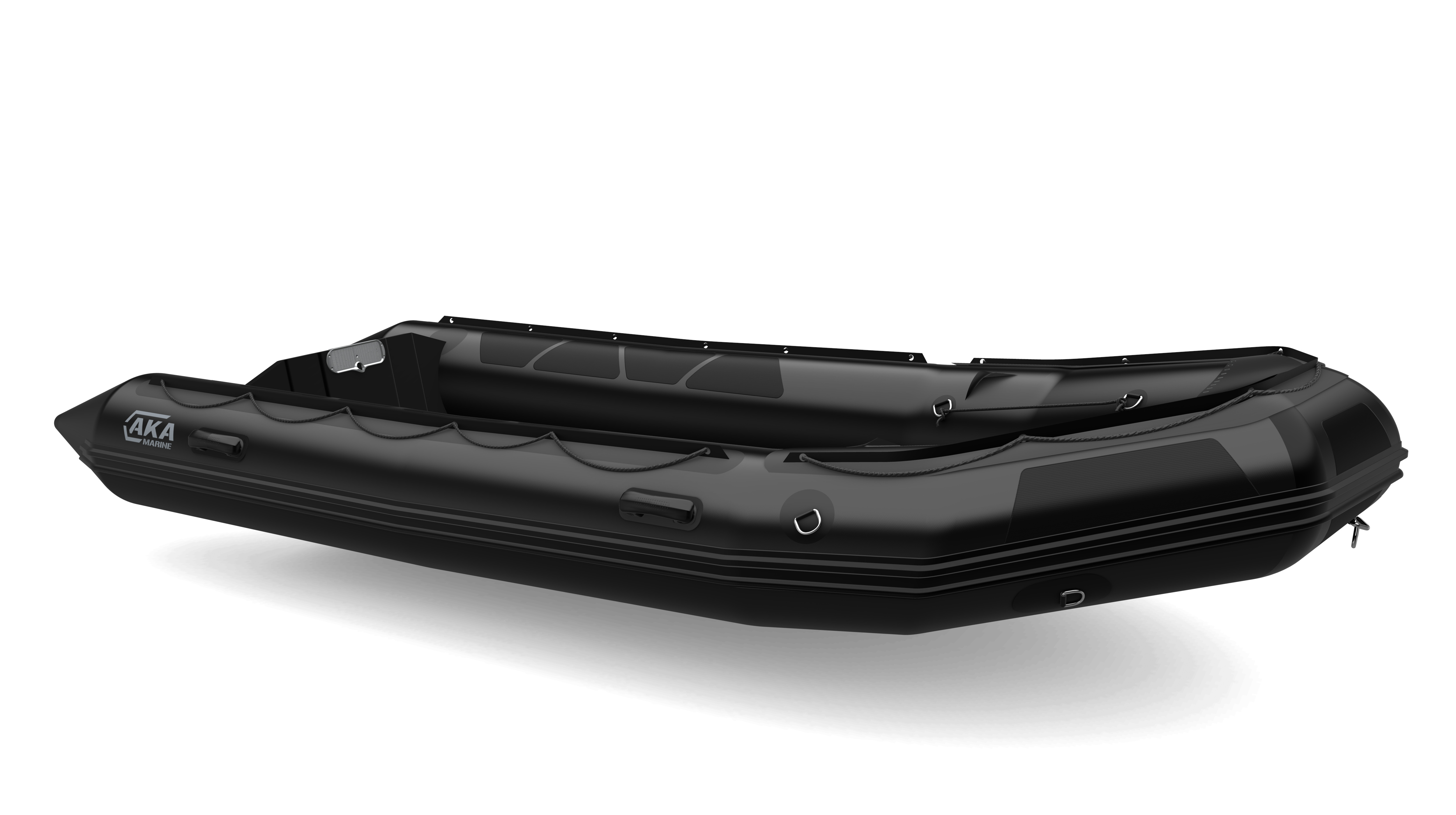

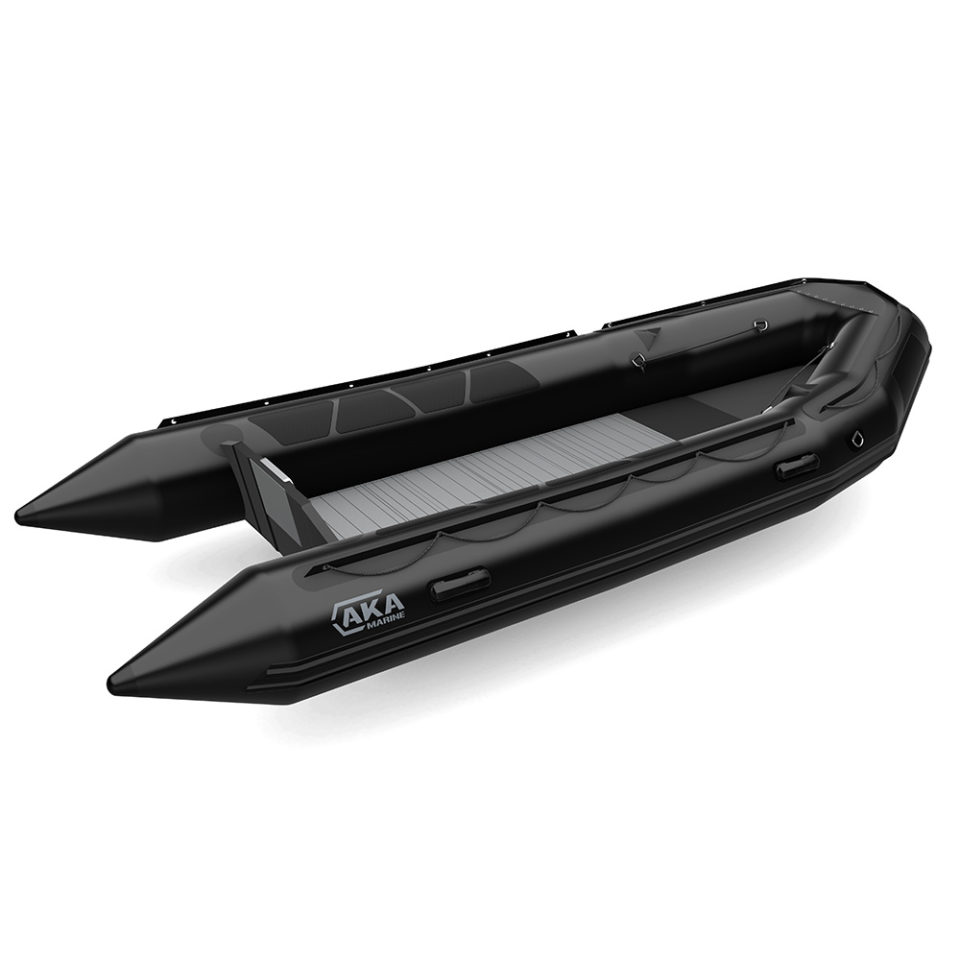

AKA F47 C PVC Black

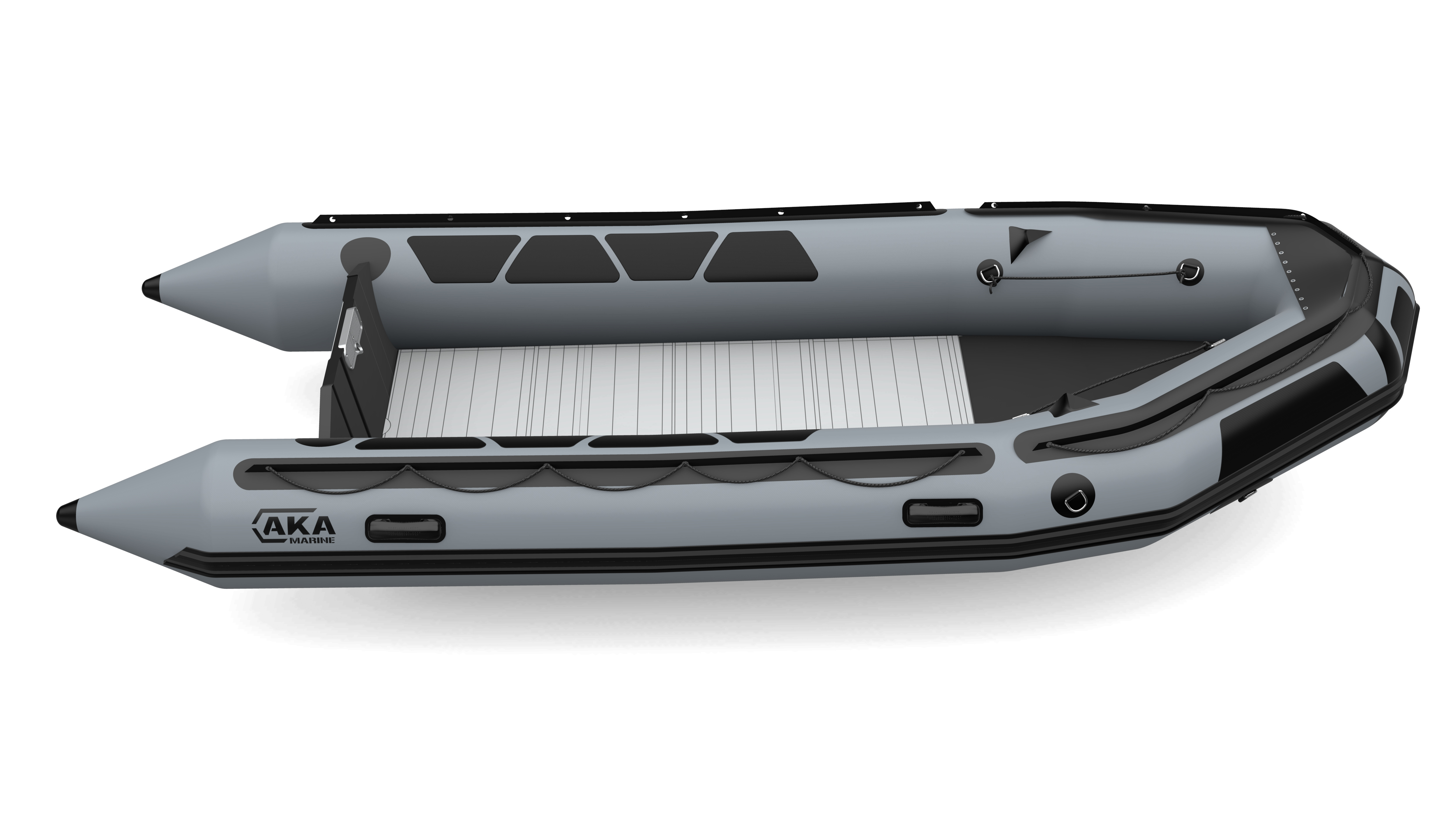

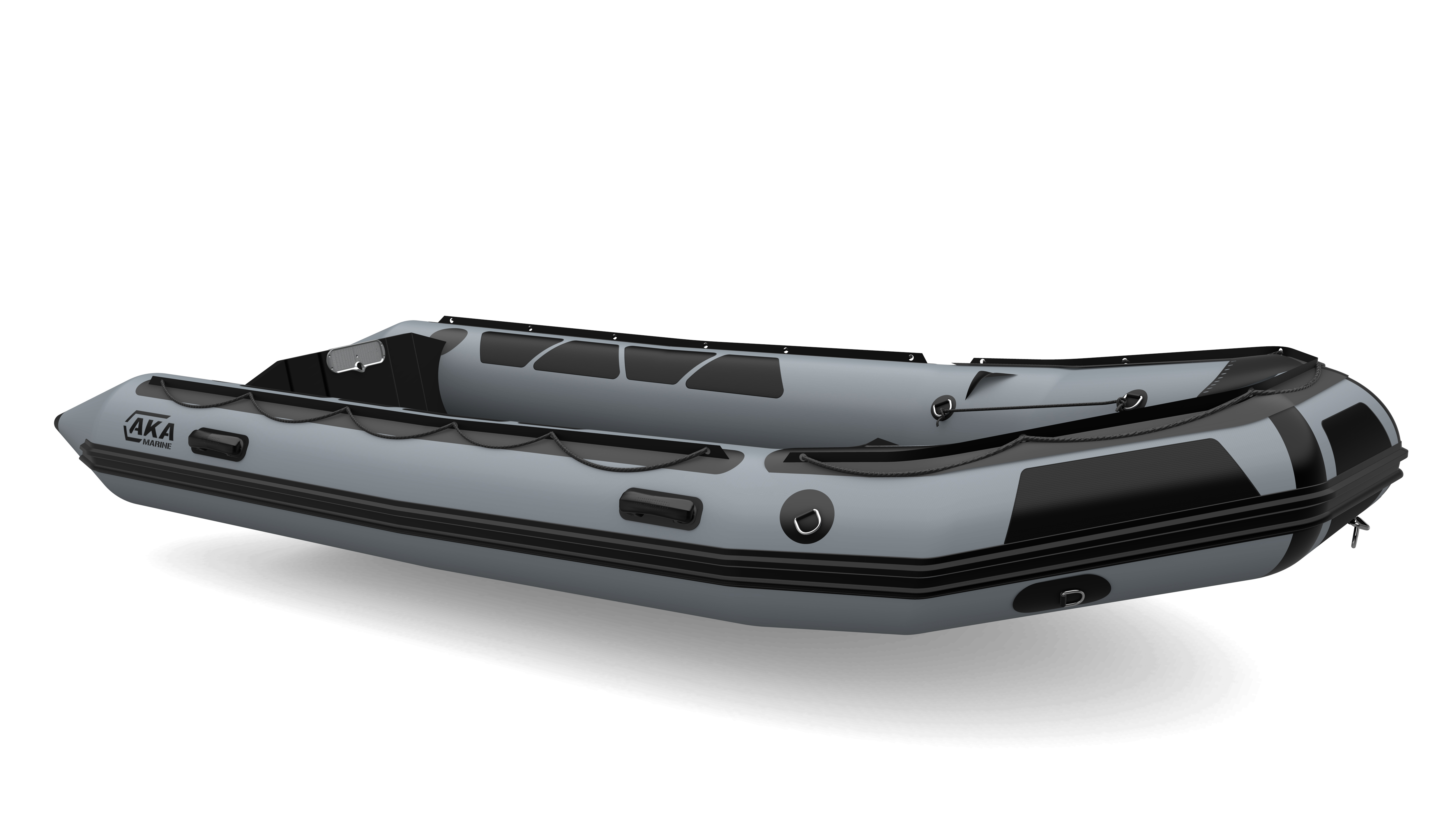

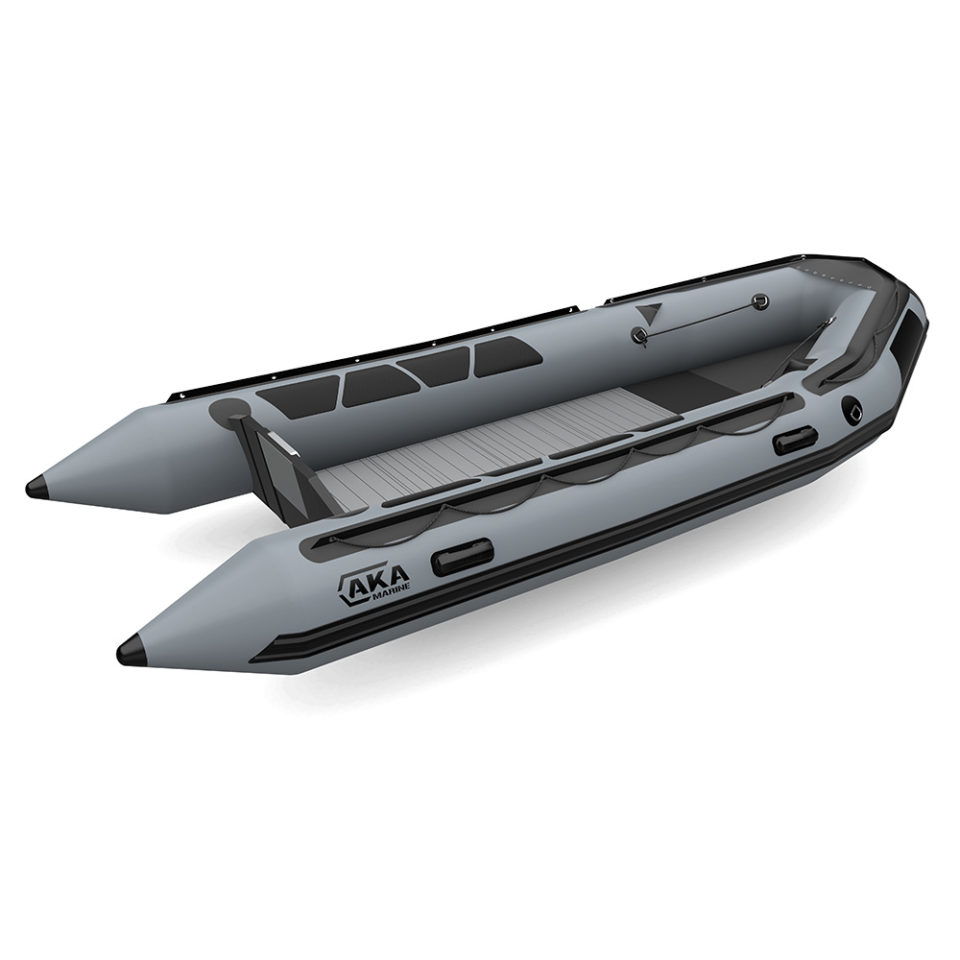

AKA F47-C PVC GM

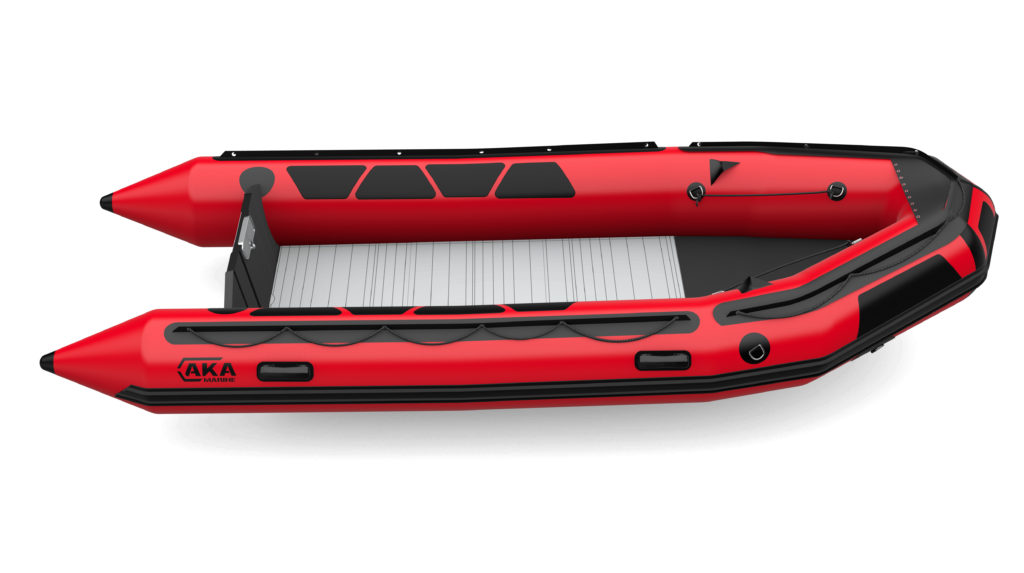

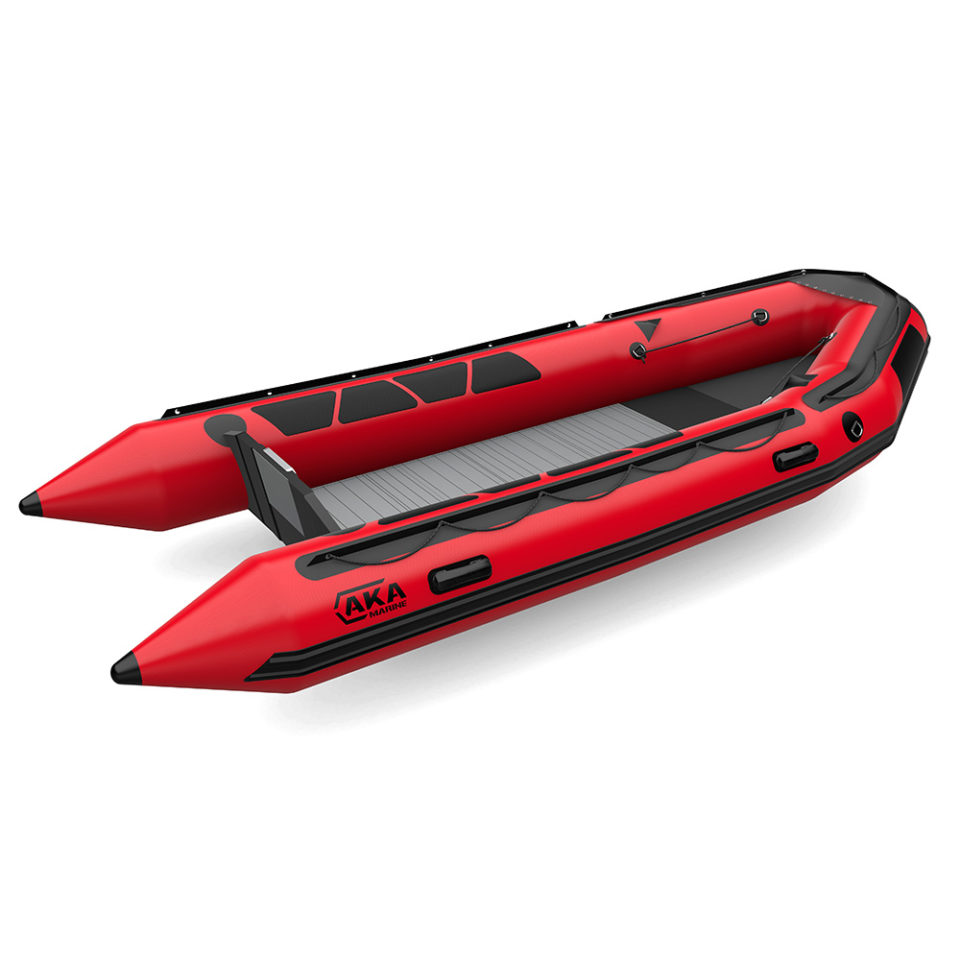

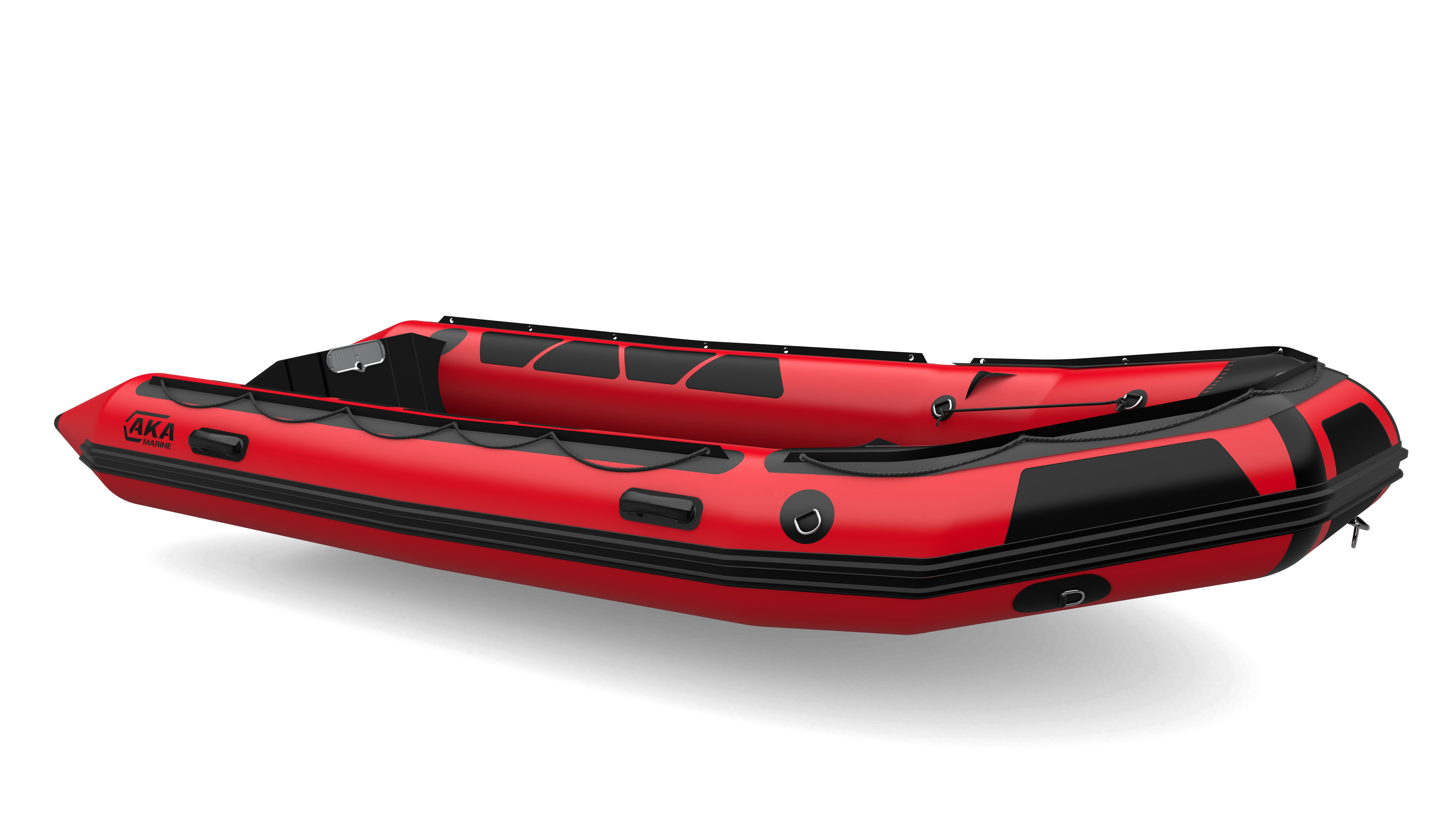

AKA F47-C PVC red
AKA F47 C PVC Black
AKA F47-C PVC GM
AKA F47-C PVC red

FIB-C Series (PVC)

The FIB-C Series (PVC) is the most versatile foldable boat range.

Thanks to its solid aluminium floor and rigid keel, the FIB-C Series (PVC) offers a great sturdiness with up to 1,15 tons payload capacity.

Colors

Plastomer 2*1100 dtx Black
Plastomer 2*1100 dtx Medium grey
Plastomer 2*1100 dtx Red

Key features

  • Foldable work boat
  • Solid aluminum floor and rigid keel for maximum sturdiness
  • Heavy Duty bow fender design
  • Optimized keel and tube protection
  • Tubes are in PVC (Thermo welding technology)
  • Large tube diameter offers great payload capacity

Pictures

Video

Recommended for

Law enforcement
  • Patrol
  • Coast Guard
  • Police
  • Administration / Authorities
More for law enforcement use
Professional
  • Marina, port activities
  • Expeditions
  • Hotels & resorts
  • Clubs
More for professional use
Search & rescue
  • First responders
  • Fire brigades
  • Surveillance
More for search & rescue use
Military
  • Army
  • Navy
More for military use
Technical specifications
Dimensions
(meters - feets/inches)
Overall length
4,7 - 15,5''
Inside length
3,2 - 10'6''
Overall width
1,9 - 6'3''
Inside width
0,9 - 2'11''
Buoyancy tube diameter
0,5 - 1'8''
Outboard data
Shaft
Long
Average recommended power (Hp)
40
Average recommended power (kW)
30
Max. power allowed (Hp)
60
Max. power allowed (kW)
45
Max. weight of outboard (kg - lbs)
128 - 282
Capacity
Passengers (ISO Cat C)
9
Maximum payload (kg - lbs) Cat C
1150 - 2535
Total weight (kg - lbs)
128 - 282
Airtight compartments
4
Folded boat storage dimensions
(meters - feets/inches)
Length of bag n°1
1,3 - 4'3''
Width of bag n°1
0,54 - 1'9''
Height of bag n°1
0,32 - 1'1''
Length of bag n°2
1,28 - 4'2''
Width of bag n°2
0,66 - 2'2''
Height of bag n°2
0,22 - 0'9''
Design category
European directive N° 2013/53/ EU
C
Features
Buoyancy tube

  • Plastomer 2×1100 dtx fabric (Thermo welding technology)
  • Lacing cuff and safety grab lines
  • Heavy Duty, anti-chafing, bow fender system
  • Leafield inflation valves
  • Leafield pressure relief valves
  • Large profile rubbing strake
  • 4 carry handles
  • Bow carry handle
  • Large diameter tow rings
  • Bow lifting rings
  • Paddle retainers
  • Reinforcedcone ends

Hull

  • Rigid keel
  • Aluminum floor boards, inc. built-in rails
  • Full length keel protection
  • Stern lifting points
  • Aluminum engine support plate
  • 2 Self-bailer

Standard equipment

  • 2 paddles
  • Foot pump & pressure gauge
  • Repair kit
  • Owner’s manual

Optional Accessories

  • Bench remote steering console
  • Adjustable bench
  • Jockey console
  • Diving cylinders holder
  • Flexible fuel tank (35 L / 70 L)
