Foldable inflatable boats
F47H-C
Foldable inflatable boat | C-Series (CSM-CR)
FIB-C Series (CSM-CR)
The FIB-C Series (CSM-CR) is the most versatile foldable boat range.
Thanks to its solid aluminium floor and inflatable keel, the FIB-C Series (CSM-CR) offers a great sturdiness with up to 1,15 tons payload capacity.
Colors

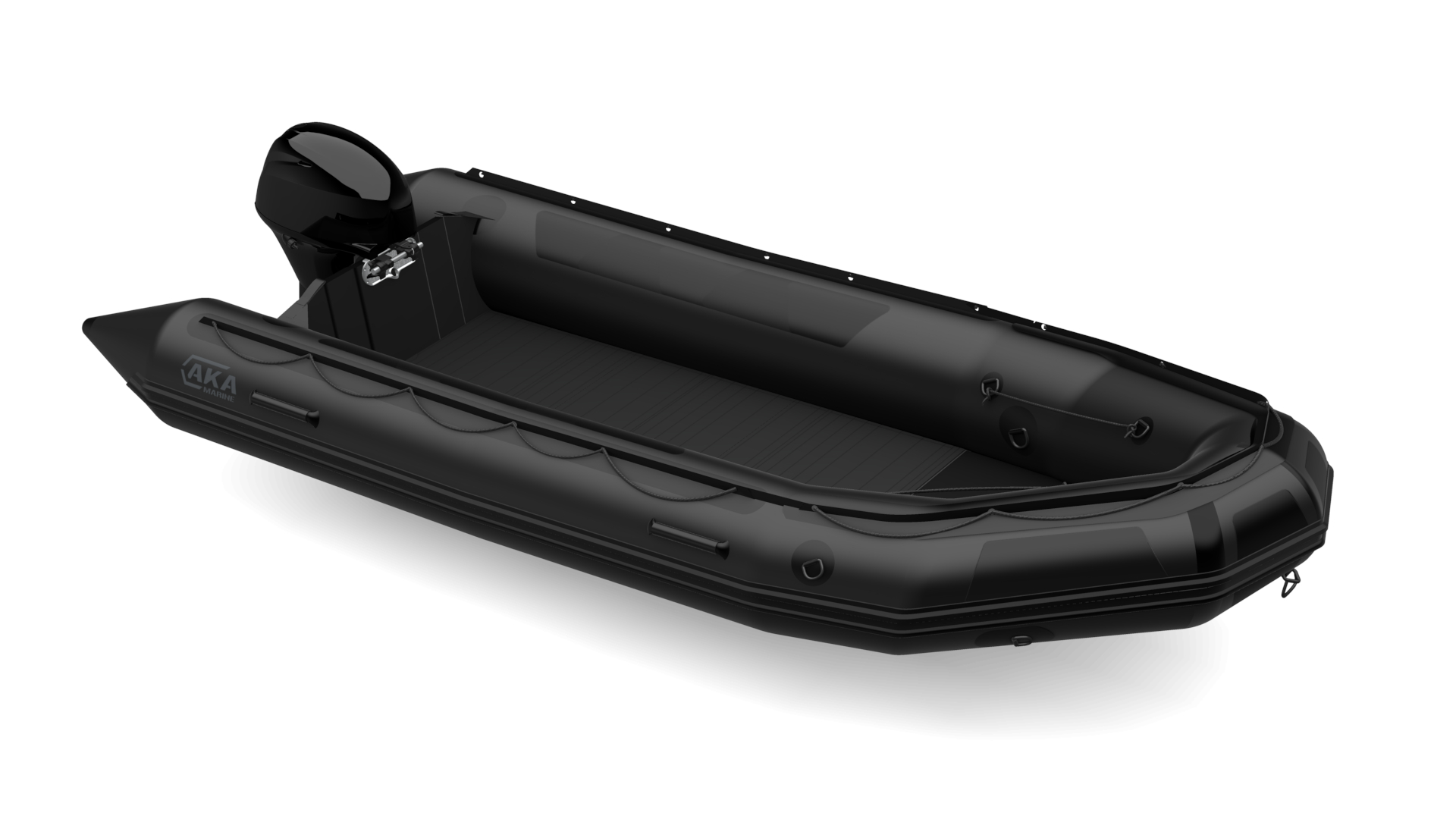

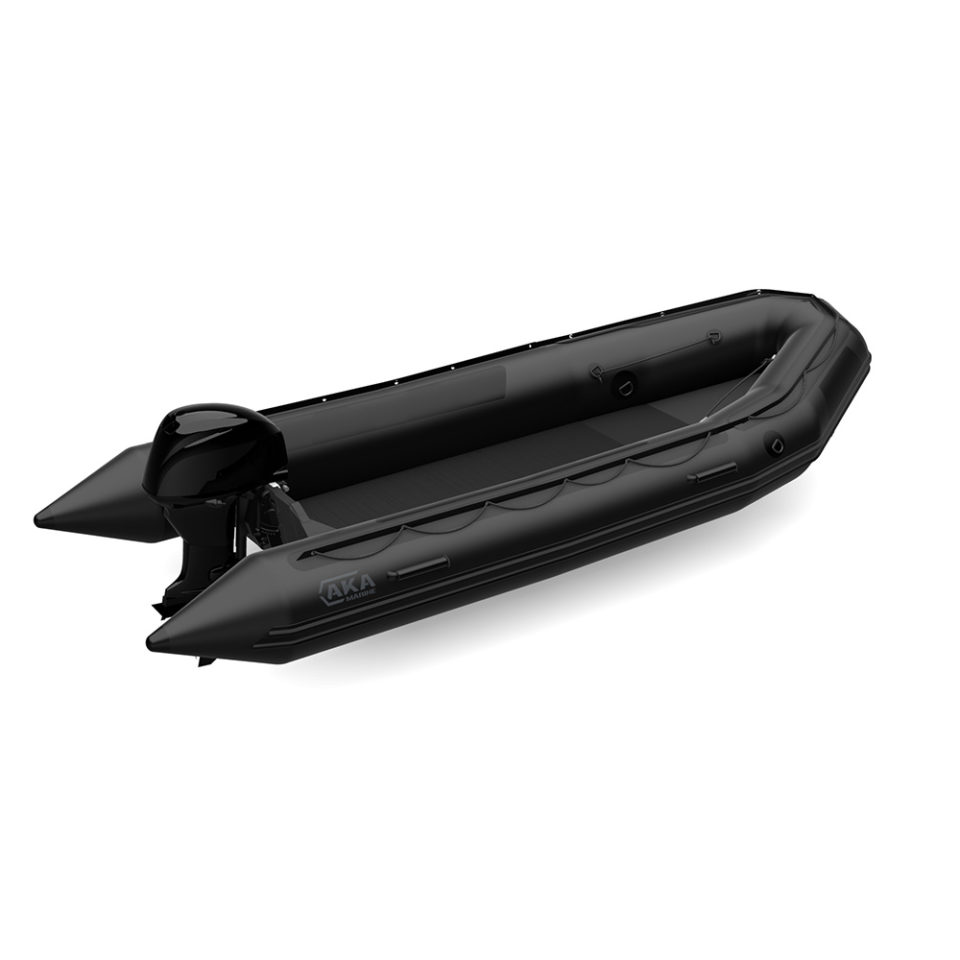

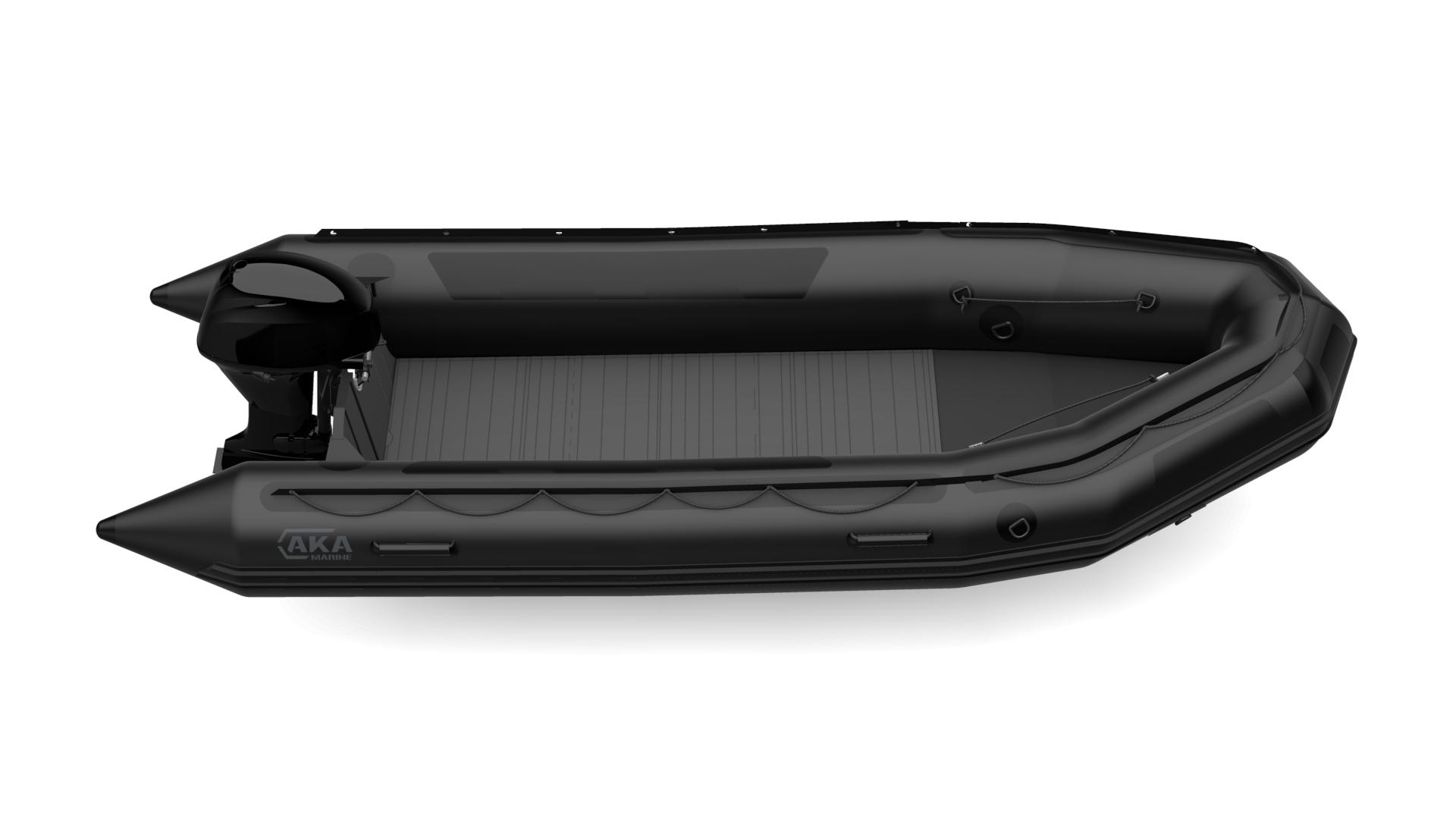

CSM-CR 1100 dtx Black

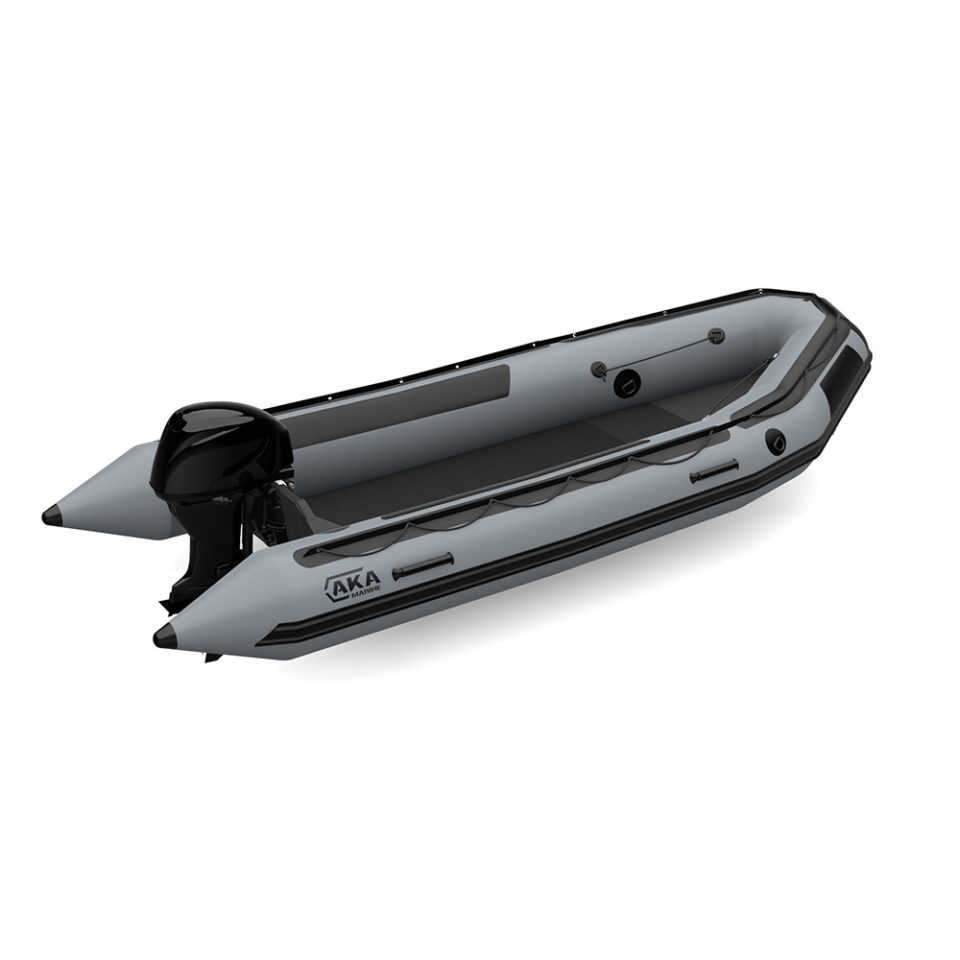

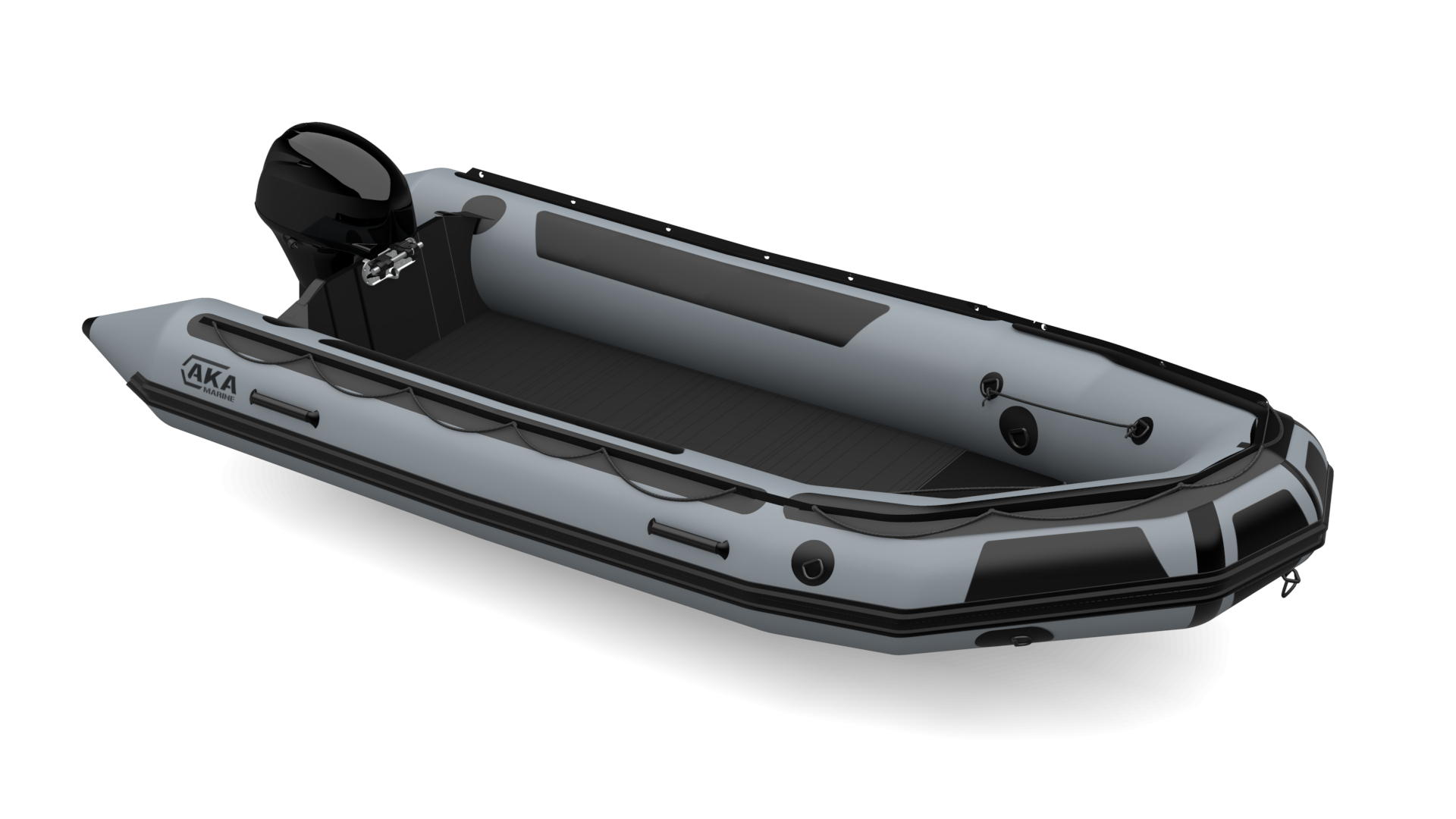

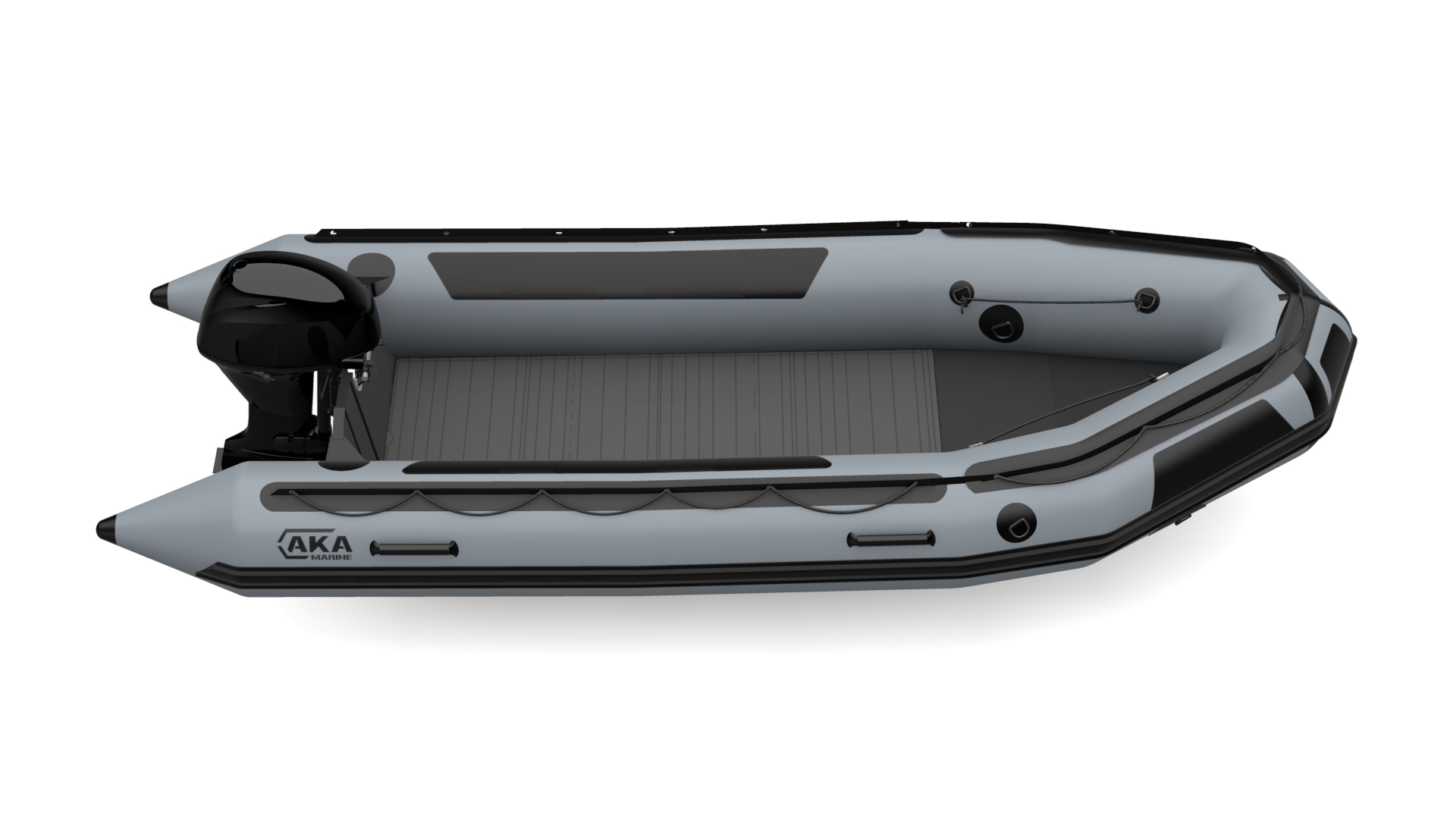

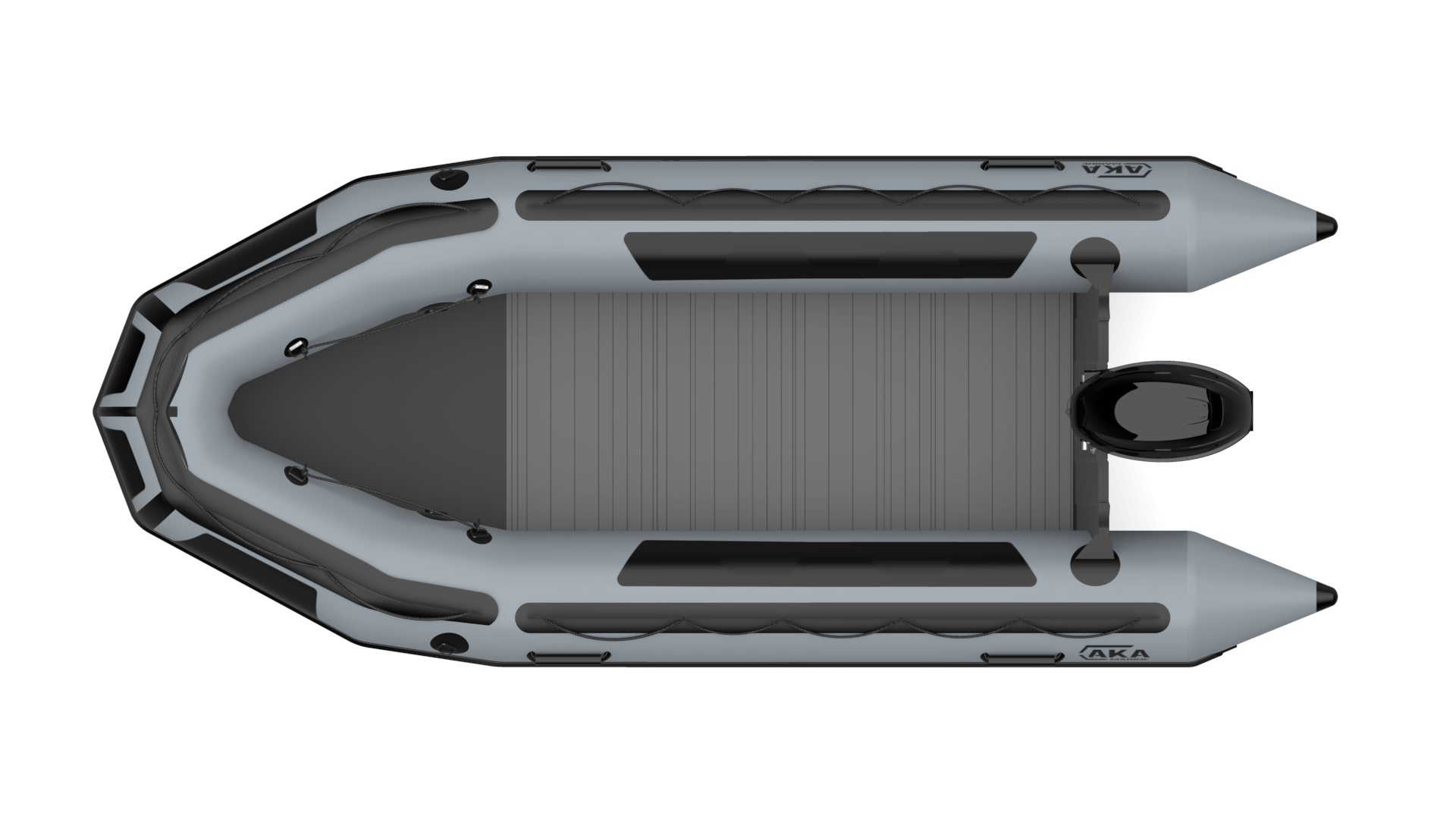

CSM-CR 1100 dtx Medium grey

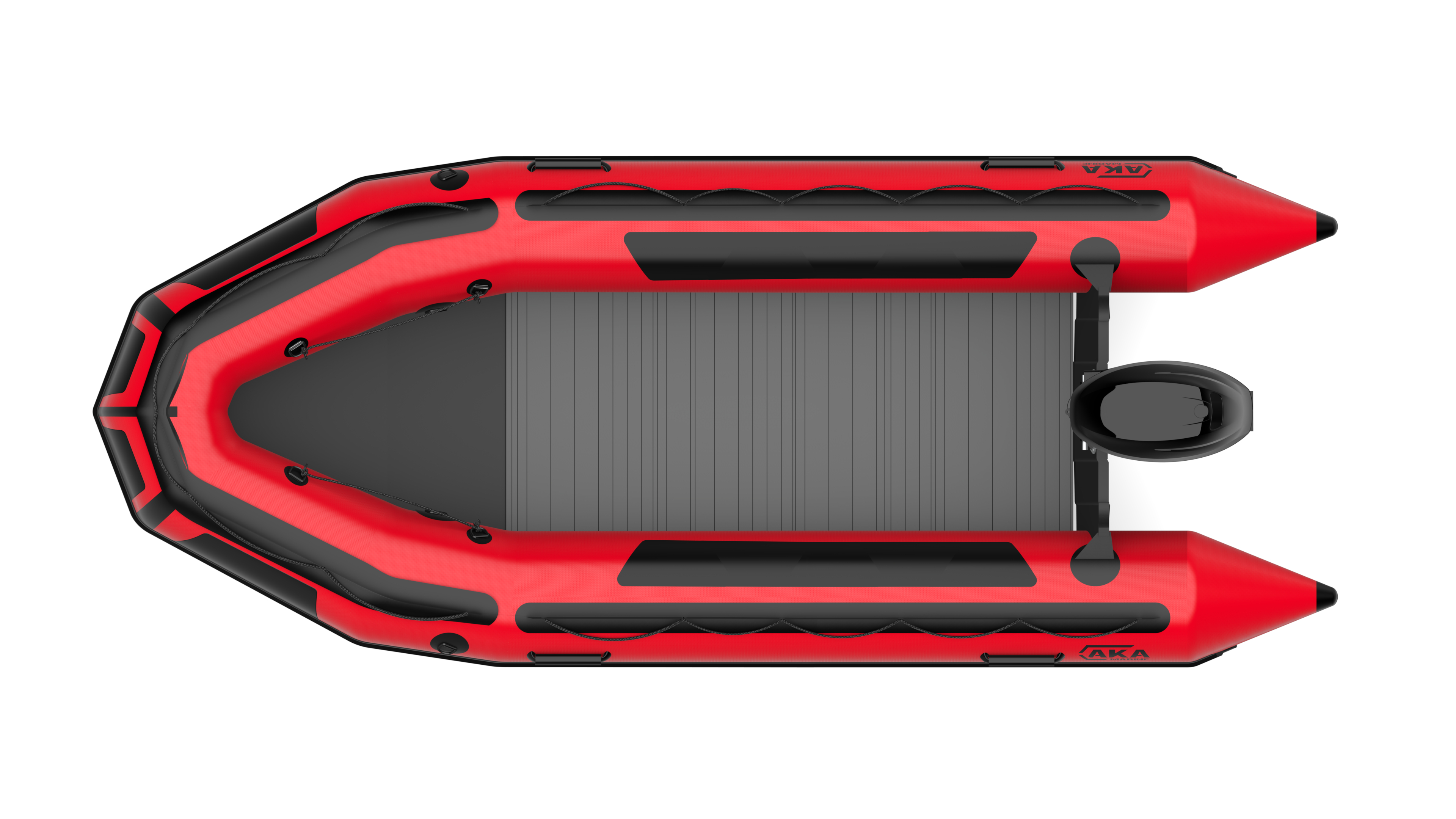

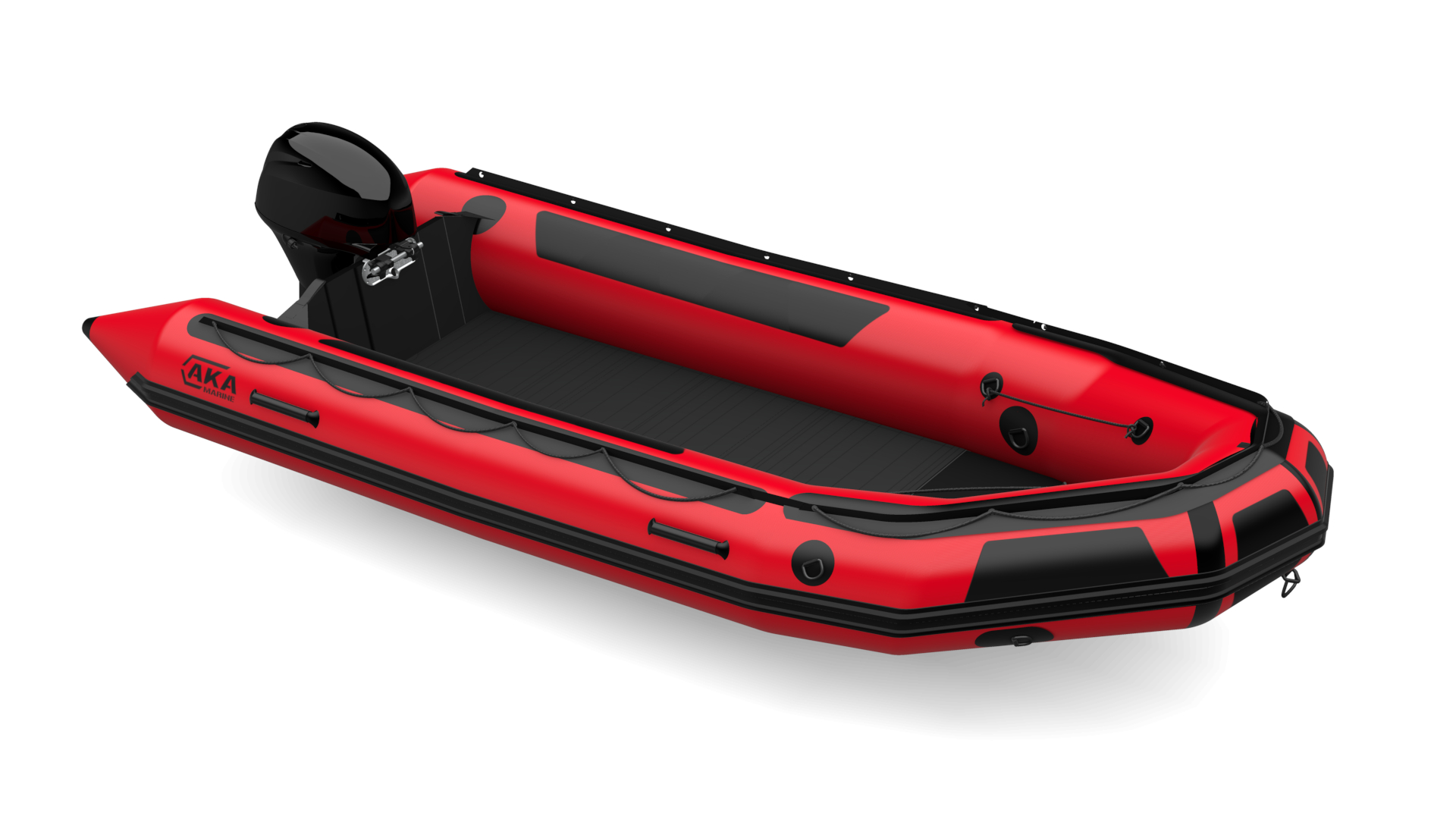

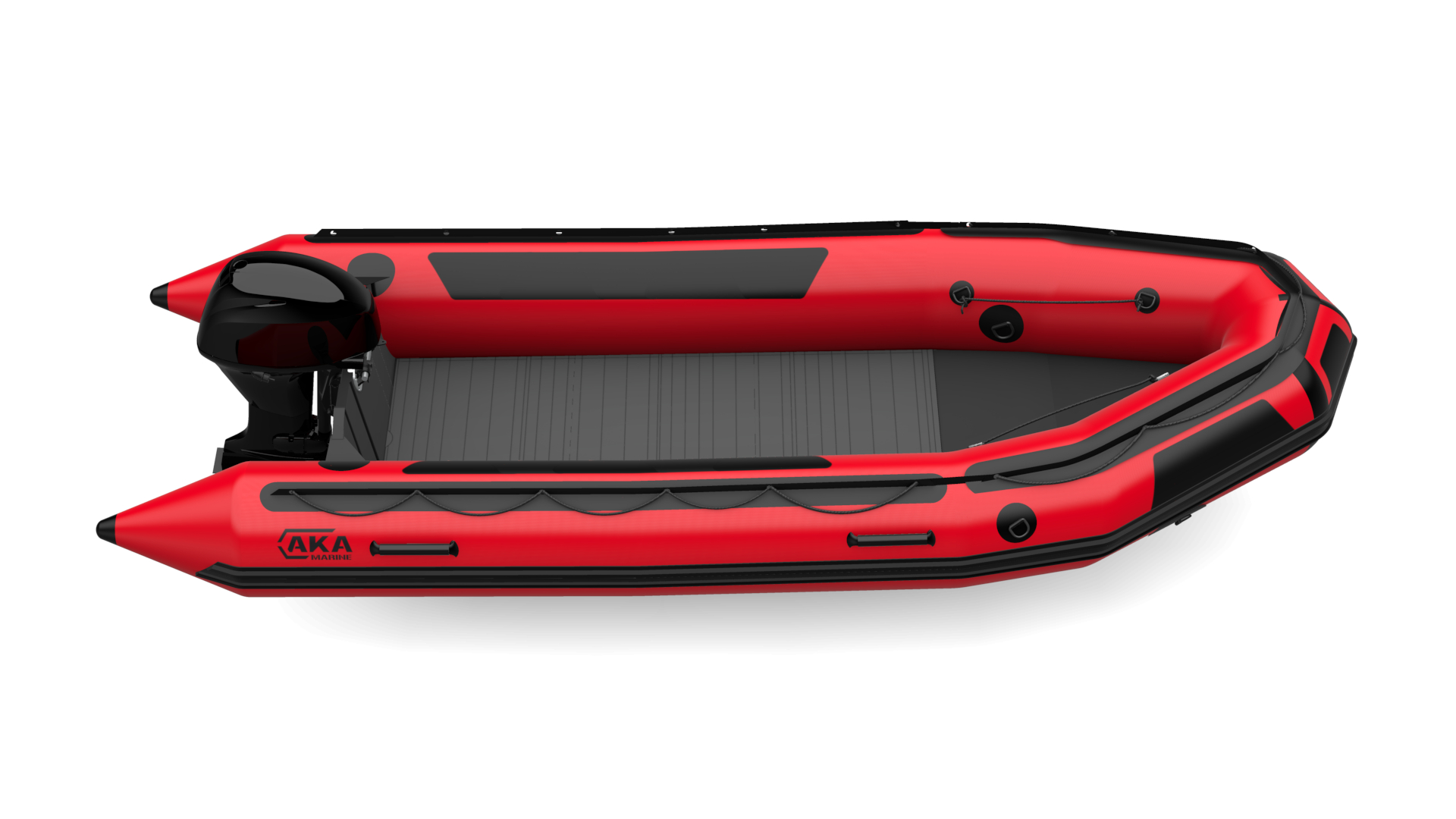

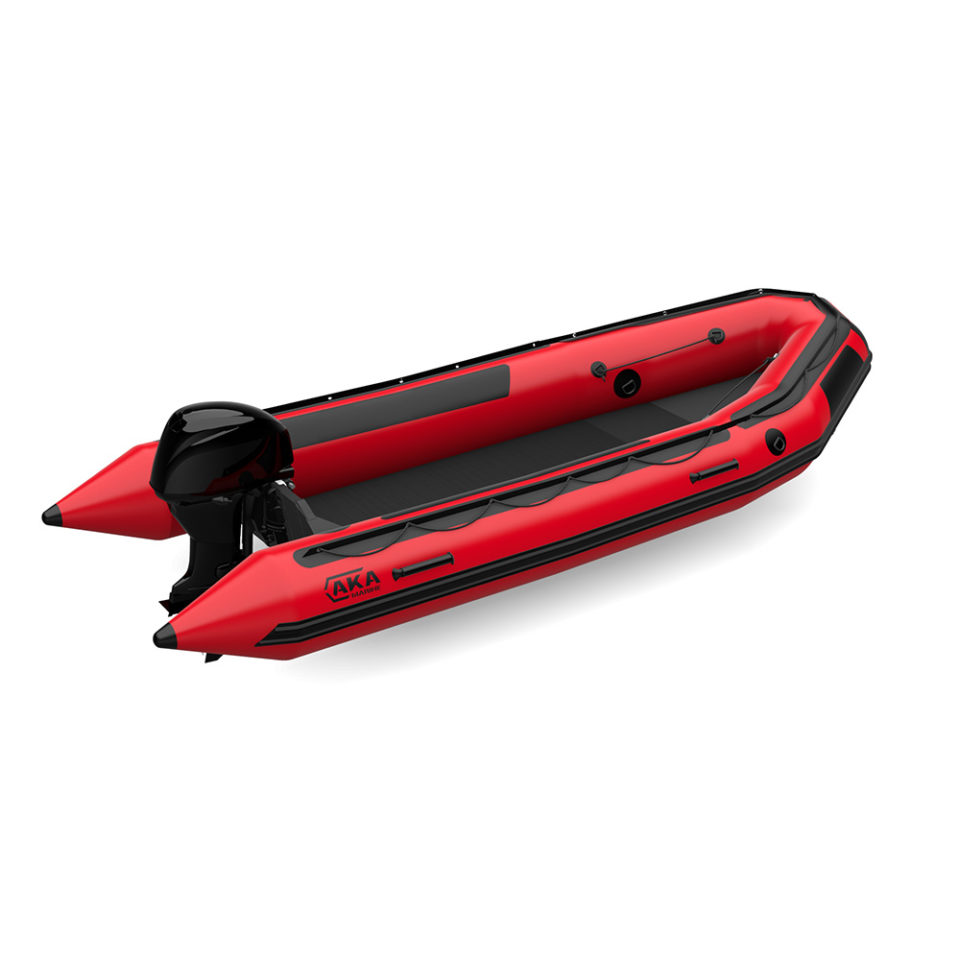

CSM-CR 1100 dtx Red
Key features
- High capacity, foldable, heavy duty work boat
- Solid, anti-skid, aluminum floor for maximum sturdiness
- Heavy Duty bow fender design
- Optimized keel protection
- Tubes are in CSM-CR (Chlorosulfonated Polyethylene – Neoprene)
- Large tube diameter offers great payload capacity
- Lifting capacity

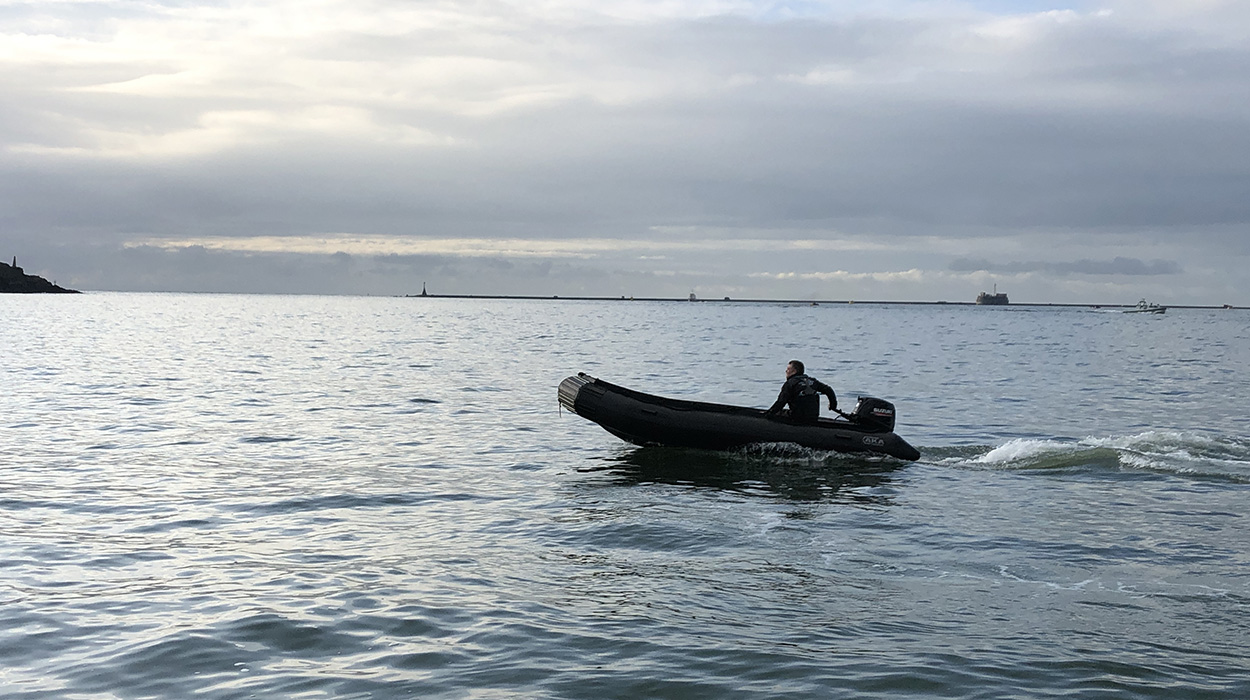

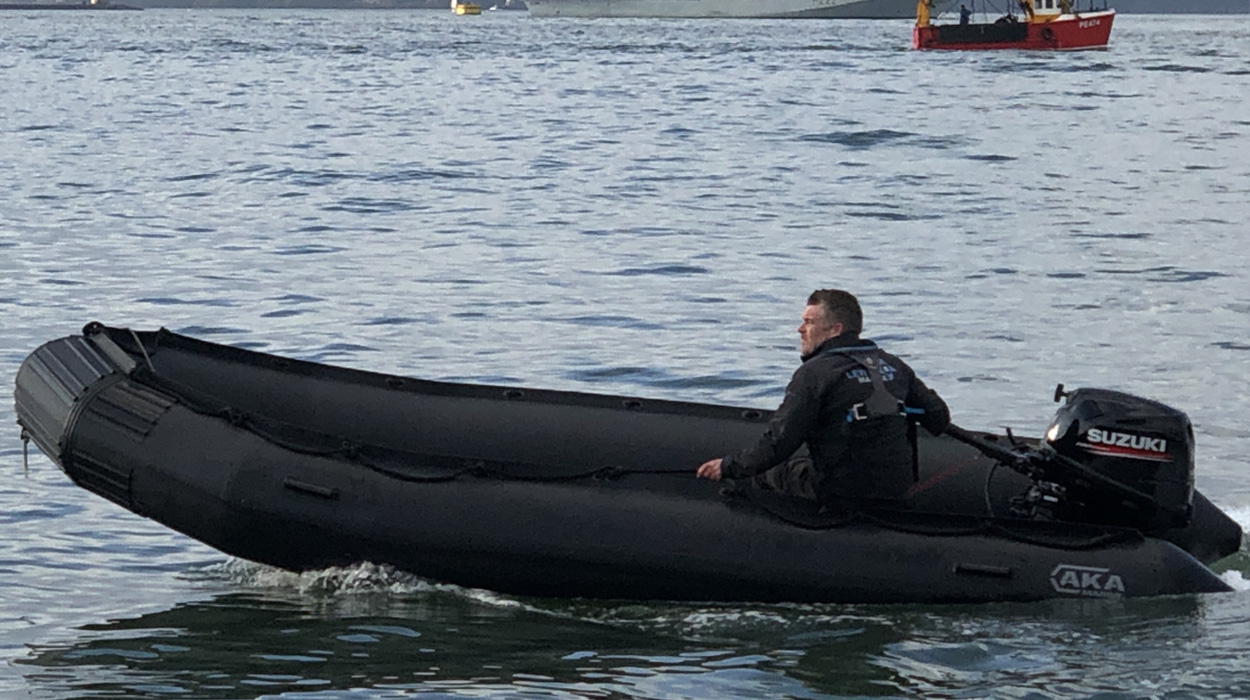

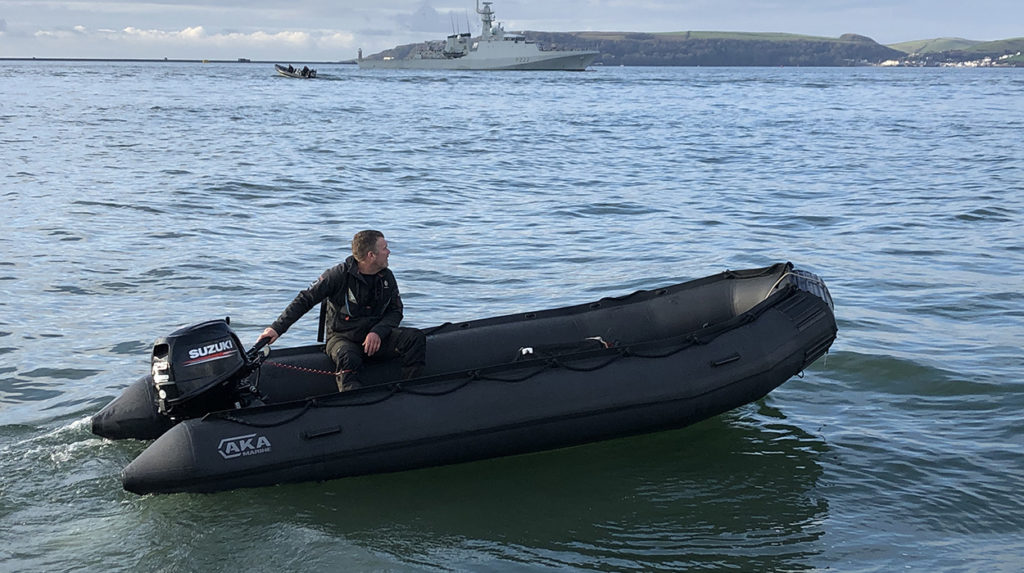

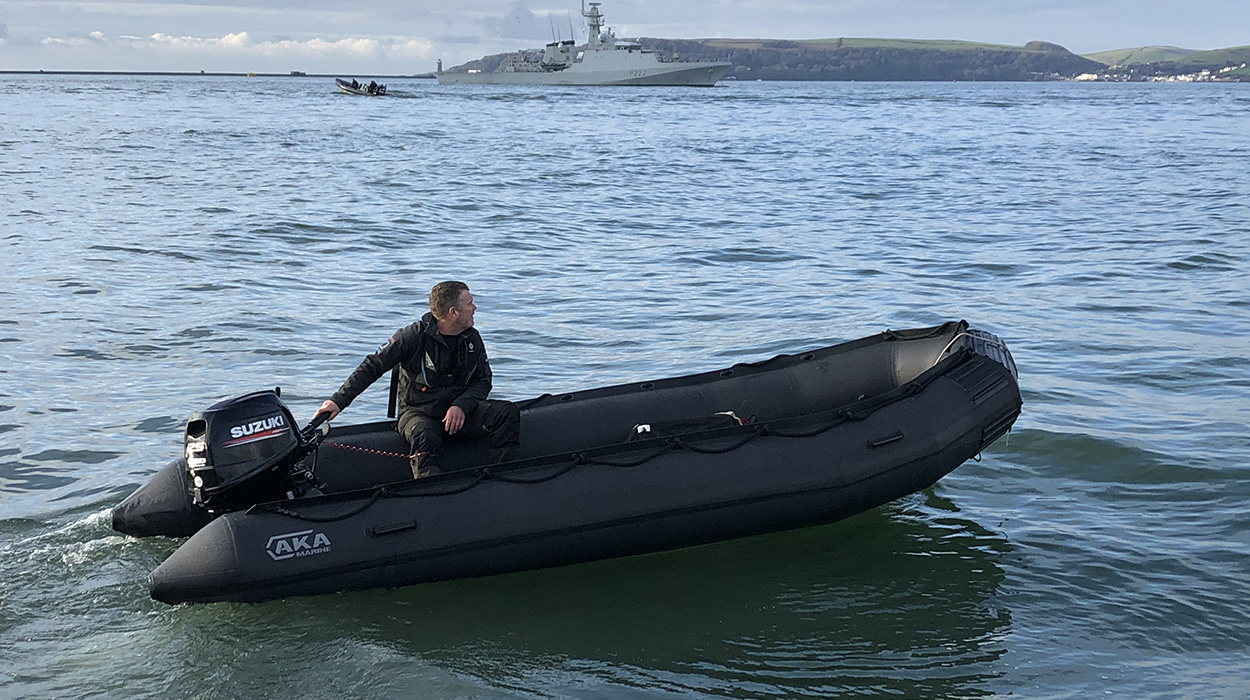

Pictures
Video
Recommended for
Technical specifications
Dimensions
(meters - feets/inches)
Overall length
4,70 - 15,5''
Inside length
3,39 - 11'1''
Overall width
1,90 - 6'3''
Inside width
0,90 - 2'11``
Buoyancy tube diameter
0,50 - 1'8''
Outboard data
Shaft
Long
Average recommended power (Hp)
40
Average recommended power (kW)
30
Max. power allowed (Hp)
60
Max. power allowed (kW)
45
Max. weight of outboard (kg - lbs)
120 - 265
Capacity
Passengers (ISO Cat C)
9
Maximum payload (kg - lbs) Cat C
1100 - 2425
Total weight (kg - lbs)
129 - 284
Airtight compartments
5+1
Folded boat storage dimensions
Shipping dimensions
0,8m3
Floor boards bag dimensions (cm)
112x84x20
Floor boards bag dimensions (feet/inches)
3'8''x2'9''x8''
Tube bag dimensions (cm)
132x73x38
Tube bag dimensions (feet/inches)
4'4''x2'5''x1'3''
Design category
European directive N° 2013/53/ EU
C
Features
Buoyancy tube
- CSM-CR 1100 dtx fabric (Chlorosulfonated Polyethylene – Neoprene)
- Lacing cuff and safety grab lines
- Extra fabric seating pads
- Heavy Duty, anti-chafing, bow fender system
- Leafield inflation valves
- Leafield pressure relief valves
- Large profile rubbing strake
- 4 carry handles
- Bow carry handle
- Large diameter tow rings
- Bow lifting rings
- Paddle retainers
- Reinforced cone ends
Hull
- Inflatable keel with full length bottom strake
- Aluminum floor boards, inc. built-in rails and stringers
- Transom lifting points
- Transom towing points
- Aluminum engine support plate
- 2 High capacity bailers (elephant trunk type)
Standard equipment
- 4 paddles
- Foot pump & pressure gauge
- Repair kit
- Owner’s manual
Optional Accessories
- High debit electric pump
- Flexible fuel tank (35 L / 70 L)
