Rigid inflatable boats
R42-B
Rigid inflatable boat | B-Series
RIB-B Series
As a true Swiss Army knife, the RIB-B Series (PVC or CSM-CR) is the perfect multi-purpose range with a heavy duty bow fender design.
Colors

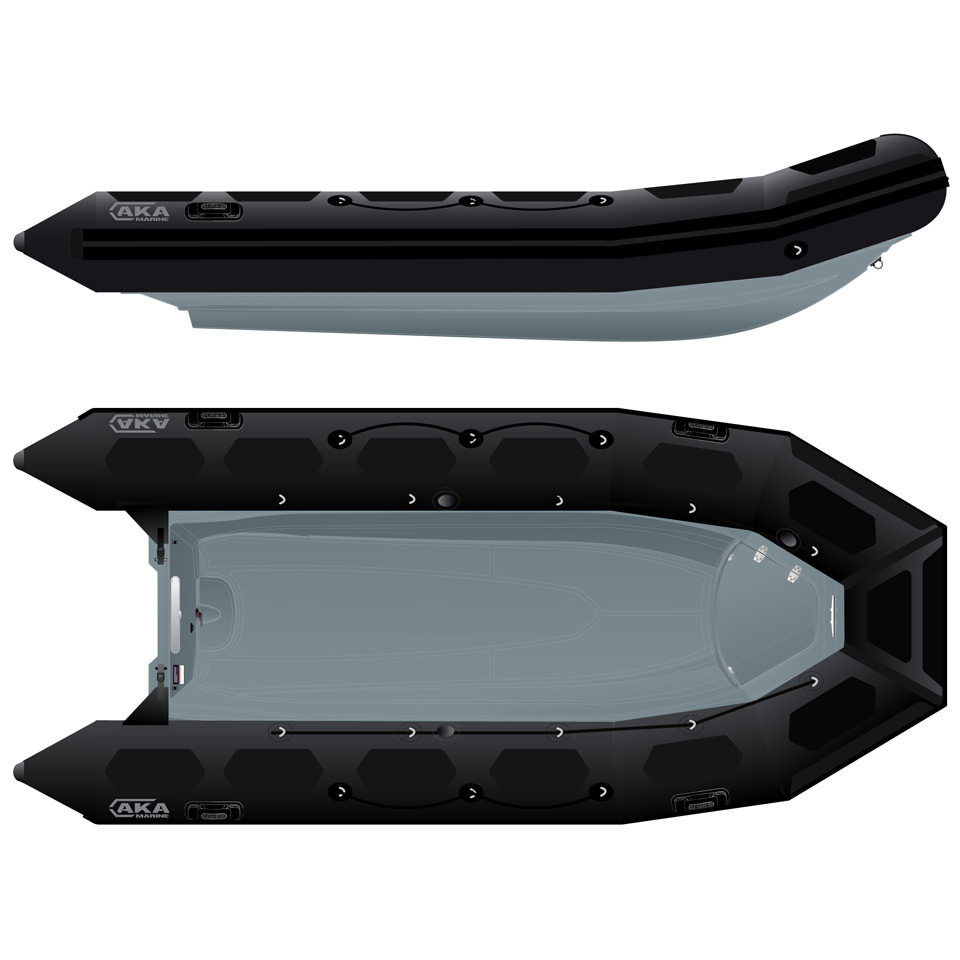

Plastomer 2*1100 dtx or CSM-CR 1670 dtx Black

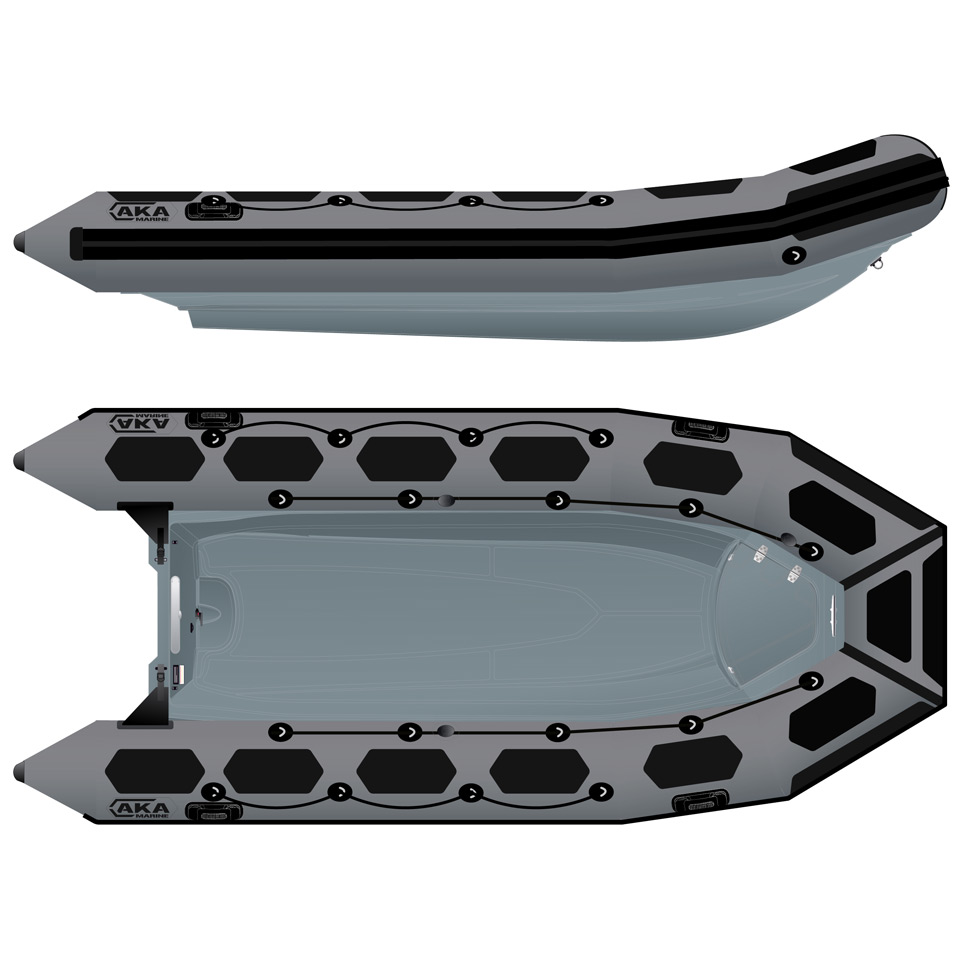

Plastomer 2*1100 dtx or CSM-CR 1670 dtx Medium grey

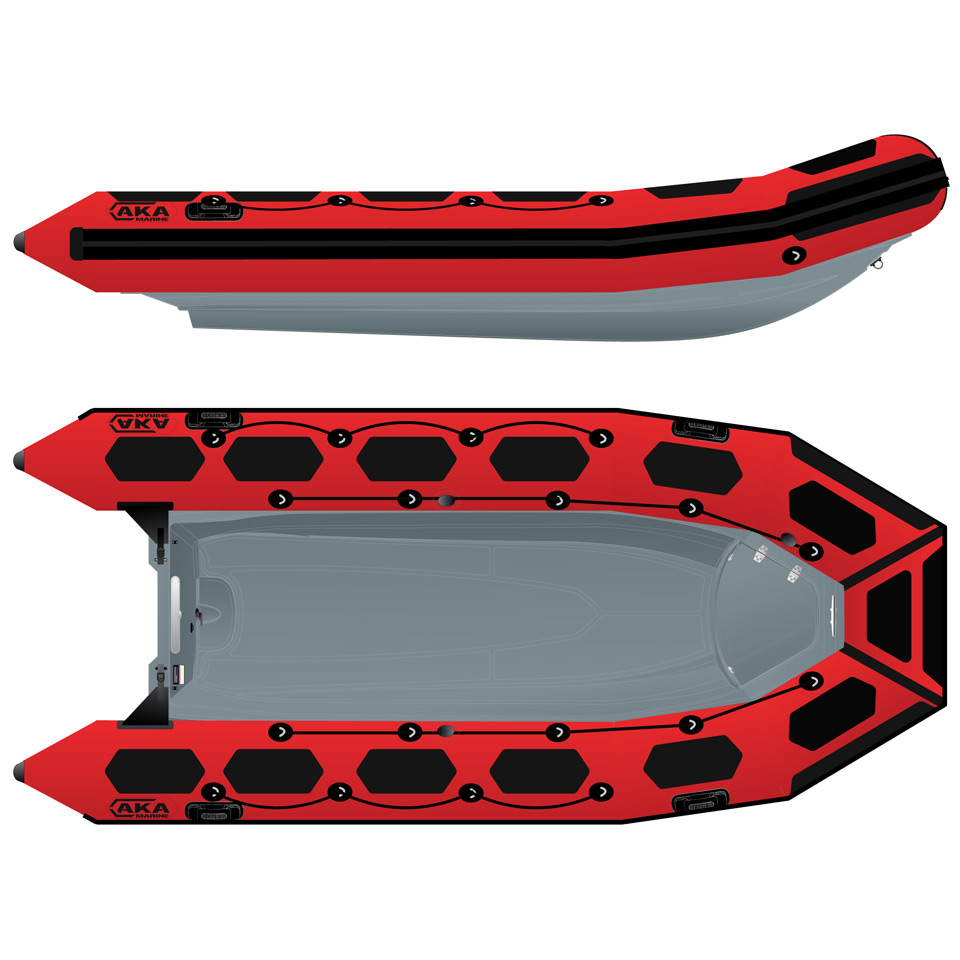

Plastomer 2*1100 dtx Red
CSM-CR 1670 dtx Orange
Key features
- Multi-purpose RIB
- Removable slide-on tubes
- Choice of tubes : Plastomer 2*1100 dtx (Thermo welding technology) or CSM-CR 1670 dtx (Chlorosulfonated Polyethylene – Neoprene)
- Heavy Duty bow fender design
Pictures
Recommended for
Technical specifications
Dimensions
(meters - feets/inches)
Overall length
4,2 - 13'9''
Inside length
2,90 - 9'6''
Overall width
1,90 - 6'3''
Inside width
0,95 - 3'1''
Buoyancy tube diameter
0,455 - 1'6''
Outboard data
Shaft
Long
Min. recommended power (Hp)
15
Min. recommended power (kW)
11
Max. recommended power (Hp)
40
Max. recommended power (kW)
30
Max. power allowed (Hp)
50
Max. power allowed (kW)
37
Max. weight of outboard (kg - lbs)
115 - 254
Max. speed (km/h - mph)
59 - 37
Capacity
Passengers (ISO Cat C)
7
Max payload (kg - lbs) Cat C (ISO14945)
780 - 1720
Total weight (kg - lbs)
181 - 399
Airtight compartments
3
Hull storage dimensions
(meters - feets/inches)
Length
3,63 - 11'11''
Width
1,24 - 4'1''
Height
0,69 - 2'3''
Hull angle
20°
Design category
European directive N° 2013/53/ EU
C
Features
Buoyancy tube
- CSM-CR 1670 dtx fabric (Chlorosulfonated Polyethylene – Neoprene)
- Removable tube system
- Anti-skid patches
- Heavy Duty, anti-chafing, bow fender system
- Polyester internal / external Grab line
- Leafield inflation valves
- Leafield pressure relief valves
- Large profile rubbing strake
- 4 external handles
- Reinforced cone ends
Hull
- Fibreglass deep V-shaped hull
- Moulded non-skid deck
- Bow locker
- 1 Bow D-ring
- 2 Towing rings
- 1 Aluminum engine support plate
- 1 High volume self-bailer
- 1 Mooring bollard (cleat on R42)
- 4 Lifting points
Standard equipment
- 2 paddles
- Foot pump & pressure gauge
- Repair kit
- Owner’s manual
Optional accessories
- GRP Console standard
- GRP Console Large
- GRP Bolster seat
- Single stainless steel bolster
- Jockey seat
- Roll-bar
- T-TOP
- Bow rail
- PVC keel protection
- Diving cylinders holder
