Rigid inflatable boats

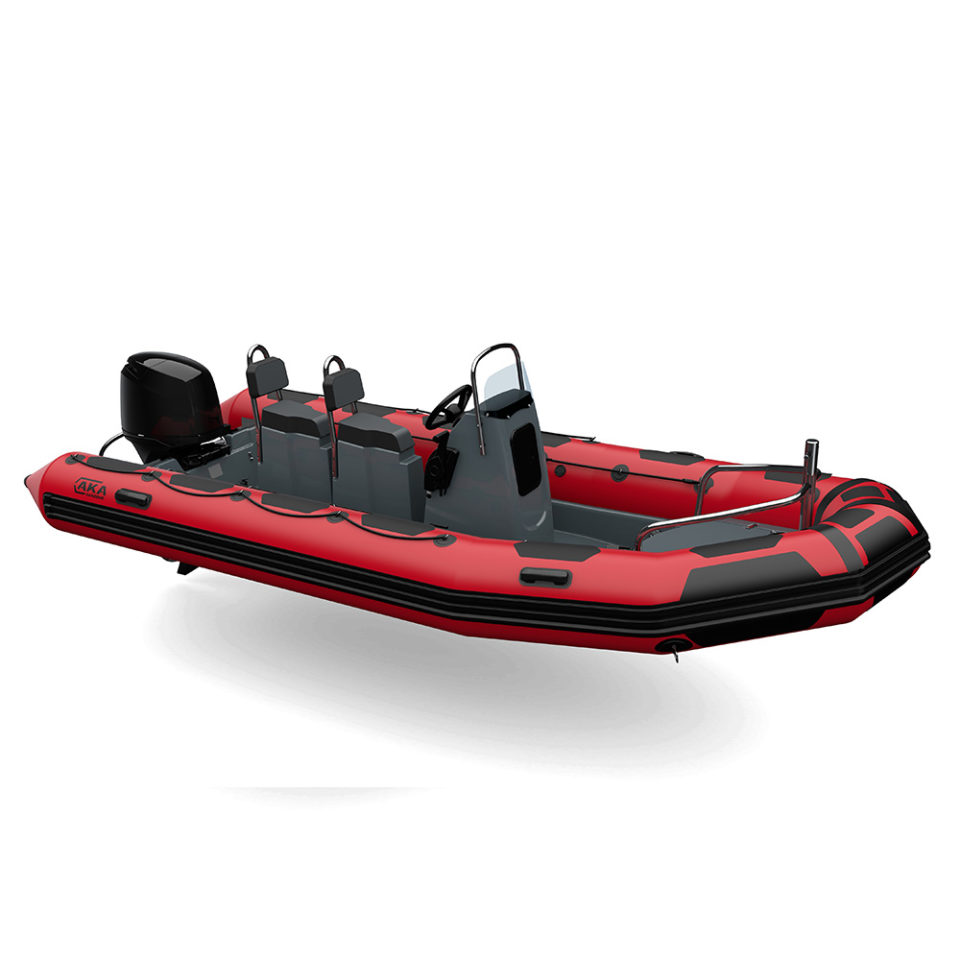

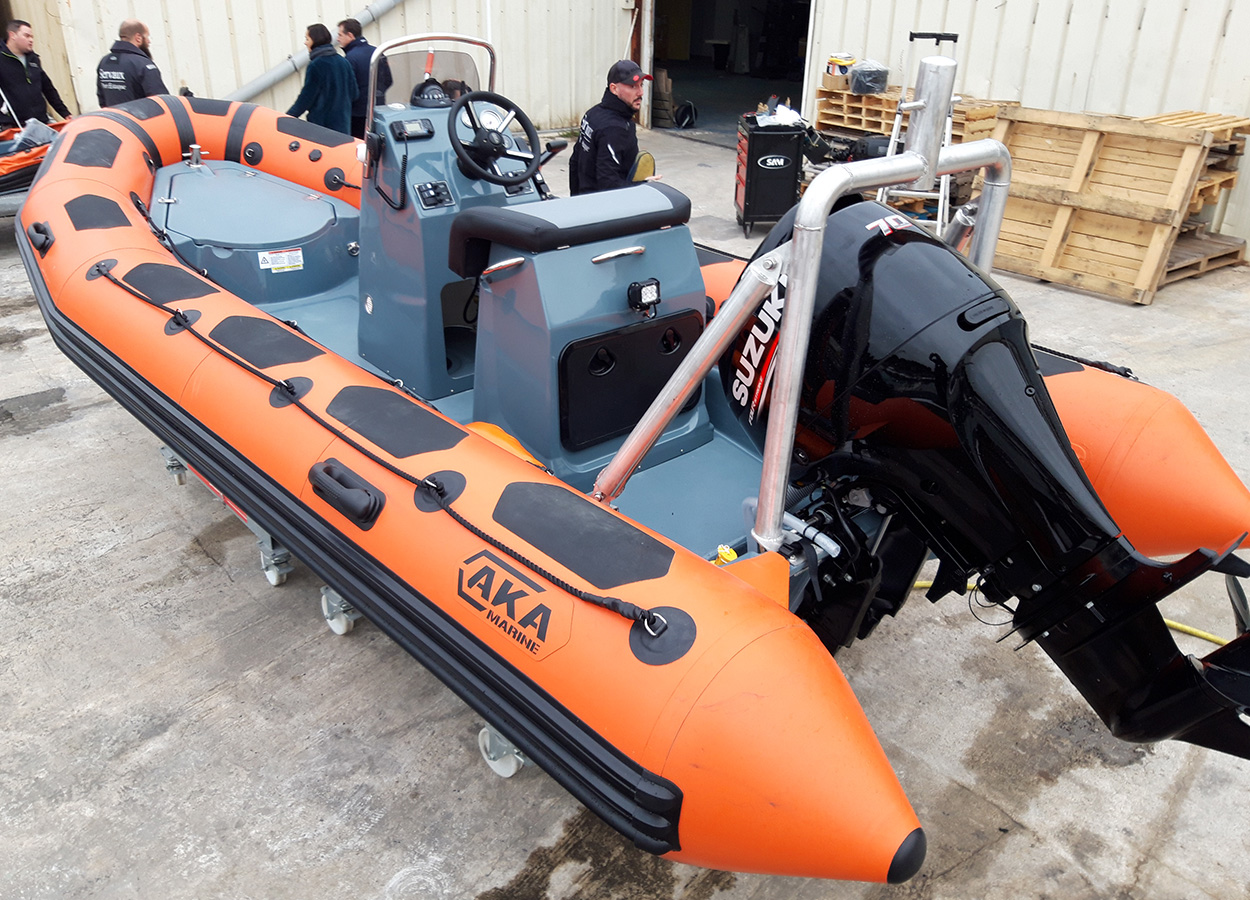

R52-B
Rigid inflatable boat | B-Series
RIB-B Series
As a true Swiss Army knife, the RIB-B Series (PVC or CSM-CR) is the perfect multi-purpose range with a heavy duty bow fender design.
It can access remote location thanks to its 75L built-in fuel tank.
Colors
Plastomer 2*1100 dtx or CSM-CR 1670 dtx Black

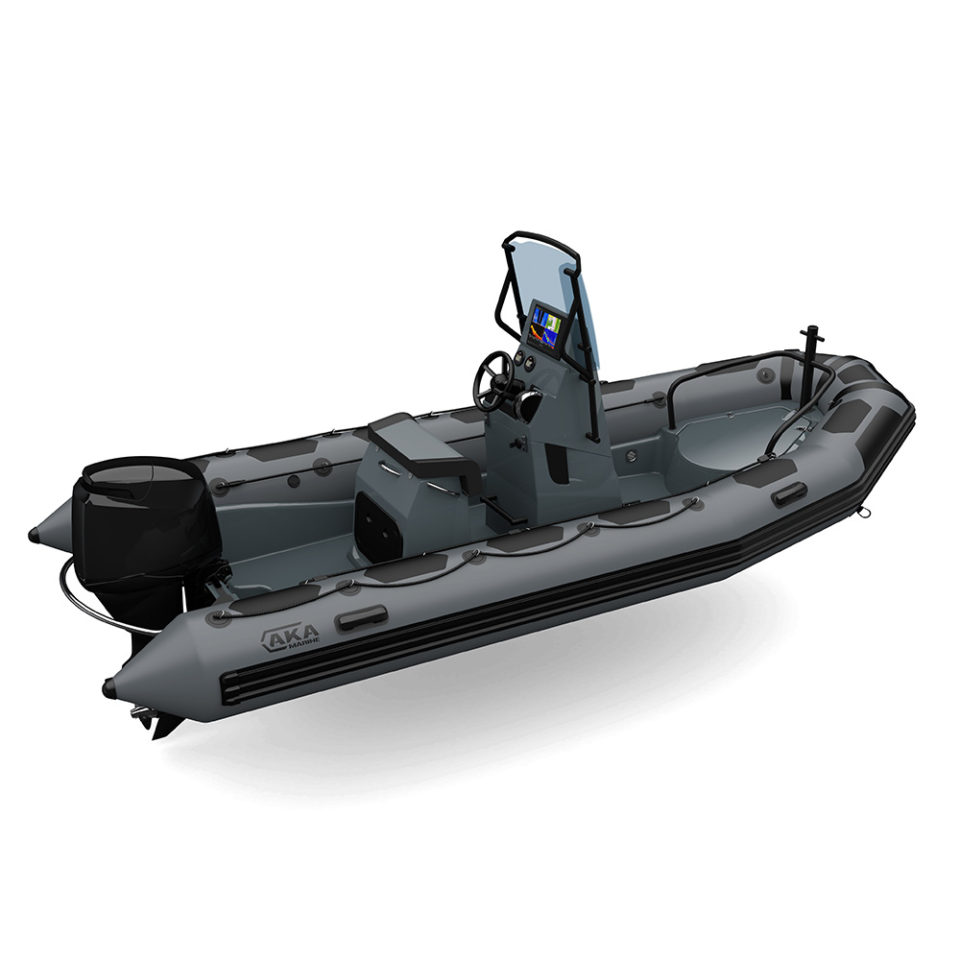

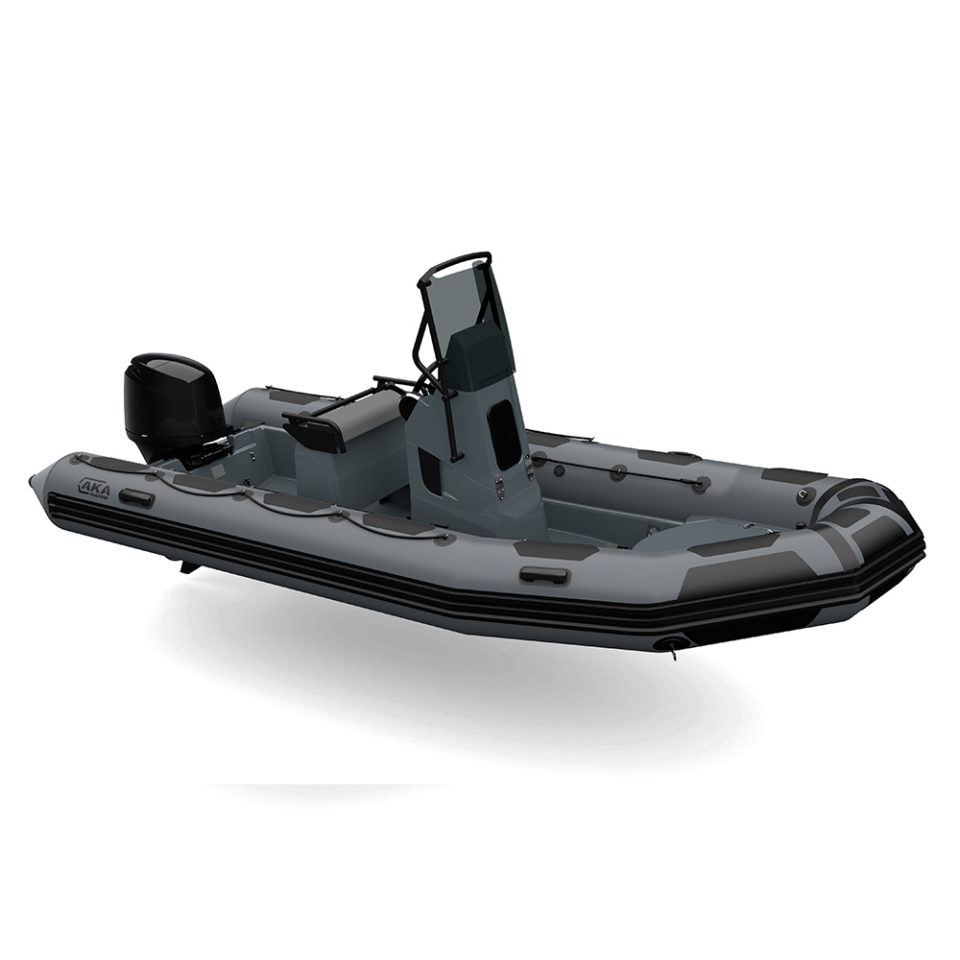

Plastomer 2*1100 dtx or CSM-CR 1670 dtx Medium grey

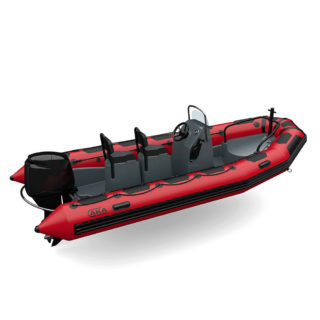

Plastomer 2*1100 dtx Red
CSM-CR 1670 dtx Orange
Key features
- Multi-purpose RIB
- Removable slide-on tubes
- Choice of tubes : Plastomer 2*1100 dtx (Thermo welding technology) or CSM-CR 1670 dtx (Chlorosulfonated Polyethylene – Neoprene)

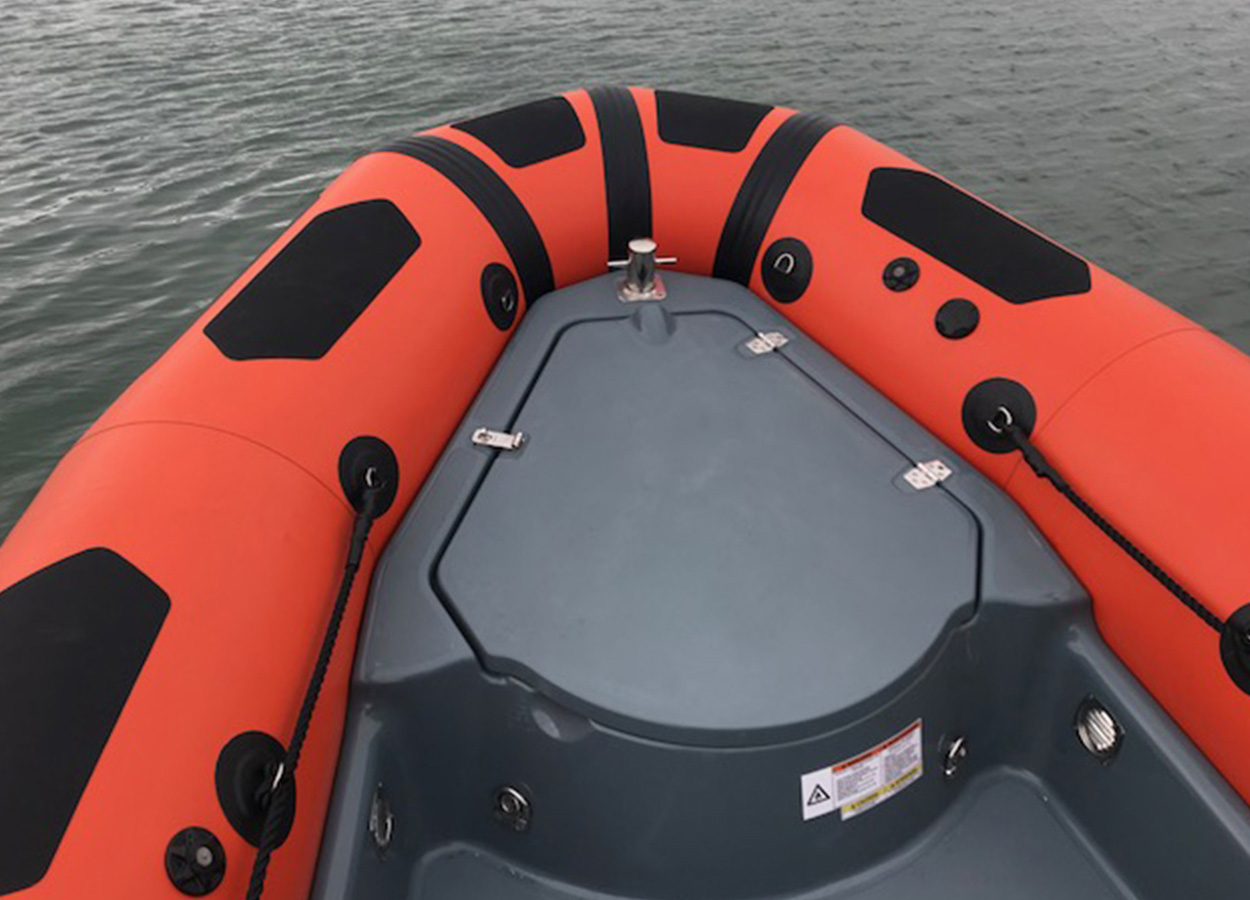

- Heavy Duty bow fender design
- 75 L built-in fuel tank (R52-B)

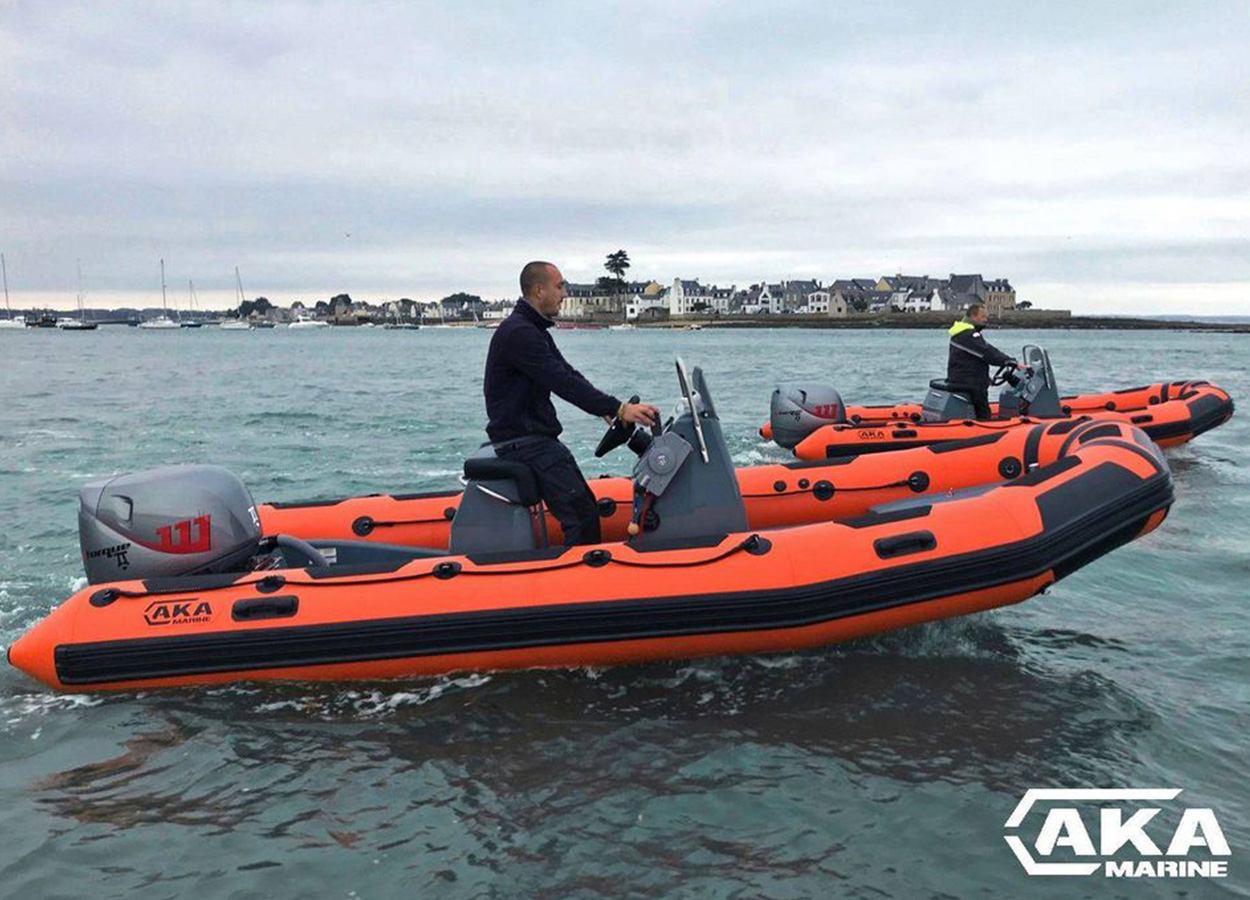

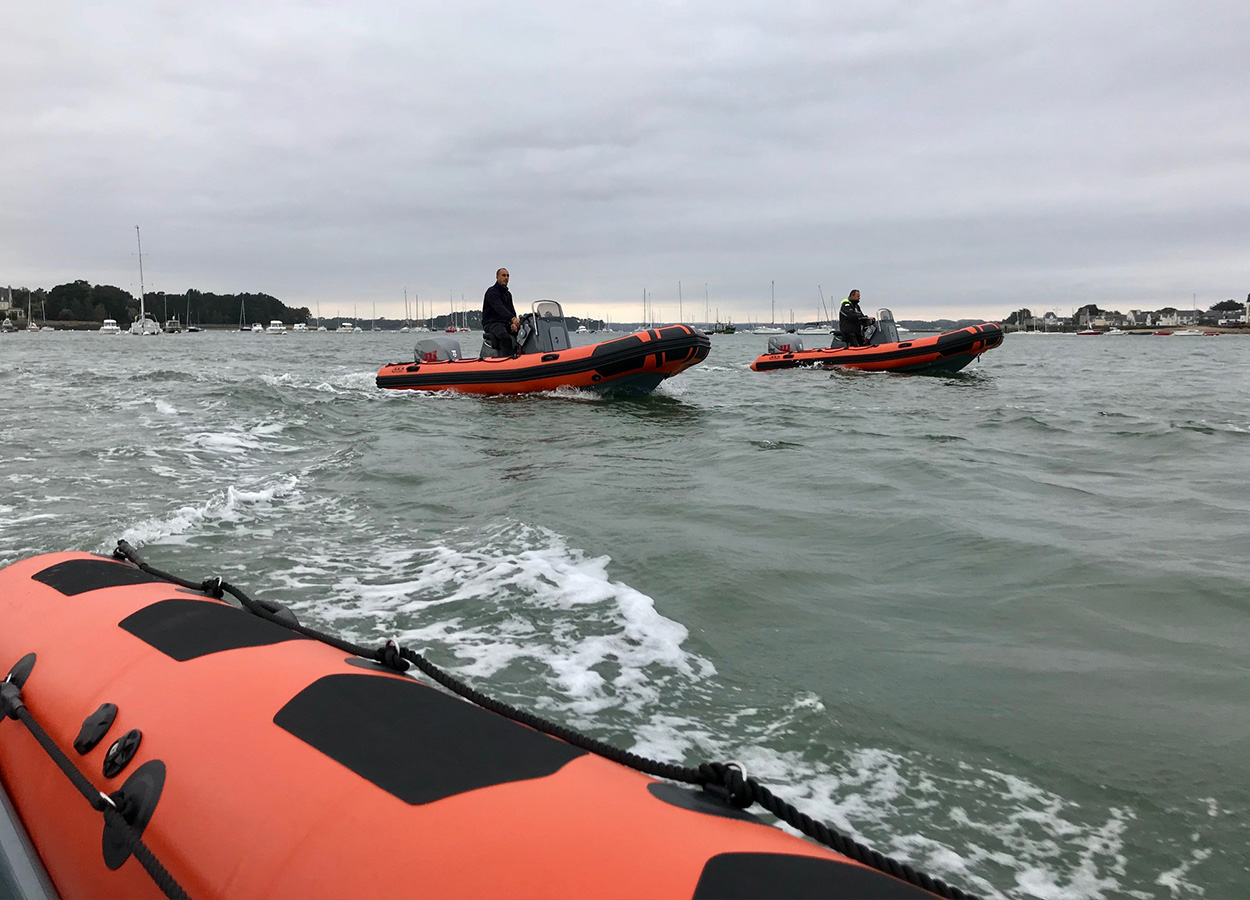

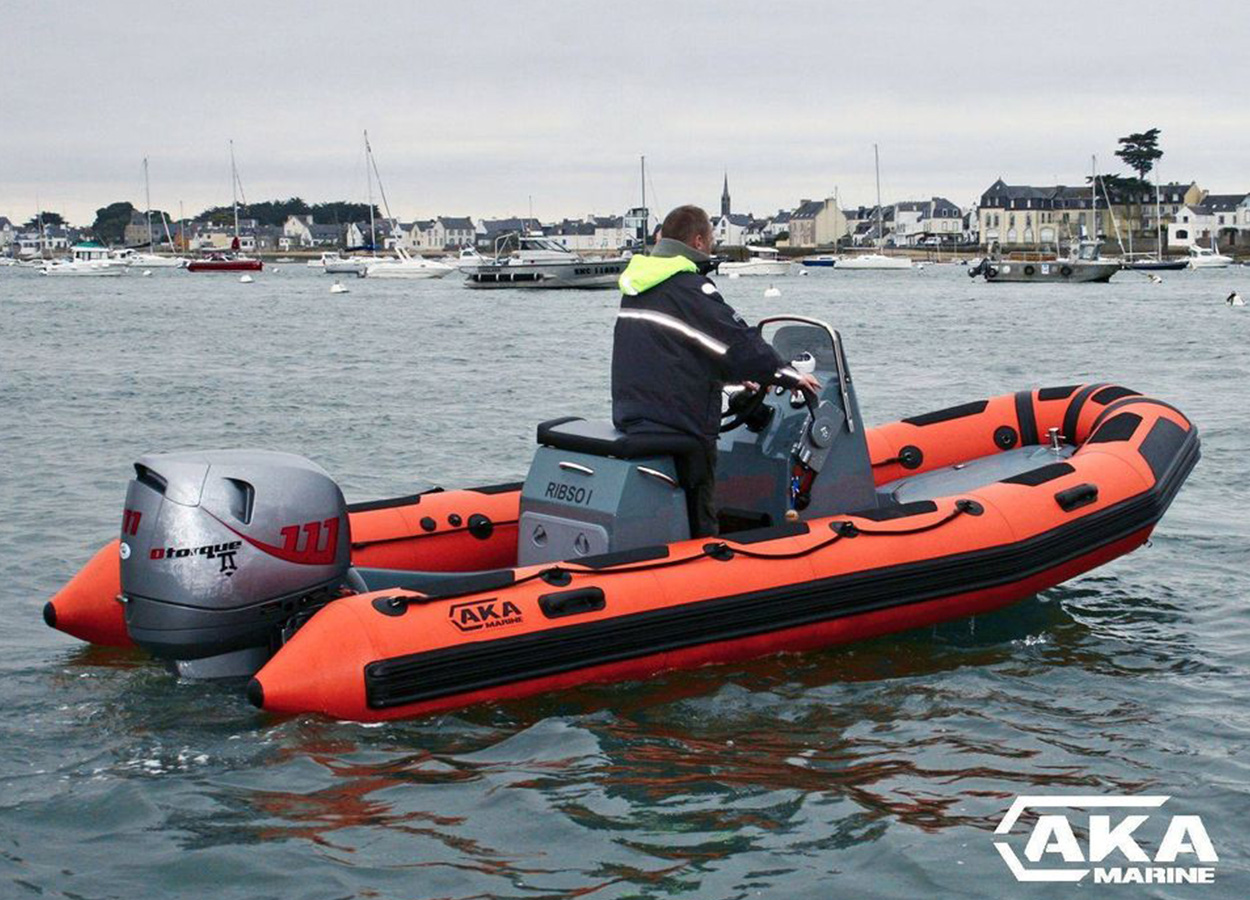

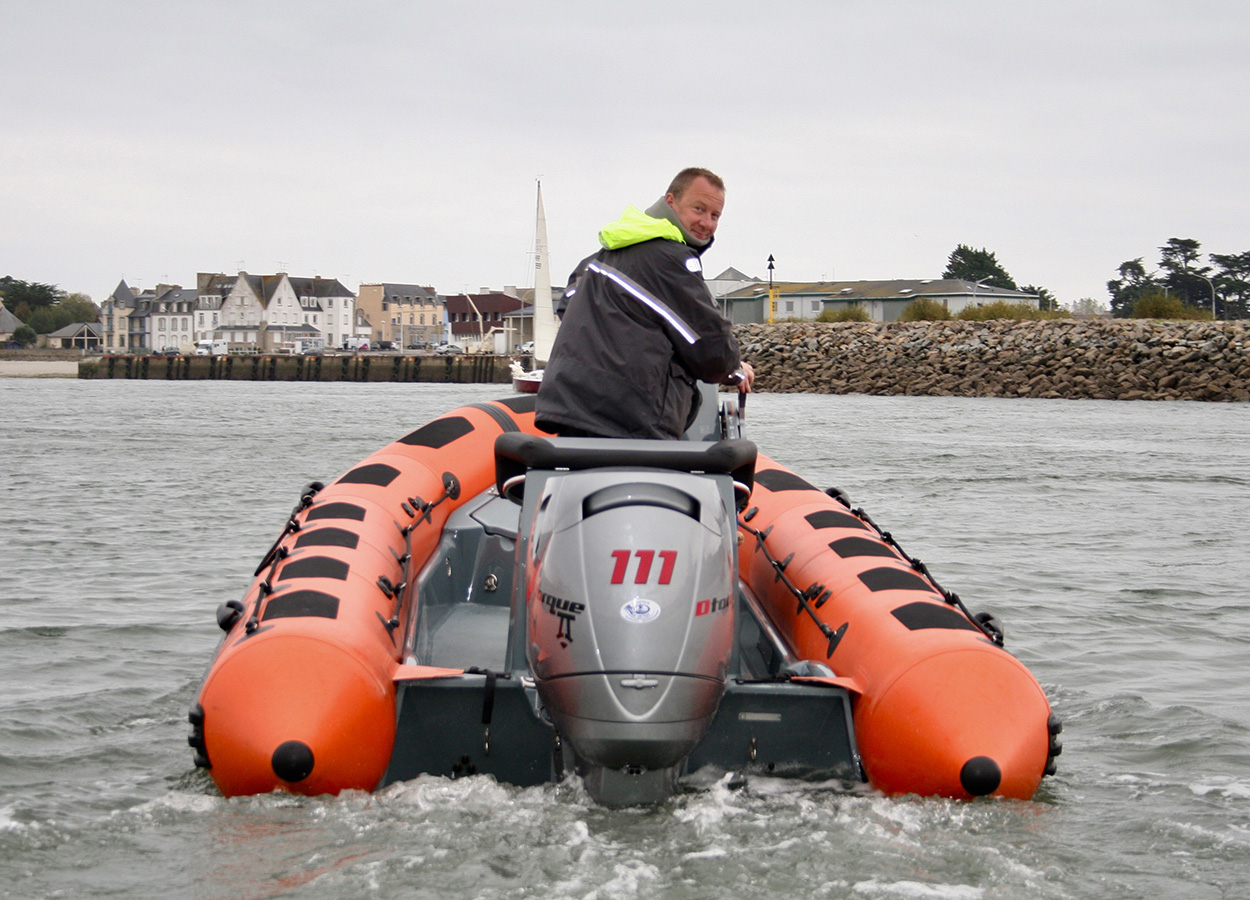

Pictures
Recommended for
Technical specifications

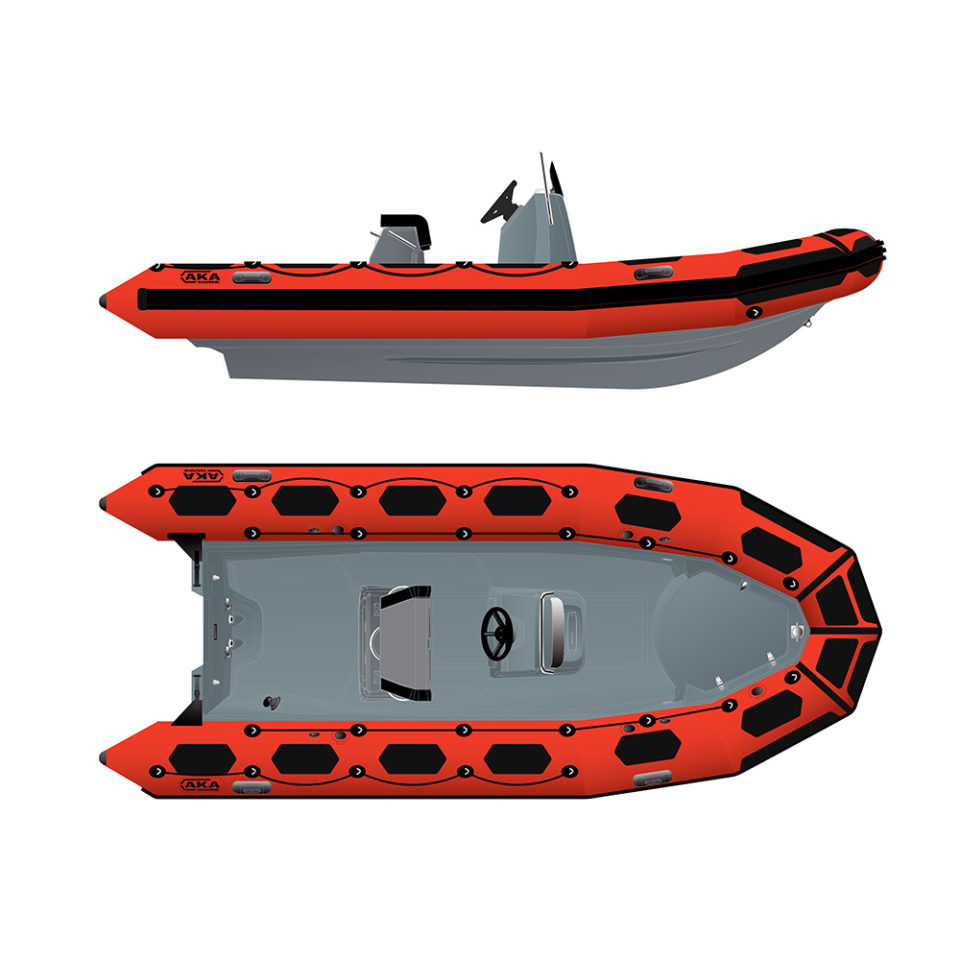

Dimensions
(meters - feets/inches)
Overall length
5,2 - 17'2''
Inside length
4,02 - 13'2''
Overall width
2,2 - 7'3''
Inside width
1,2 - 3'11''
Buoyancy tube diameter
0,5 - 1'8''
Outboard data
Shaft
Long
Min. recommended power (Hp)
40
Min. recommended power (kW)
30
Max. recommended power (Hp)
70
Max. recommended power (kW)
53
Max. power allowed (Hp)
90
Max. power allowed (kW)
67
Max. weight of outboard (kg - lbs)
200 - 441
Max. speed (km/h - mph)
68 - 42
Capacity
Passengers (ISO Cat C)
12
Maximum payload (kg - lbs) Cat C
1390 - 3064
Total weight (kg - lbs)
315 - 694
Airtight compartments
5
Hull storage dimensions
(meters - feets/inches)
Length
4,46 - 14'8''
Width
1,53 - 5'0''
Height
0,81 - 2'8''
Hull angle
24,5°
Design category
European directive N° 2013/53/ EU
C
Features
Buoyancy tube
- CSM-CR 1670 dtx fabric (Thermo welding technology)
- Removable tube system
- Anti-skid patches
- Heavy Duty, anti-chafing, bow fender system
- Polyester internal / external Grab line
- Leafield inflation valves
- Leafield pressure relief valves
- Large profile rubbing strake
- 4 external handles
- Reinforced cone ends
Hull
- Fibreglass deep V-shaped hull
- Moulded non-skid deck
- Bow locker
- 1 Bow D-ring
- 2 Towing rings
- 1 Aluminum engine support plate
- 2 High volume self-bailer
- 1 Mooring bollard
- 4 Lifting points
Standard equipment
- Built-in fuel tank (75litres) + fuel/water separator
- Removable storage box
- 2 paddles
- Foot pump & pressure gauge
- Repair kit
- Owner’s manual
Optional accessories
- GRP Console standard
- GRP Console Large
- GRP Bolster seat
- Single stainless steel bolster
- Jockey seat
- Roll-bar
- T-TOP
- Bow rail
- PVC keel protection
- Diving cylinders holder
