Rigid inflatable boats
R57-B
Rigid inflatable boat | B-Series
RIB-B Series
As a true Swiss army knife, the RIB-B Series (available in CSM-CR) is the most versatile in its class.
R57-B features a self-bailing deck, an under-deck cable routing and removable slide-on tubes.
Colors
CSM-CR 1670 dtx Black
CSM-CR 1670 dtx Medium grey
CSM-CR 1670 dtx Orange
Key features
- Multi-purpose RIB
- Long range autonomy (100 L built-in fuel tank)
- Under-deck cable routing
- Self-bailing deck
- Tubes are in CSM-CR (Chlorosulfonated Polyethylene – Neoprene)
- Removable, large tube diameter, slide-on tubes
Recommended for
Technical specifications
Dimensions
(meters - feets/inches)
Overall length
5,70 - 18'8''
Inside length
4,25 - 13'11''
Overall width
2,54 - 8'4''
Inside width
1,39 - 4'7''
Buoyancy tube diameter
0,575 - 1'11``
Outboard data
Shaft
Long
Min. recommended power (Hp)
70
Min. recommended power (kW)
52
Max. recommended power (Hp)
115
Max. recommended power (kW)
84
Max. power allowed (Hp)
130
Max. power allowed (kW)
96
Max. weight of outboard (kg - lbs)
225 – 496
Capacity
Passengers (ISO B/C)
12
Max payload* (kg-lbs) Cat C (ISO14945)
1540 - 3395
Max payload* (kg-lbs) Cat B (ISO14945)
N/A
Total weight (kg - lbs)
465 – 1025
Airtight compartments
5
Hull storage dimensions
(meters - feets/inches)
Length
4,55 - 14'11''
Width
1,70 - 5'7''
Height
1,03 - 3'5’’
Hull angle
24°
Design category
European directive N° 2013/53/EU
C
Twin-engine data
Shaft
N/A
Max. power allowed (Hp)
N/A
Max. power allowed (kW)
N/A
Max. weight of outboard (kg - lbs)
N/A
* The maximum payload rating has been calculated according to ISO standard (14945). Operating at or near maximum payloads is only advised in calm water and at reduced speeds. B category maximum payload specifications may vary according to the outboard and equipment configuration, and will go through individual certification by notified body.
Features

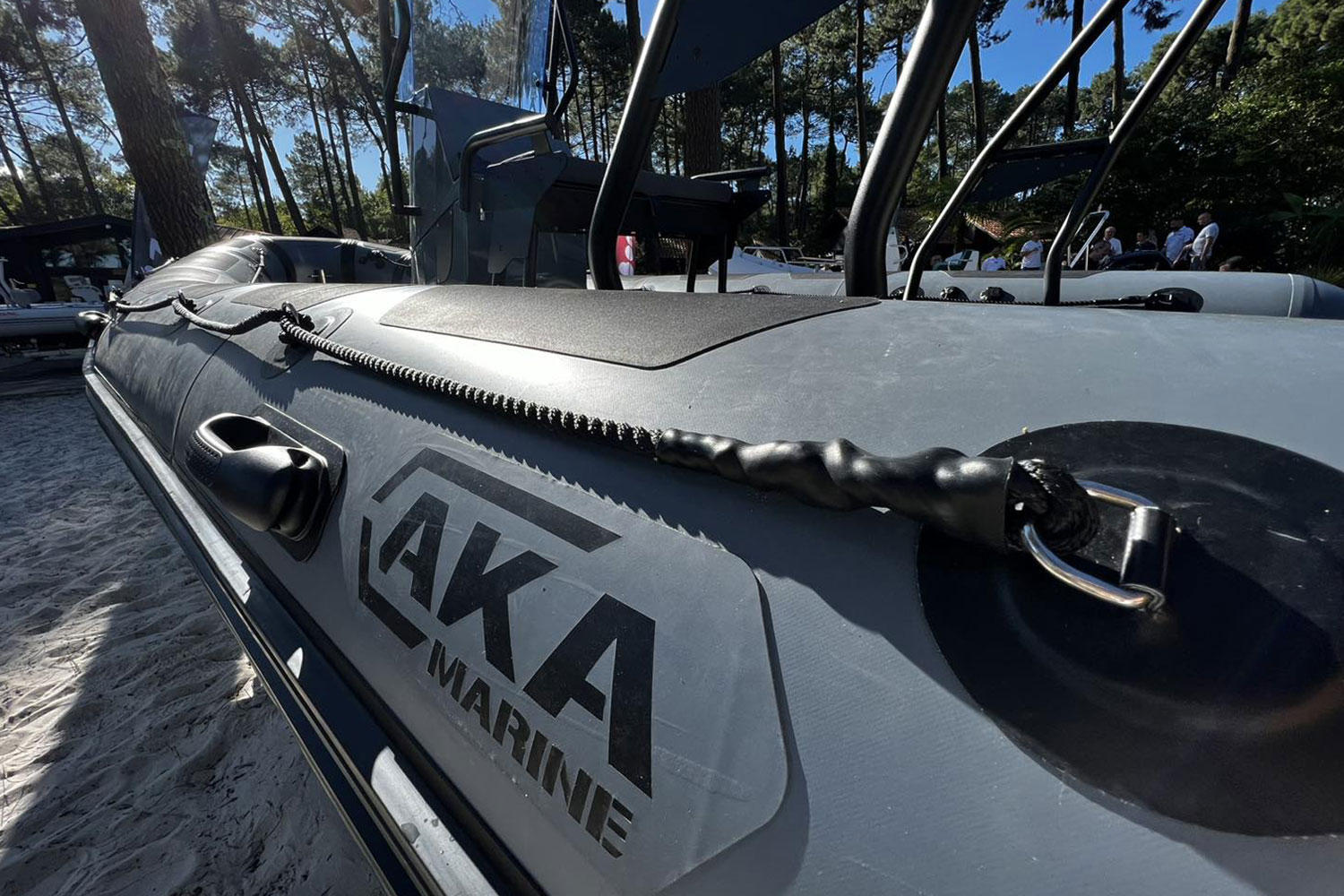

Buoyancy tube
- CSM-CR 1670 dtx fabric
- Removable tube system
- Anti-skid patches
- Heavy Duty, anti-chafing, bow fender system
- Polyester internal / external Grab line
- Leafield inflation valves
- Leafield pressure relief valves
- Extra Large profile rubbing strake (up to 270 mm)
- 4 external handles
- Reinforced cone ends
Hull
- Fibreglass deep V-shaped hull
- Moulded non-skid, self-bailing6 deck
- Bow anchor locker
- Stern technical compartment
- Bilge locker
- Bow D-ring
- Towing rings
- Lifting points
- Self-bailer
- Stern mooring cleats
- Stainless steel mooring bollard (100 mm)
Standard equipment
- Built-in fuel tank + fuel/water separator : 100 L
- Battery switch
- 1 Bilge pump
- 2 paddles
- Foot pump & pressure gauge
- Repair kit
- Owner’s manual
Optional accessories
- GRP Console Large
- GRP Console XLarge
- Double stainless steel bolster
- Single stainless steel bolster
- Jockey seat
- Roll-bar
- T-TOP
- Bow rail
- Tow post (bow/stern)
- Rope guard
- Diving cylinders holder
